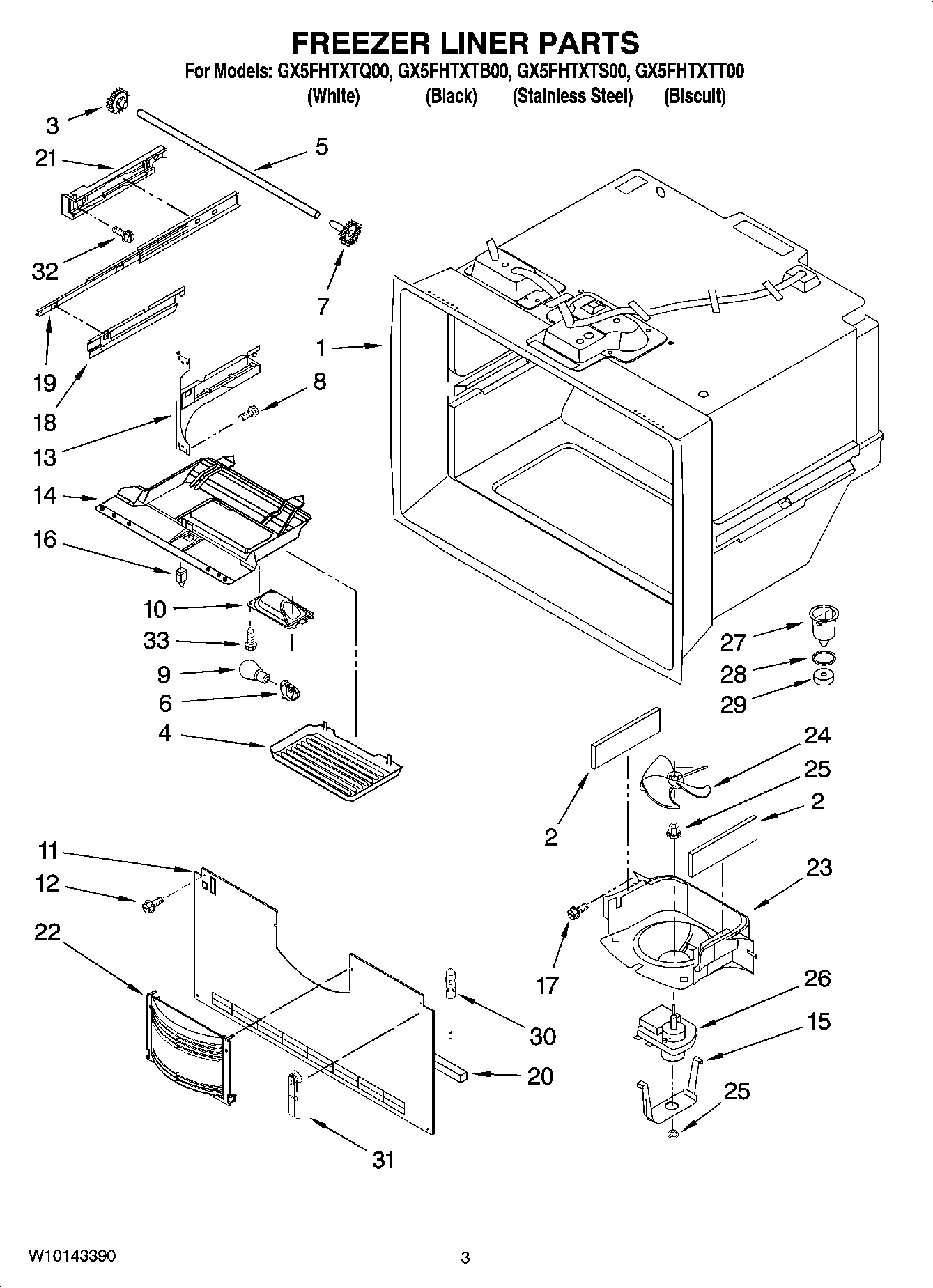

GX5FHTXTS00 02 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	W10856123 Whirlpool Refrigerator Gasket
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	Cover, Light
5	W11028221 Whirlpool Refrigerator Shaft
6	W11447232 Whirlpool Refrigerator Socket
8	WP98165 Whirlpool Screw
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Housing, Light
11	W11727809 Whirlpool Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13	Bracket, Door (Right)
13	Bracket, Door (Left)
14	67003906 Whirlpool Refrigerator Control Module
15	WP67005633 Whirlpool Refrigerator Bracket
16	W11396033 Whirlpool Refrigerator Rocker Switch
17	WP33001882 Whirlpool Screw
18	WPW10280608 Whirlpool Refrigerator Bracket
18	WPW10280613 Whirlpool Refrigerator Bracket
19	Slide, Drawer (2)
20	W11159728 Whirlpool Refrigerator Gasket
21	Bracket, Slide (Left)
21	Bracket, Slide (Right)
22	WPW10175909 Whirlpool Grille Assembly
23	Shroud, Evap.Fan
24	WP2169142 Whirlpool Fan Blade
25	WP67002780 Whirlpool Refrigerator Grommet
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	W10815413 Whirlpool Refrigerator Funnel
28	WPM0500703 Whirlpool Refrigerator O-Ring Seal
29	WPB8381501 Whirlpool Refrigerator Door Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	WP489474 Whirlpool Refrigerator Screw
33	W10709797 Whirlpool Refrigerator Screw
33	Harness, Damper Control
33	Following Parts Not Illustrated
