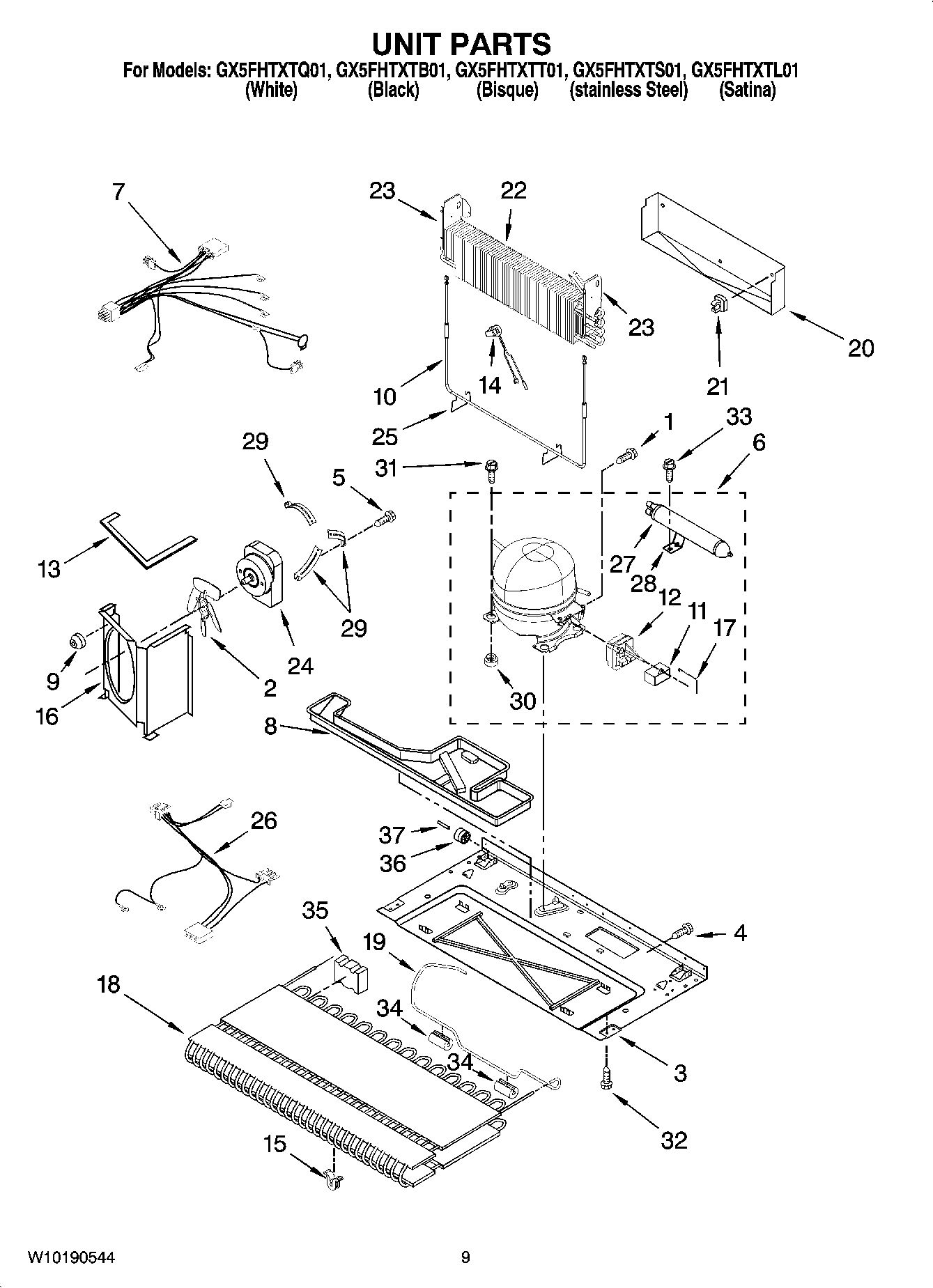

GX5FHTXTS01 05 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	WP67004954 Whirlpool Refrigerator Screw
6	W10160407 Whirlpool Refrigerator Compressor
7	Harness, Evap. Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67002493 Whirlpool Refrigerator Defrost Heater
12	W10613606 Whirlpool Refrigerator Start Device Relay Overload
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WPW10165425 Whirlpool Bimetal Defrost Thermostat
15	WPW10137529 Whirlpool Refrigerator Grommet
16	Shroud, Condenser
17	Clip, Capacitor
18	WP67006131 Whirlpool Refrigerator Condenser
19	WP12866903 Whirlpool Refrigerator Discharge Tube
20	W11547653 Whirlpool Refrigerator Drip Tray
21	CLIP, EVAP (2)
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit (Includes Cord)
27	WPB2150504 Whirlpool Refrigerator Dryer
28	10547003 Whirlpool Refrigerator Dryer Clip
29	WP67004953 Whirlpool Refrigerator Bracket
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	12846902 Whirlpool Refrigerator Screw
32	Screw (4)
33	WP33001882 Whirlpool Screw
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	Block, Condenser
36	WP67005149 Whirlpool Roller
37	67006434 Whirlpool Axle Pin
