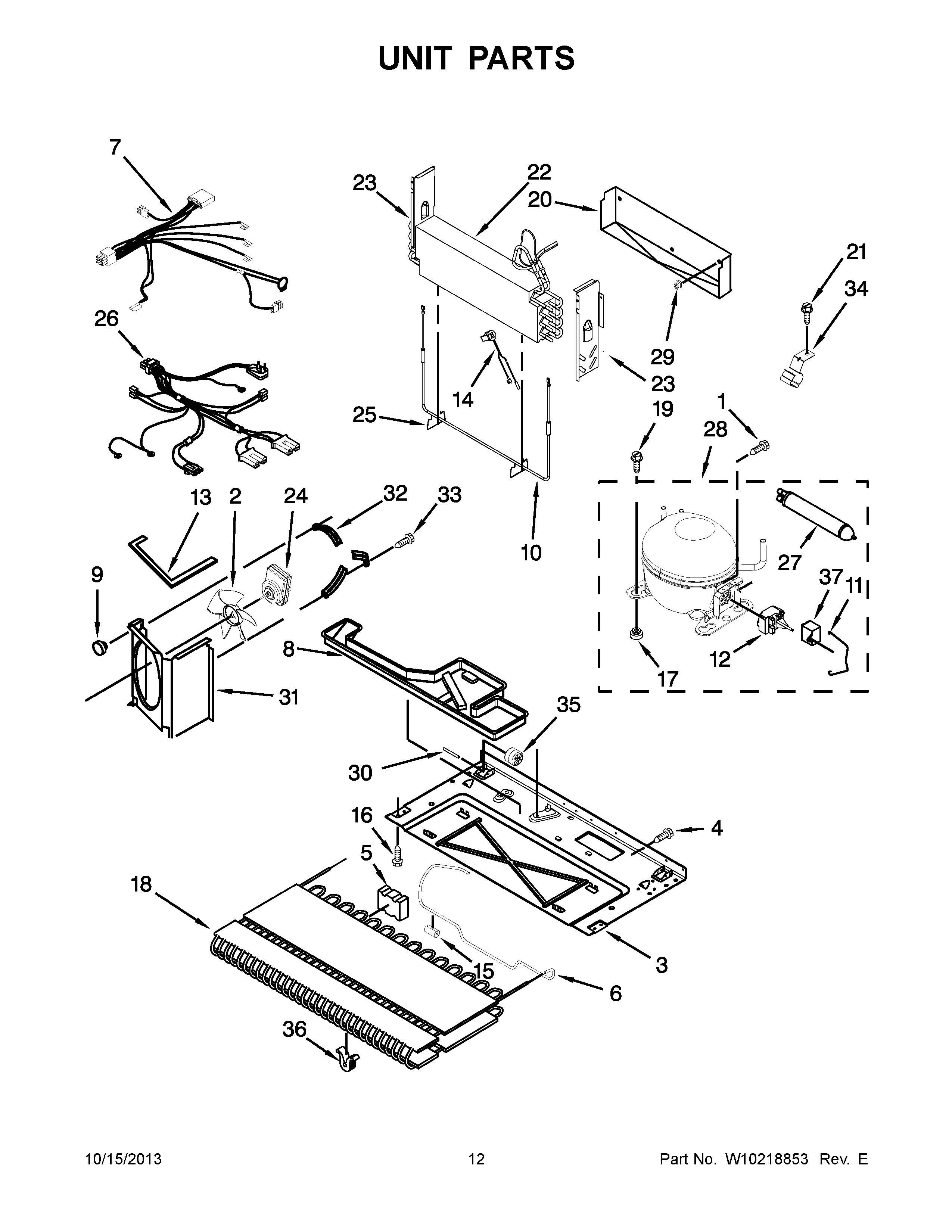

GX5FHTXVA00 07 – UNIT PARTS

GX5FHTXVA00 07 – UNIT PARTS

Written by

in

GX5FHTXVA00 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	W10156818 Whirlpool Refrigerator Fan Blade
3	Basepan
4	67006425 Whirlpool Refrigerator Screw
5	Block, Condenser
6	TUBE, DISCHARGE
7	Harness, Evap. Heater
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	Grommet (3)
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Clip, Retaining
12	WPW10197428 Whirlpool Start Device
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	WPW10165425 Whirlpool Bimetal Defrost Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WP67006131 Whirlpool Refrigerator Condenser
19	12846902 Whirlpool Refrigerator Screw
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Right Side)
23	Dam (Left Side)
24	Motor, Fan
25	W11673433 Whirlpool Clip
26	Harness, Unit (Includes Cord)
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	WP67004953 Whirlpool Refrigerator Bracket
33	WP67004954 Whirlpool Refrigerator Screw
34	10547003 Whirlpool Refrigerator Dryer Clip
35	WP67005149 Whirlpool Roller
36	WPW10137529 Whirlpool Refrigerator Grommet
37	WPW10662129 Whirlpool Refrigerator Run Capacitor
