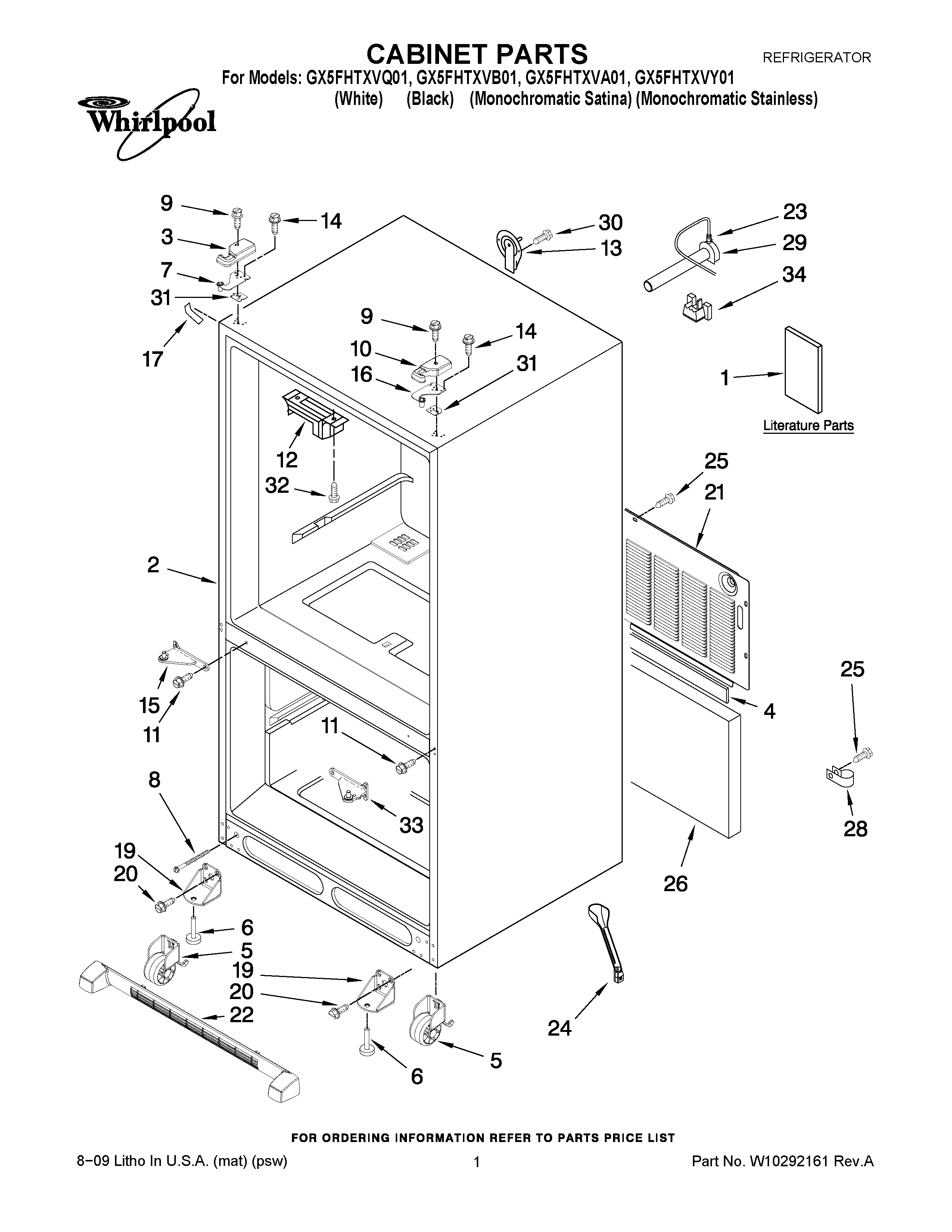

GX5FHTXVA01 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Energy Guide
1	Use & Care Guide
2	CABINET (NOT A SERVICEABLE PART)
3	WPW10337648 Whirlpool Refrigerator Cover
3	WPW10337634 Whirlpool Refrigerator Cover
3	W10337647 Whirlpool Refrigerator Cover
4	Gasket
5	ROLLER ASSY.(REAR)
6	W11177593 Whirlpool Leveling Feet
7	W11592375 Whirlpool Door Hinge
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
10	WP67005956 Whirlpool Refrigerator Cover
10	WPW10191117 Whirlpool Refrigerator Cover
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15	W10918113 Whirlpool Refrigerator Door Hinge
15	W10918164 Whirlpool Refrigerator Door Hinge
15	W10917988 Whirlpool Refrigerator Door Hinge
16	W11592374 Whirlpool Refrigerator Top Door Hinge
17	12587703W Whirlpool Refrigerator Cover
17	WP12587703AP Whirlpool Refrigerator Filler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
19	12906303WD Whirlpool Refrigerator Bracket
20	67006564 Whirlpool Refrigerator Screw
21	WPW10211855 Whirlpool Refrigerator Back Cover
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	WPM0114003 Whirlpool Microwave Speed Clip Clamp
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
28	W10833902 Whirlpool Refrigerator Clamp
29	W11176463 Whirlpool Refrigerator Water Tube
30	WP98165 Whirlpool Screw
31	12999502 Whirlpool Refrigerator Hinge Shim
31	12999501 Whirlpool Refrigerator Hinge Shim
32	WP7101P126-60 Whirlpool Screw
33	13000002WD Whirlpool Refrigerator Door Hinge
33	W10918168 Whirlpool Refrigerator Door Hinge
34	WP12777701 Whirlpool Refrigerator Filler Block
