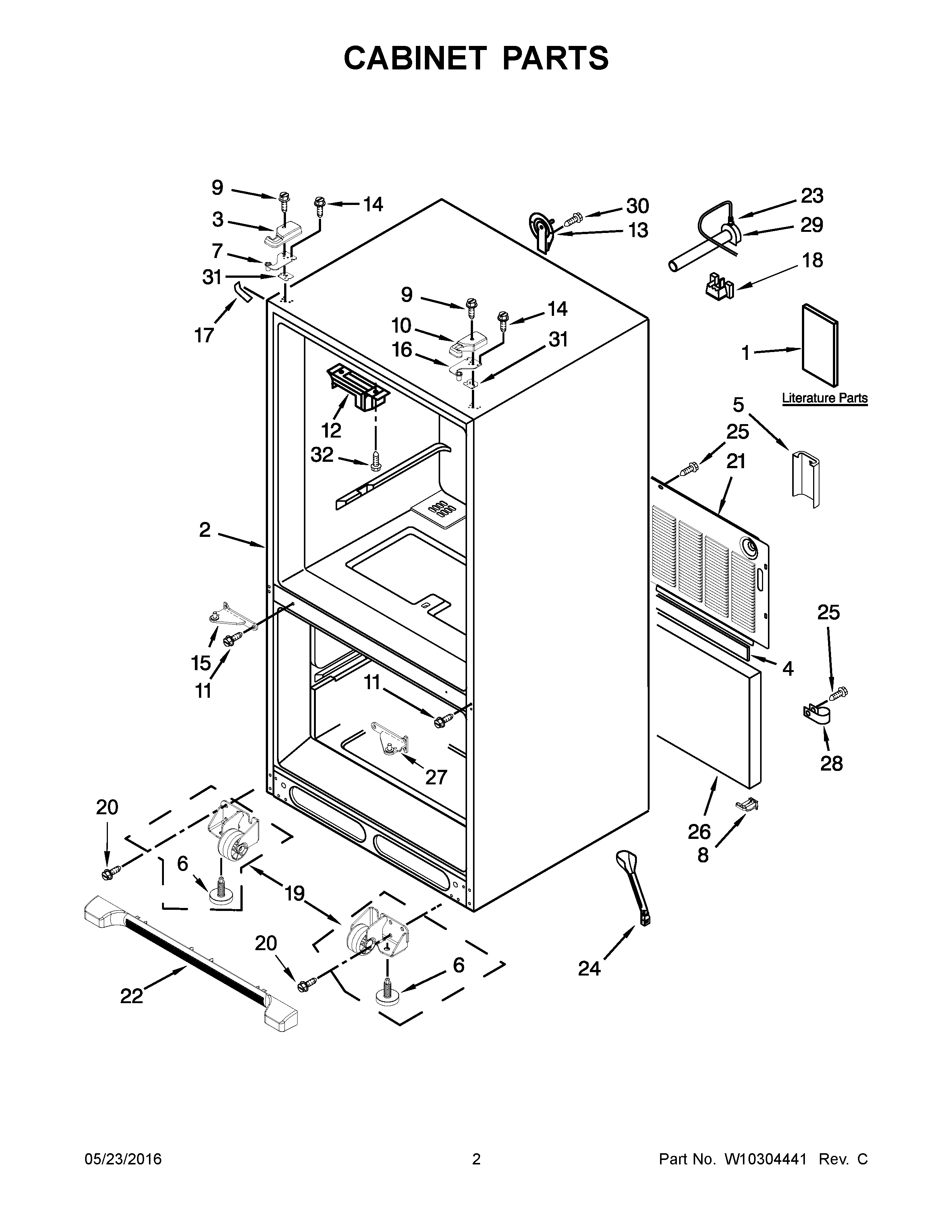

GX5FHTXVA02 02 – CABINET PARTS

GX5FHTXVA02 02 – CABINET PARTS

Written by

in

GX5FHTXVA02 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1AEnergy Guide
1Use & Care Guide
2CABINET (NOT A SERVICEABLE PART)
3WPW10337634 Whirlpool Refrigerator Cover
3AWPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
812831101 Whirlpool Refrigerator Tube Clamp
9WP8281196 Whirlpool Screw
10AWPW10191117 Whirlpool Refrigerator Cover
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15AW10917988 Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1712587703W Whirlpool Refrigerator Cover
17AWP12587703AP Whirlpool Refrigerator Filler
18WP12777701 Whirlpool Refrigerator Filler Block
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534154 Whirlpool Refrigerator Front Grille
22AWPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
2713000002WD Whirlpool Refrigerator Door Hinge
28W10833902 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
30WP98165 Whirlpool Screw
31A12999502 Whirlpool Refrigerator Hinge Shim
3112999501 Whirlpool Refrigerator Hinge Shim
32WP7101P126-60 Whirlpool Screw
