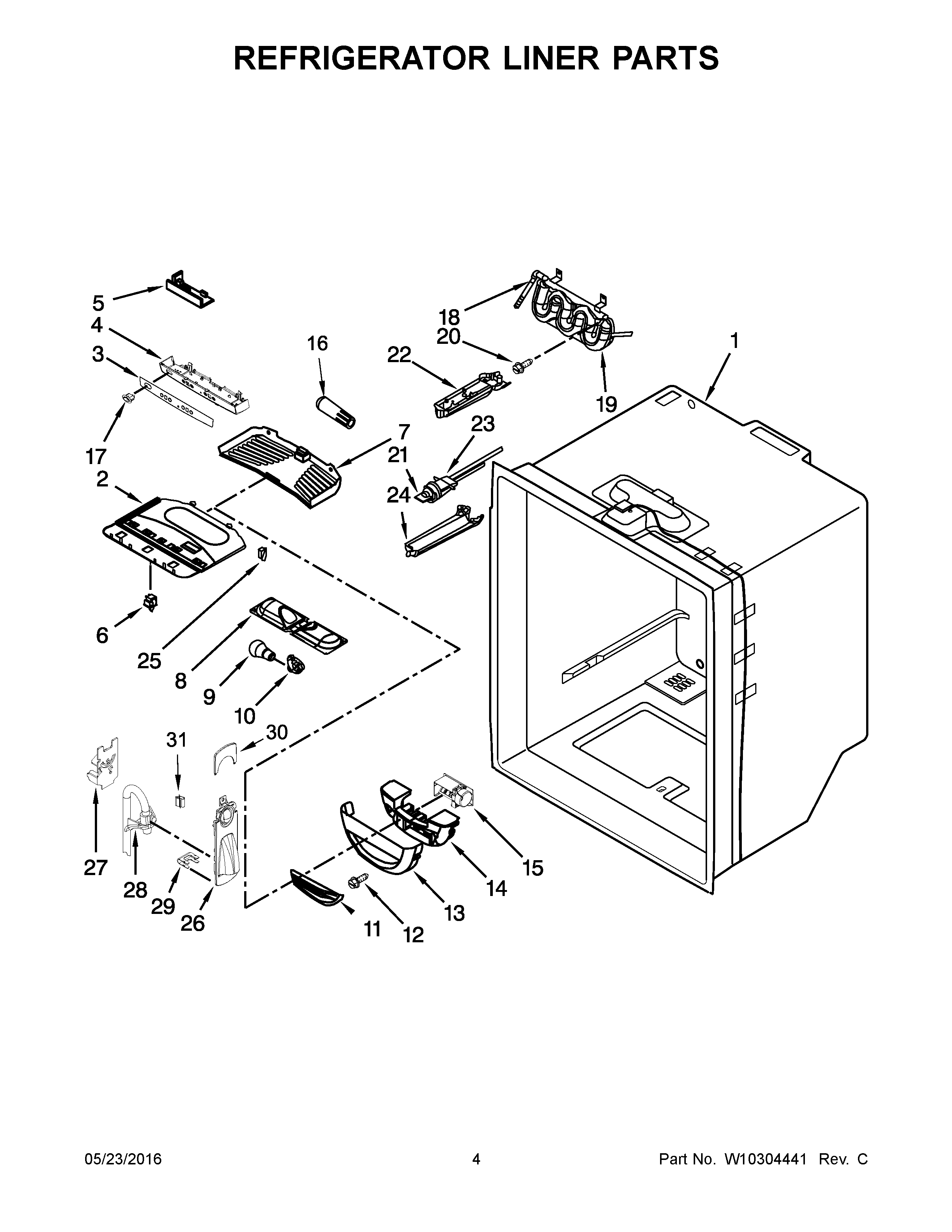

GX5FHTXVA02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP12868601 Whirlpool Refrigerator Wire Harness
2	MODULE, LIGHT
3	WPW10180451 Whirlpool Refrigerator Overlay
4	WP12806407 Whirlpool Refrigerator Housing
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10196393 Whirlpool Control Damper
16	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
17	W11478401 Whirlpool Refrigerator Housing
18	WP2300868 Whirlpool Refrigerator Fitting
19	W11229977 Whirlpool Refrigerator Reservoir
20	67006425 Whirlpool Refrigerator Screw
21	W11395888 Whirlpool Refrigerator Bypass Filter Cap
22	PLATE-FIL
23	W11346623 Whirlpool Refrigerator Water Filter Head
24	WP12568001 Whirlpool Filter Cover
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	FACADE, DISP.
27	12707303SP Whirlpool Refrigerator Plate
28	W11677725 Whirlpool Refrigerator Guide
29	67002816 Whirlpool Refrigerator Waterline Clip
30	W11519867 Whirlpool Refrigerator Cover
31	W10819546 Whirlpool Refrigerator Clip
