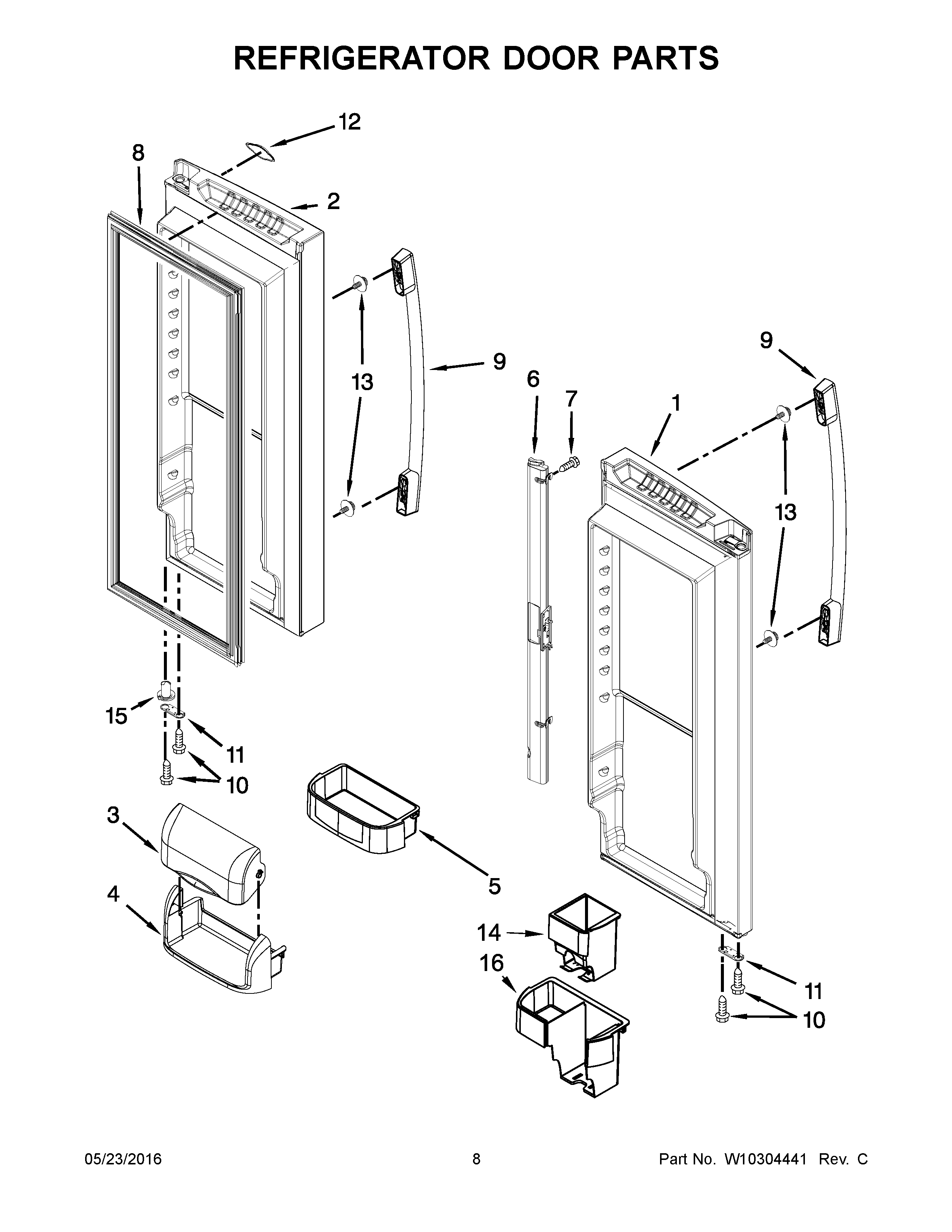

GX5FHTXVA02 05 – REFRIGERATOR DOOR PARTS

GX5FHTXVA02 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX5FHTXVA02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Left (White)
1ADOOR, LEFT (SATINA)
2Door, Right (White)
2ADOOR, RIGHT (SATINA)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5AWPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6AWP12722803AP Whirlpool Refrigerator Mullion Rail
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8W10830189 Whirlpool Refrigerator Door Gasket
8AGASKET-FIP
9AW11351147 Whirlpool Refrigerator Handle
9WPW10222984K Whirlpool Refrigerator Handle Assembly
10WP98165 Whirlpool Screw
11AW11703060 Whirlpool Door Stop
1112968202W Whirlpool Refrigerator Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14WPW10169346 Whirlpool Refrigerator Beverage Holder
15WP67003638 Whirlpool Closing Cam
15AWP12028505AP Whirlpool Closing Cam
16WP13005401SP Whirlpool Can Rack
