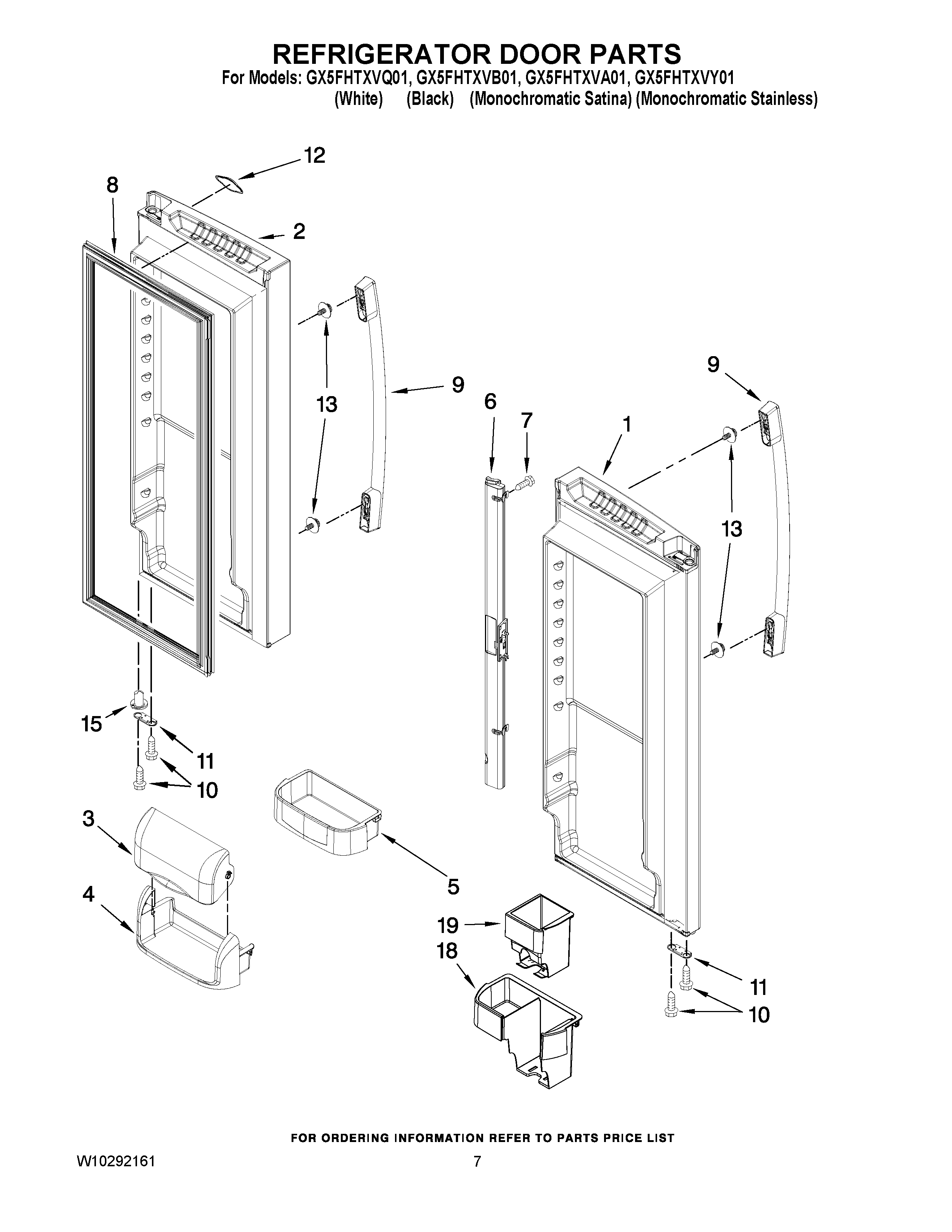

GX5FHTXVB01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (BLACK)
1	DOOR, LEFT (STAINLESS)
1	Door, Left (White)
1	DOOR, LEFT (SATINA)
2	DOOR, RIGHT (SATINA)
2	DOOR, RIGHT (STAINLESS)
2	DOOR, RIGHT (BLACK)
2	Door, Right (White)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP12722803B Whirlpool Door Guide
6	RAIL-MULLN WHITE
6	WP12722803AP Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	W11351147 Whirlpool Refrigerator Handle
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351146 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	W11708403 Whirlpool Door Stop
11	W11703060 Whirlpool Door Stop
11	12968202W Whirlpool Refrigerator Door Stop
12	Nameplate
13	WP12992902 Whirlpool Refrigerator Screw
15	WP67003639 Whirlpool Refrigerator Closer
15	WP67003638 Whirlpool Closing Cam
15	WP12028505AP Whirlpool Closing Cam
18	WP13005401SP Whirlpool Can Rack
19	WPW10169346 Whirlpool Refrigerator Beverage Holder
