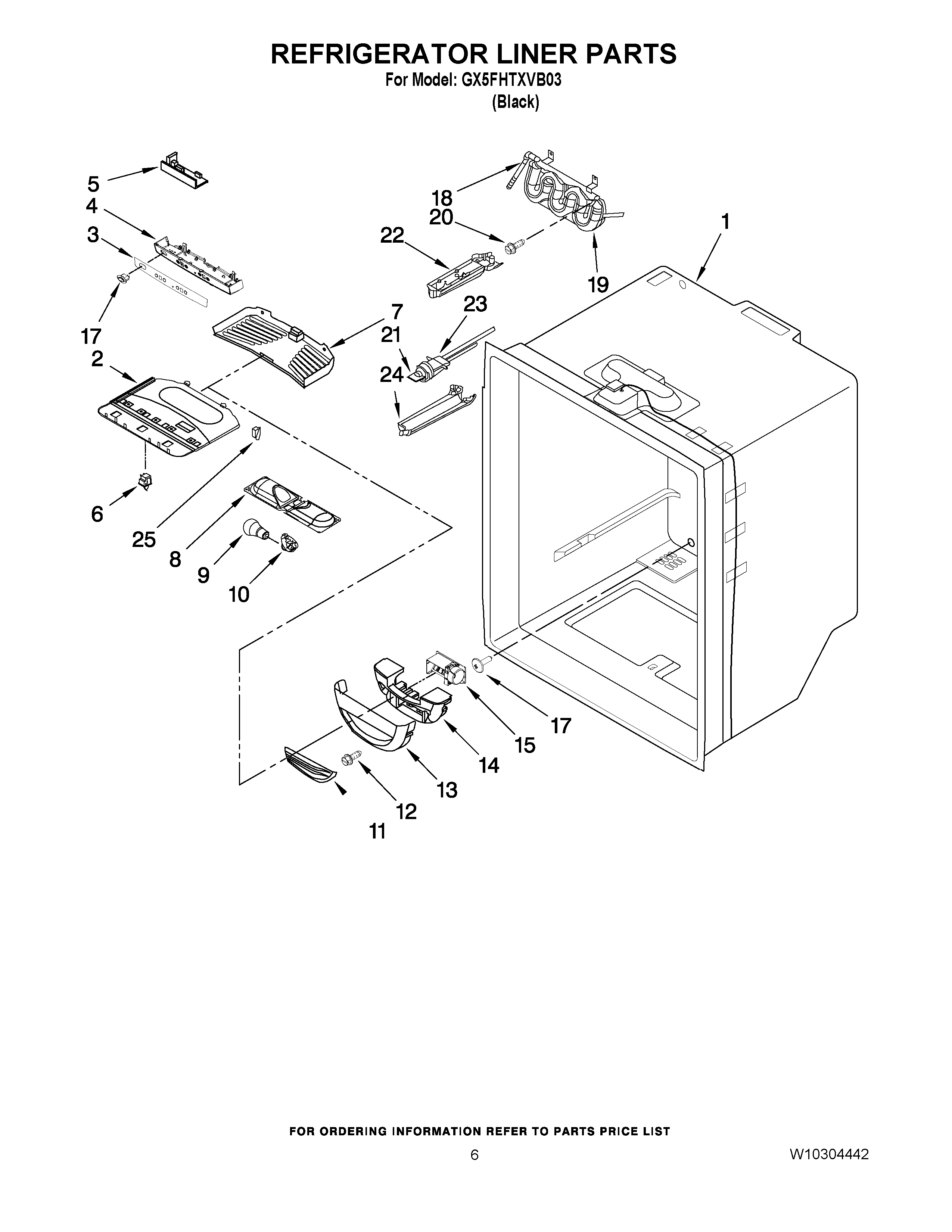

GX5FHTXVB03 04 – REFRIGERATOR LINER PARTS
Written by
in
GX5FHTXVB03 04 – REFRIGERATOR LINER PARTS
Products
Position
Product
NI
WP12868601 Whirlpool Refrigerator Wire Harness
1
CABINET (NOT A SERVICEABLE PART)
2
MODULE, LIGHT
3
WPW10180451 Whirlpool Refrigerator Overlay
4
WP12806407 Whirlpool Refrigerator Housing
5
WPW10503278 Whirlpool Refrigerator Electronic Control Board
6
W11384469 Whirlpool Door Switch
7
W11284721 Whirlpool Refrigerator Cover
8
12806601 Whirlpool Refrigerator Light Housing
9
W11679940 Whirlpool Refrigerator Light Bulb Assembly
10
W11447232 Whirlpool Refrigerator Socket
11
67003900 Whirlpool Refrigerator Insert Damper Cover
12
WP400021-1 Whirlpool Screw
13
WP12806701 Whirlpool Refrigerator Box Cover
14
INSULATION
15
WPW10196393 Whirlpool Control Damper
17
W11478401 Whirlpool Refrigerator Housing
18
WP2300868 Whirlpool Refrigerator Fitting
19
W11361728 Whirlpool Reservoir Assembly
20
67006425 Whirlpool Refrigerator Screw
21
W11395888 Whirlpool Refrigerator Bypass Filter Cap
22
PLATE-FIL
23
W11346623 Whirlpool Refrigerator Water Filter Head
24
WP12568001 Whirlpool Filter Cover
25
WP12575501 Whirlpool Refrigerator Micro Switch
←
