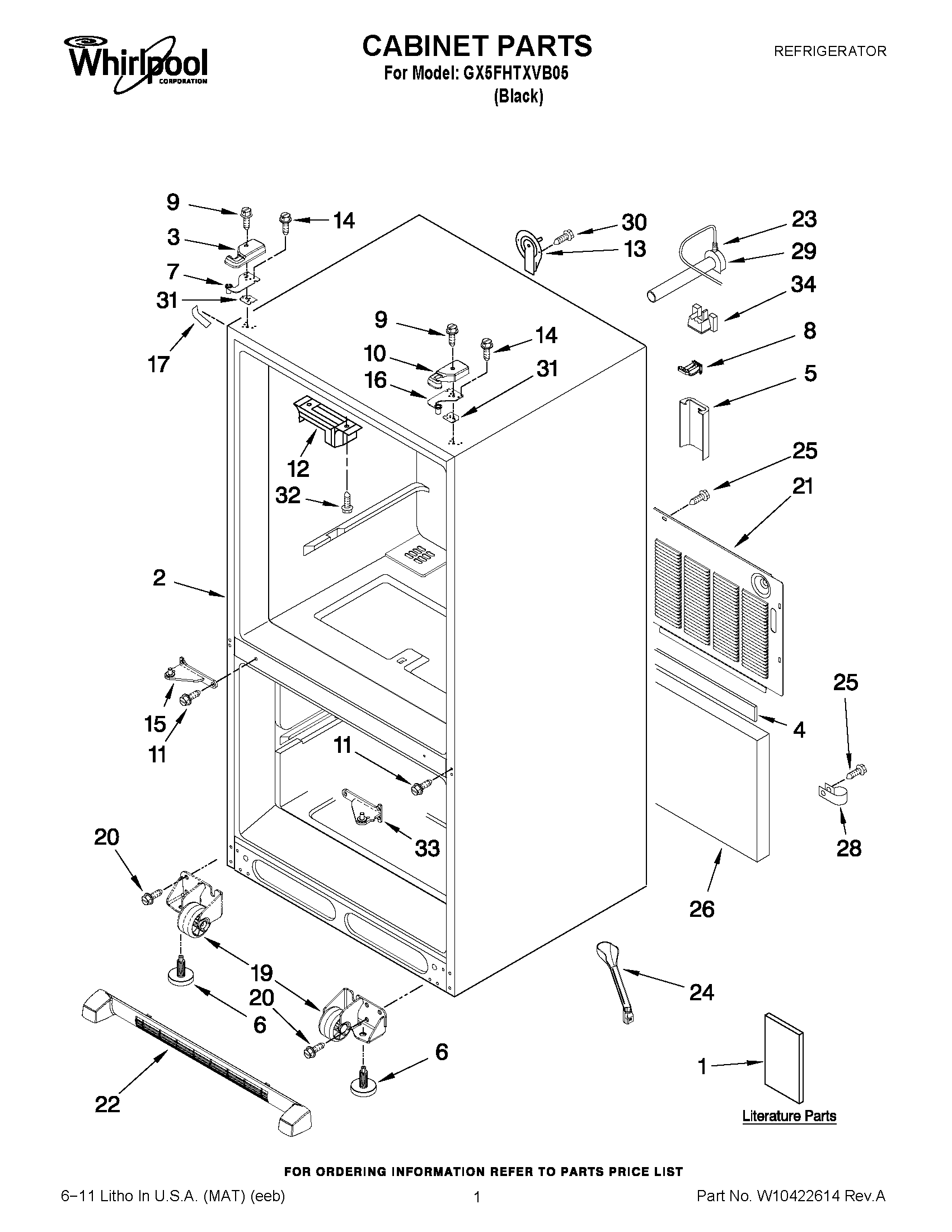

GX5FHTXVB05 01 – CABINET PARTS

GX5FHTXVB05 01 – CABINET PARTS

Written by

in

GX5FHTXVB05 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1Energy Guide
2CABINET (NOT A SERVICEABLE PART)
3W10337647 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
812831101 Whirlpool Refrigerator Tube Clamp
9WP8281196 Whirlpool Screw
10WP67005956 Whirlpool Refrigerator Cover
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10918164 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23WPM0114003 Whirlpool Microwave Speed Clip Clamp
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
28W10833902 Whirlpool Refrigerator Clamp
29W11176463 Whirlpool Refrigerator Water Tube
30WP98165 Whirlpool Screw
3112999501 Whirlpool Refrigerator Hinge Shim
3112999502 Whirlpool Refrigerator Hinge Shim
32WP7101P126-60 Whirlpool Screw
33W10918168 Whirlpool Refrigerator Door Hinge
34WP12777701 Whirlpool Refrigerator Filler Block
