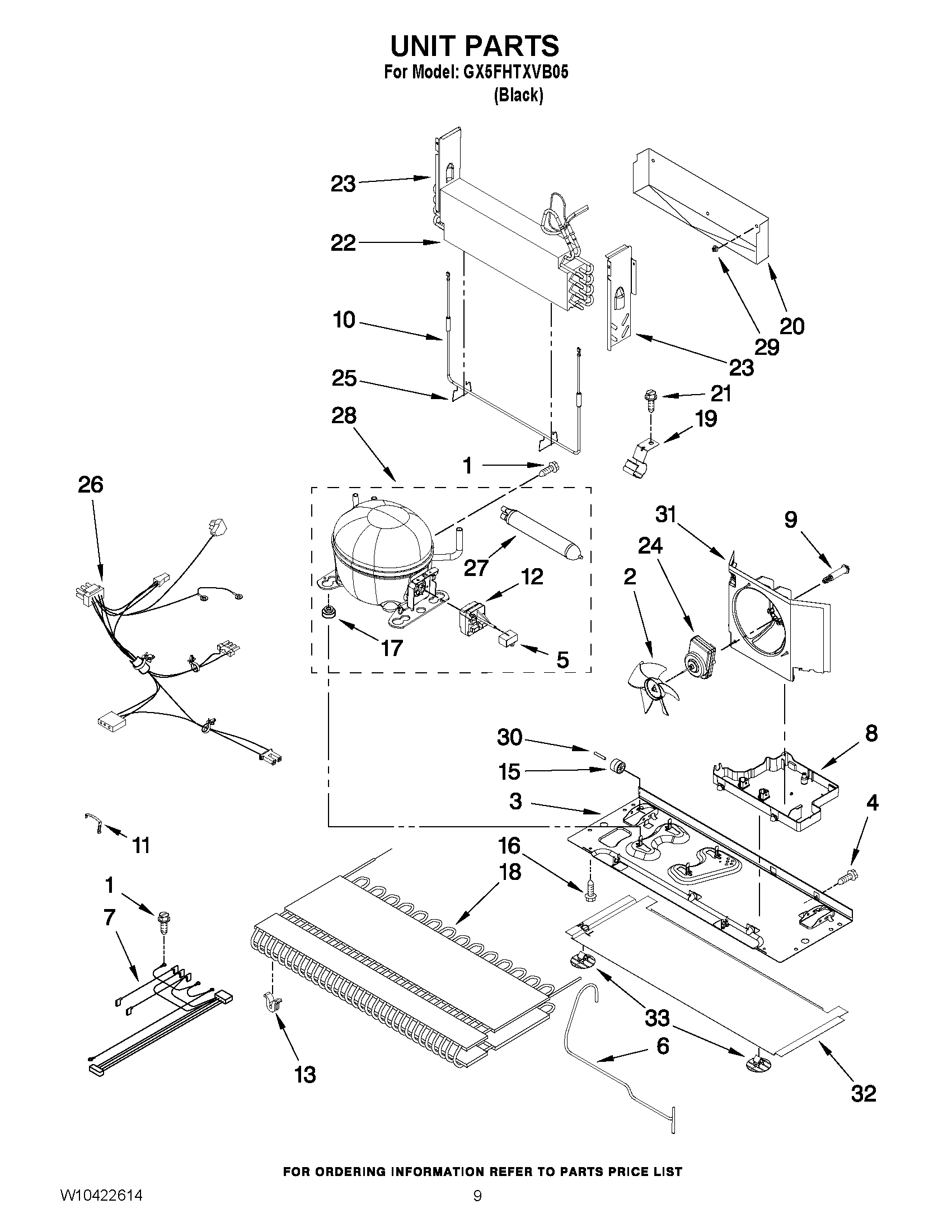

GX5FHTXVB05 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	WPW10662129 Whirlpool Refrigerator Run Capacitor
6	WPW10233569 Whirlpool Refrigerator Tube
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W10825088 Whirlpool Refrigerator Defrost Heater W10836434
11	W11092534 Whirlpool Refrigerator Clip
12	W10361443 Whirlpool Refrigerator Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11256565 Whirlpool Refrigerator Evaporator
23	Dam (Right Side)
23	Dam (Left Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	WPW10679216 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10233960 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	EXTENSION-BASEPAN
33	W10206339 Whirlpool Fastener
