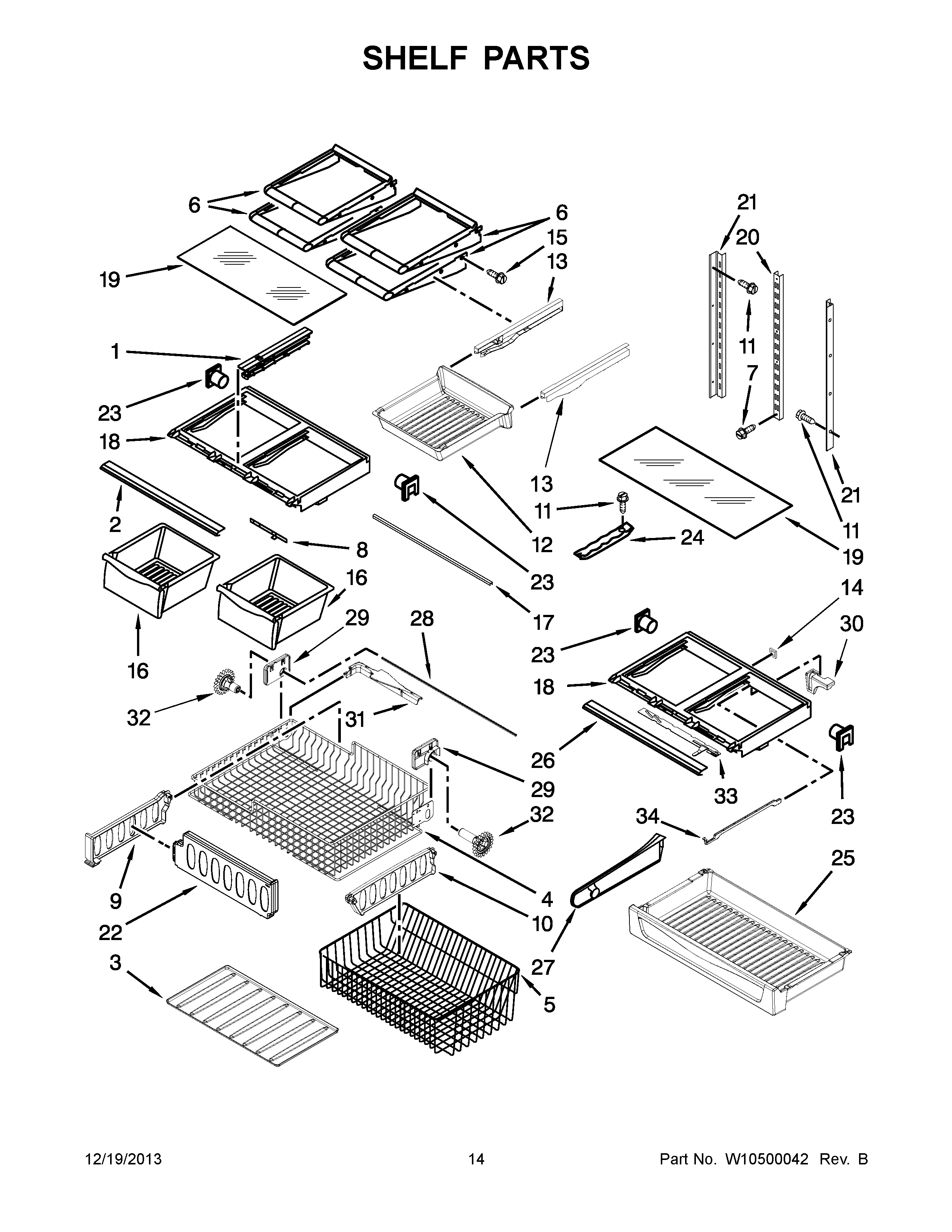

GX5FHTXVB07 08 – SHELF PARTS

Products

Position	Product
1	WPW10326469 Whirlpool Drawer Slide Rail
2	TRIM, CRISPER
3	WP67006104 Whirlpool Refrigerator Tray
4	WPW10348246 Whirlpool Refrigerator Freezer Basket
5	BASKET, FREEZER (LOWER)
6	SHELF, GLIDE (2)
7	W10215666 Whirlpool Refrigerator Screw
8	SLIDE
9	W10241046 Whirlpool Refrigerator Divider
10	W10847995 Whirlpool Divider Assembly
11	67006425 Whirlpool Refrigerator Screw
13	WP67001054 Whirlpool Left Glide
13	WP67001053 Whirlpool Drawer Glide
14	GASKET, PANTRY
15	SCREW
16	WP67004515 Whirlpool Crisper Drawer
17	WP12642303WD Whirlpool Refrigerator Drawer Support
18	WPW10329866 Whirlpool Frame
19	WP67006704 Whirlpool Glass Crisper Cover
20	W10273463 Whirlpool Refrigerator Ladder
21	W10251969 Whirlpool Refrigerator Ladder
22	W10171558 Whirlpool Refrigerator Divider
23	WP13062602 Whirlpool Refrigerator Support
24	WP67001719 Whirlpool Refrigerator Track
25	DRAWER, PANTRY
26	W10231336 Whirlpool Refrigerator Shelf Trim
27	67004556 Whirlpool Refrigerator Pantry Divider
28	W11173556 Whirlpool Refrigerator Shaft
29	W10348259 Whirlpool Refrigerator Bracket Assembly
29	W10348260 Whirlpool Refrigerator Bracket
30	WP12531601 Whirlpool Refrigerator Tunnel
31	W10149389 Whirlpool Refrigerator Handle
32	WPW10474715 Whirlpool Refrigerator Gear
32	WPW10474716 Whirlpool Refrigerator Gear
33	SLIDE, PANTRY
34	12531402 Whirlpool Refrigerator Bar
