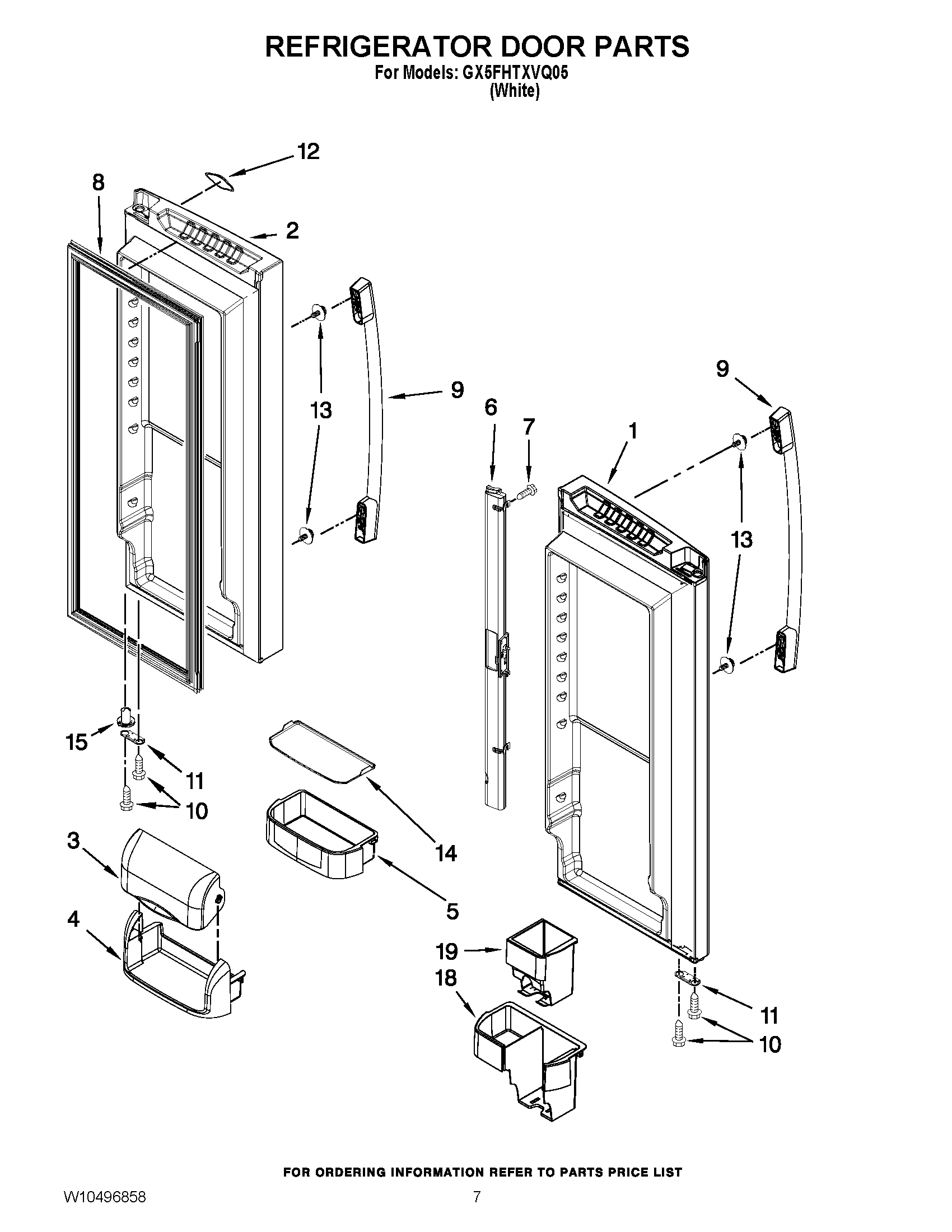

GX5FHTXVQ05 05 – REFRIGERATOR DOOR PARTS

GX5FHTXVQ05 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX5FHTXVQ05 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (WHITE)
213107855WQ Whirlpool Refrigerator White FIP Door
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8W10830189 Whirlpool Refrigerator Door Gasket
9WPW10222984K Whirlpool Refrigerator Handle Assembly
10WP98165 Whirlpool Screw
1112968202W Whirlpool Refrigerator Door Stop
12WPW10391355 Whirlpool Refrigerator Nameplate
13WPW10288153 Whirlpool Refrigerator Screw
14GRIPPER-BUCKET
15WP67003638 Whirlpool Closing Cam
18WP13005401SP Whirlpool Can Rack
19WPW10169346 Whirlpool Refrigerator Beverage Holder
