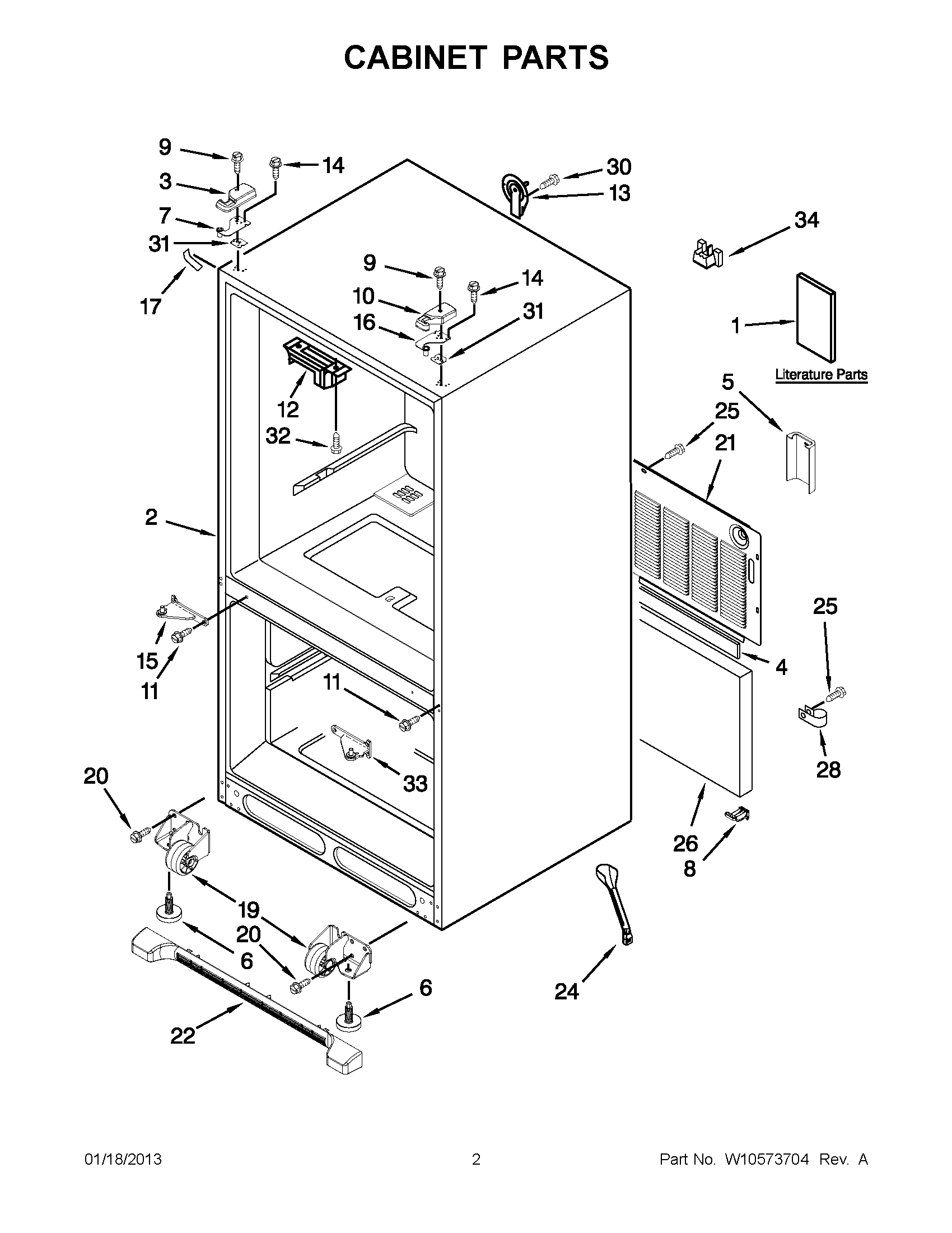

GX5FHTXVQ07 01 – CABINET PARTS

GX5FHTXVQ07 01 – CABINET PARTS

Written by

in

GX5FHTXVQ07 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1Energy Guide
1TECH SHEET
3WPW10337634 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10CABINET (NOT A SERVICEABLE PART)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10918113 Whirlpool Refrigerator Door Hinge
16W11592374 Whirlpool Refrigerator Top Door Hinge
1712587703W Whirlpool Refrigerator Cover
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534154 Whirlpool Refrigerator Front Grille
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
28W11456069 Whirlpool Refrigerator Clamp
30WP98165 Whirlpool Screw
3112999502 Whirlpool Refrigerator Hinge Shim
3112999501 Whirlpool Refrigerator Hinge Shim
32SCREW
3313000002WD Whirlpool Refrigerator Door Hinge
3467005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
34WP12777701 Whirlpool Refrigerator Filler Block
