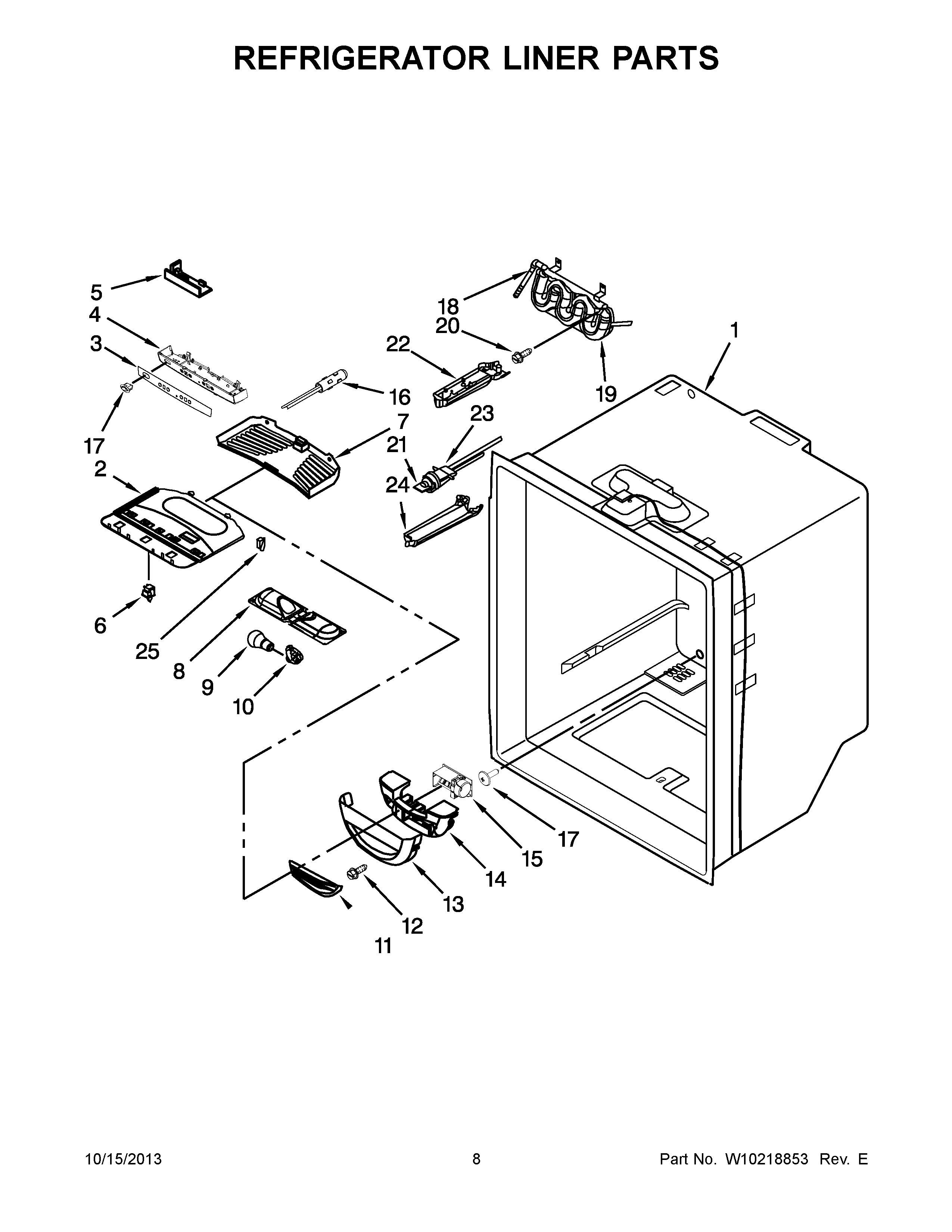

GX5FHTXVY00 05 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP12868601 Whirlpool Refrigerator Wire Harness
2	Module, Light
3	WPW10180451 Whirlpool Refrigerator Overlay
4	WP12806407 Whirlpool Refrigerator Housing
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10196393 Whirlpool Control Damper
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	W11478401 Whirlpool Refrigerator Housing
18	WP2300868 Whirlpool Refrigerator Fitting
19	W11361728 Whirlpool Reservoir Assembly
20	67006425 Whirlpool Refrigerator Screw
21	Plug, Bypass
22	PLATE-FIL
23	WP67006524 Whirlpool Refrigerator Housing
24	WP12568001 Whirlpool Filter Cover
25	WP12575501 Whirlpool Refrigerator Micro Switch
