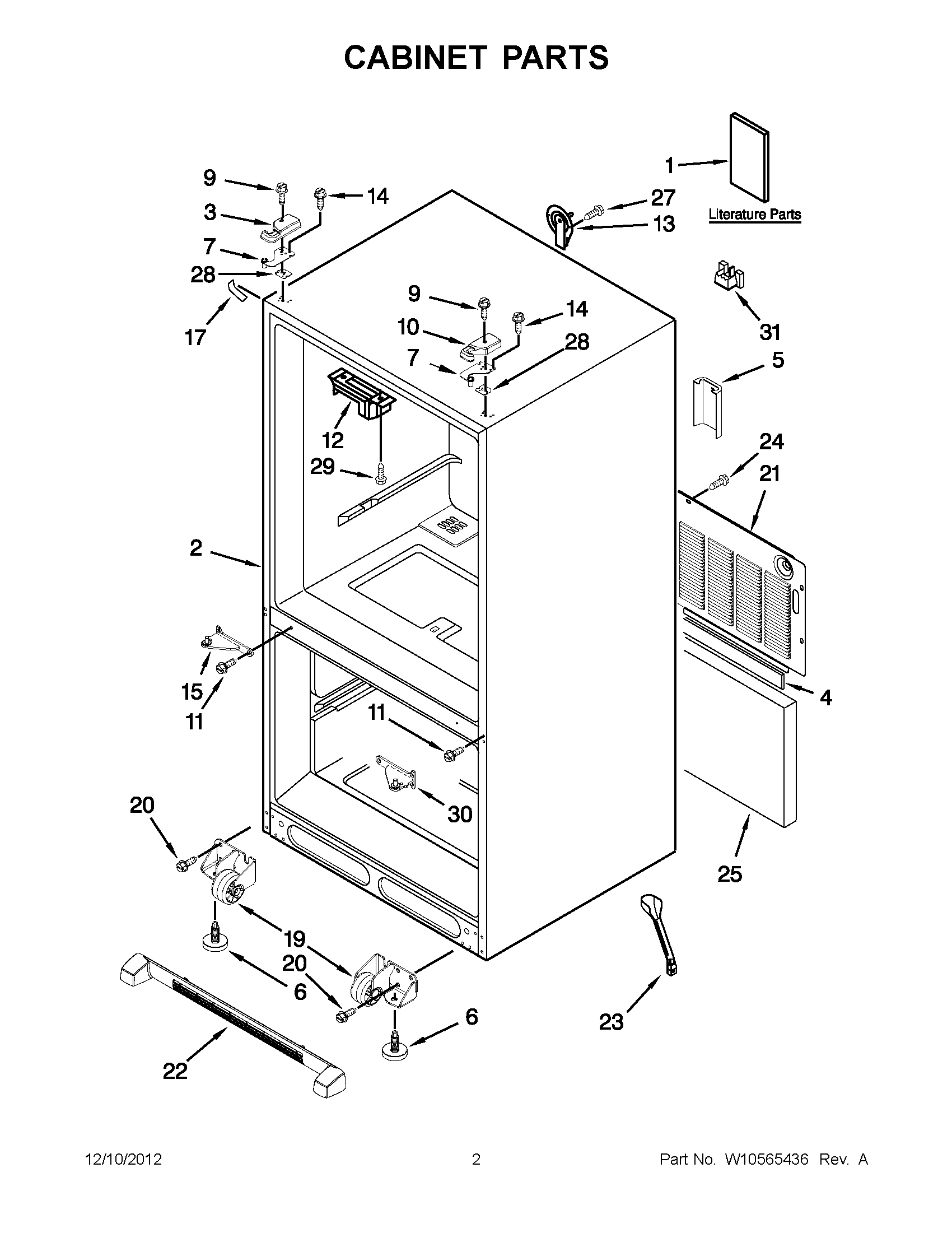

GX5FHTXVY010 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1Energy Guide
1TECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4B5759655 Whirlpool Refrigerator Gasket
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592374 Whirlpool Refrigerator Top Door Hinge
7W11592375 Whirlpool Door Hinge
9WP8281196 Whirlpool Screw
10WPW10191117 Whirlpool Refrigerator Cover
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10917988 Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10619951 Whirlpool Drain Tube with Grommet
2467006425 Whirlpool Refrigerator Screw
25INSULATION, SOUND
27WP98165 Whirlpool Screw
2812999502 Whirlpool Refrigerator Hinge Shim
2812999501 Whirlpool Refrigerator Hinge Shim
29W10854958 Whirlpool Refrigerator Screw
31WP12777701 Whirlpool Refrigerator Filler Block
