GX5FHTXVY010 05 – REFRIGERATOR DOOR

GX5FHTXVY010 05 – REFRIGERATOR DOOR

Written by

in

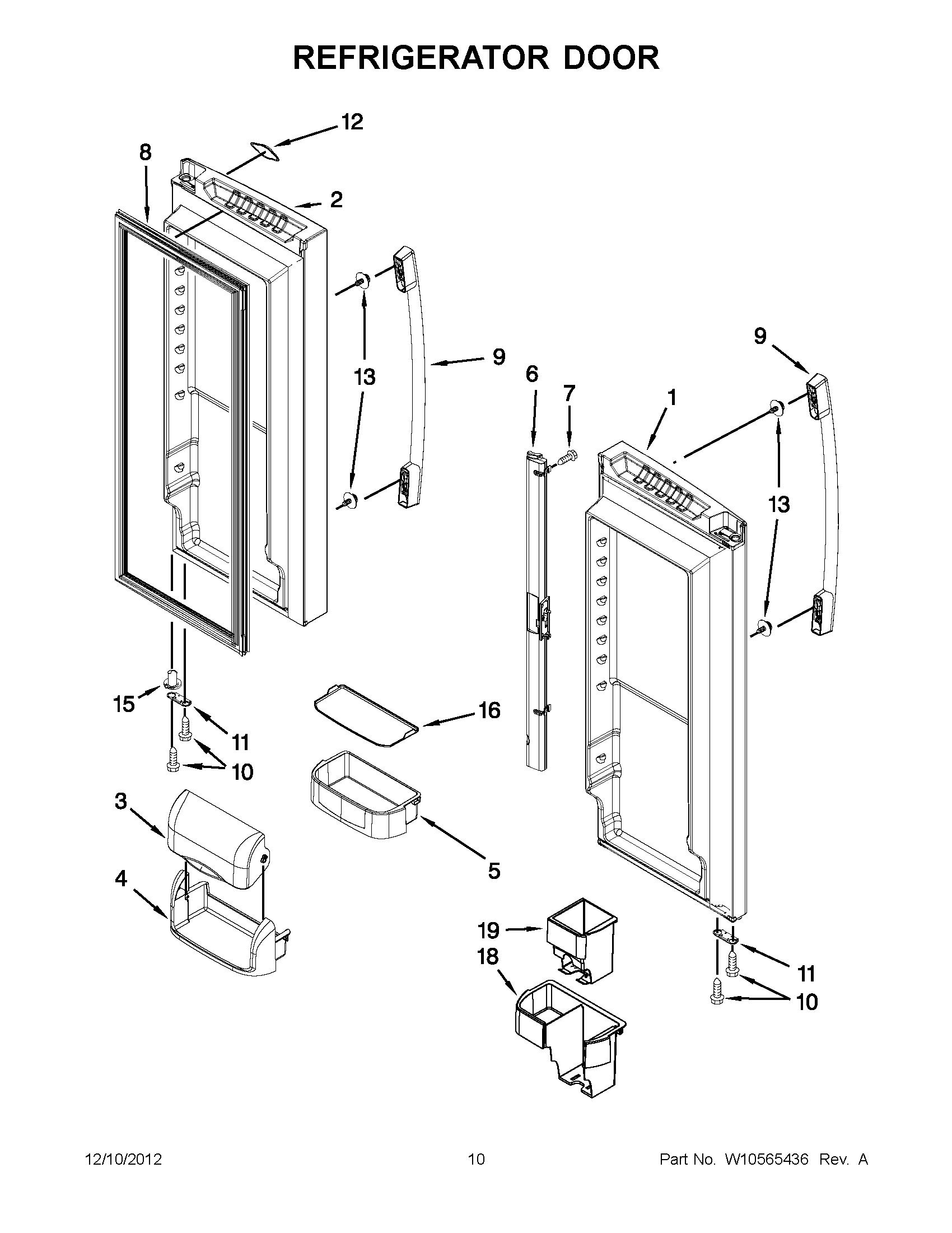

GX5FHTXVY010 05 – REFRIGERATOR DOOR

Products

PositionProduct
113107881SQ Whirlpool Refrigerator DOR-FIP SS
213107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12WPW10393265 Whirlpool Refrigerator Nameplate
13WPW10288153 Whirlpool Refrigerator Screw
15WP12028505AP Whirlpool Closing Cam
16GRIPPER, GALLON
18WP13005401SP Whirlpool Can Rack
19WPW10169346 Whirlpool Refrigerator Beverage Holder
