GX5FHTXVY04 05 – REFRIGERATOR DOOR PARTS
Written by
in

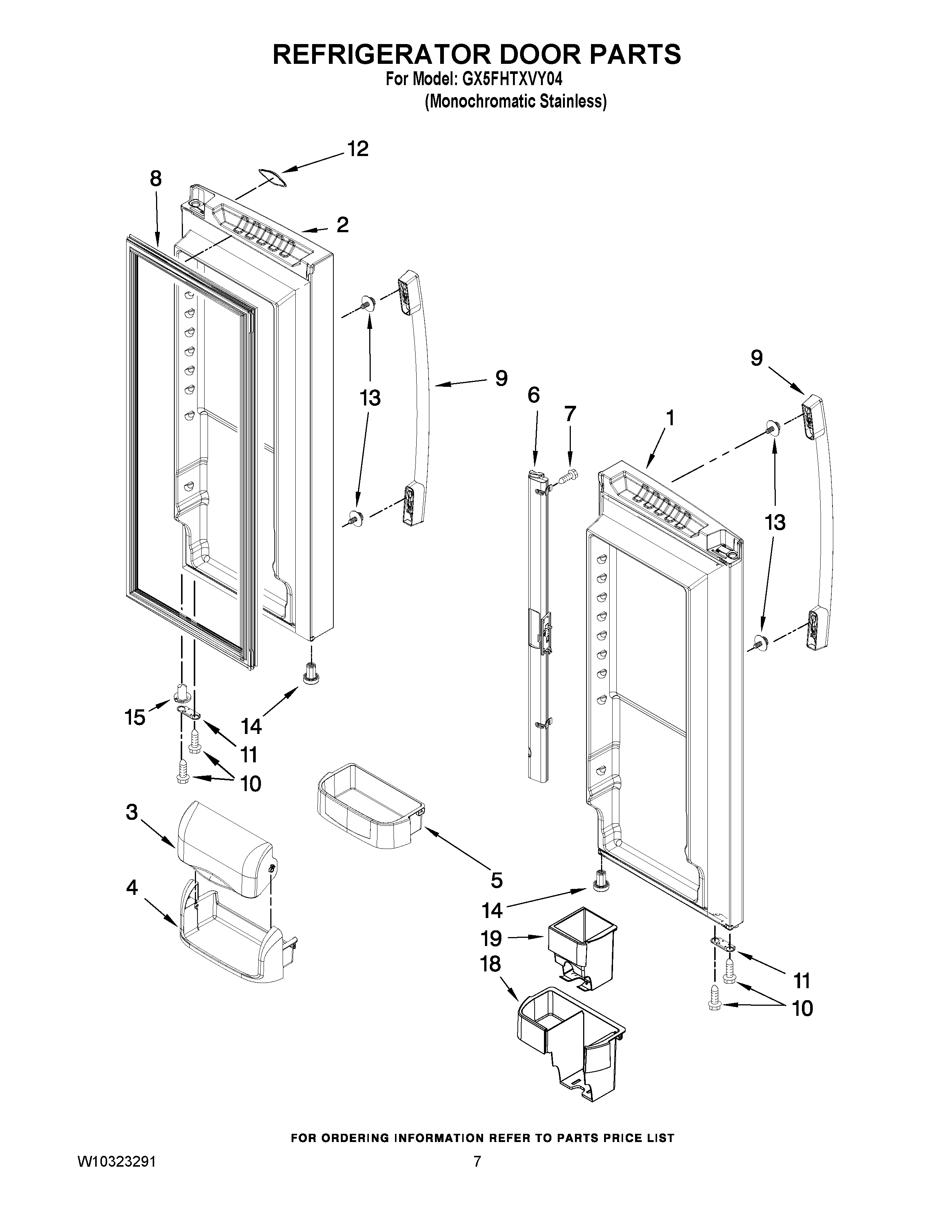

GX5FHTXVY04 05 – REFRIGERATOR DOOR PARTS
Products
Position
Product
1
DOOR, LEFT (STAINLESS)
2
DOOR, RIGHT (STAINLESS)
3
WP67003637 Whirlpool Dairy Door
4
WP67001279 Whirlpool Refrigerator Dairy Tray
5
WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5
WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6
WP12722803AP Whirlpool Refrigerator Mullion Rail
7
W11311945 Whirlpool Refrigerator Screw
8
GASKET-FIP
9
W11351147 Whirlpool Refrigerator Handle
10
WP98165 Whirlpool Screw
11
W11703060 Whirlpool Door Stop
12
Nameplate
13
WP12992902 Whirlpool Refrigerator Screw
14
W10853652 Whirlpool Refrigerator Hinge Bushing
14
BUSHING, DOOR (BOTTOM LEFT)
15
WP12028505AP Whirlpool Closing Cam
18
WP13005401SP Whirlpool Can Rack
19
WPW10169346 Whirlpool Refrigerator Beverage Holder
←
