GX5FHTXVY07 06 – REFRIGERATOR DOOR PARTS

GX5FHTXVY07 06 – REFRIGERATOR DOOR PARTS

Written by

in

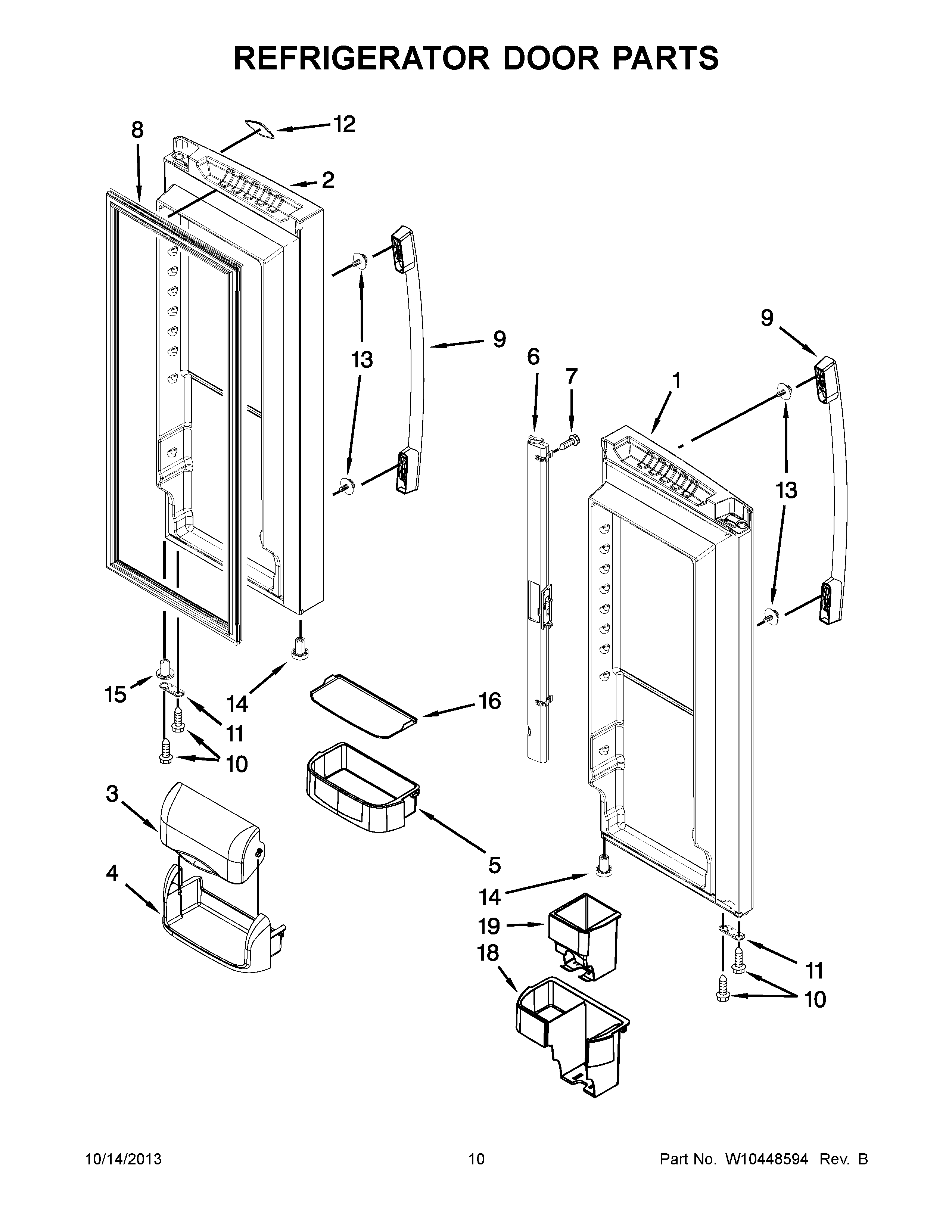

GX5FHTXVY07 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
14BUSHING, DOOR (BOTTOM LEFT)
14W10853652 Whirlpool Refrigerator Hinge Bushing
15WP12028505AP Whirlpool Closing Cam
16GRIPPER-BUCKET
18WPW10169346 Whirlpool Refrigerator Beverage Holder
19WP13005401SP Whirlpool Can Rack
