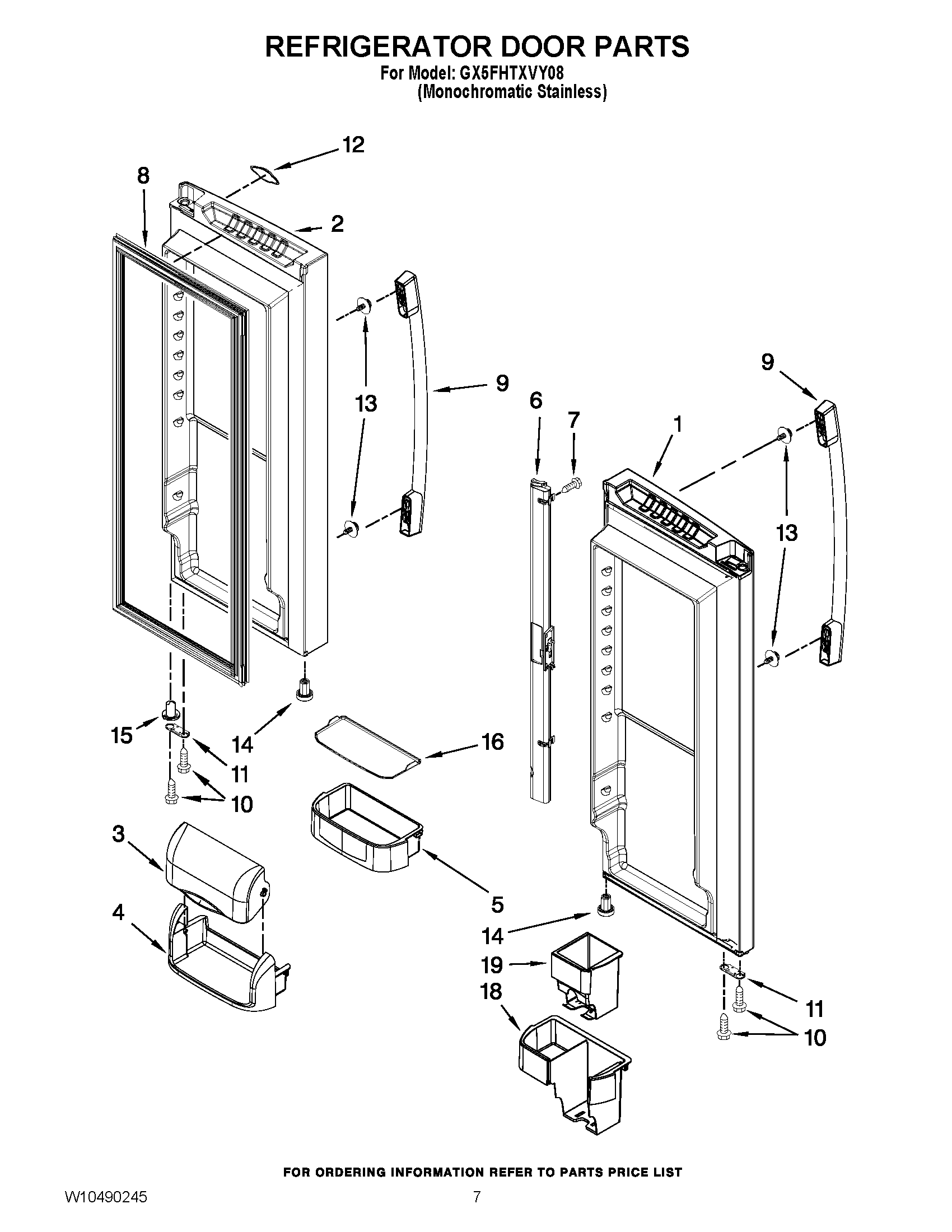

GX5FHTXVY08 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107852SQ Whirlpool Refrigerator DOR-FIP SS
2	13107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6	WP12722803AP Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	GASKET-FIP
9	W11351147 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	W11703060 Whirlpool Door Stop
12	WPW10393265 Whirlpool Refrigerator Nameplate
13	WPW10288153 Whirlpool Refrigerator Screw
14	BUSHING, DOOR (BOTTOM LEFT)
14	W10853652 Whirlpool Refrigerator Hinge Bushing
15	WP12028505AP Whirlpool Closing Cam
16	GRIPPER-BUCKET
18	WP13005401SP Whirlpool Can Rack
19	WPW10169346 Whirlpool Refrigerator Beverage Holder
