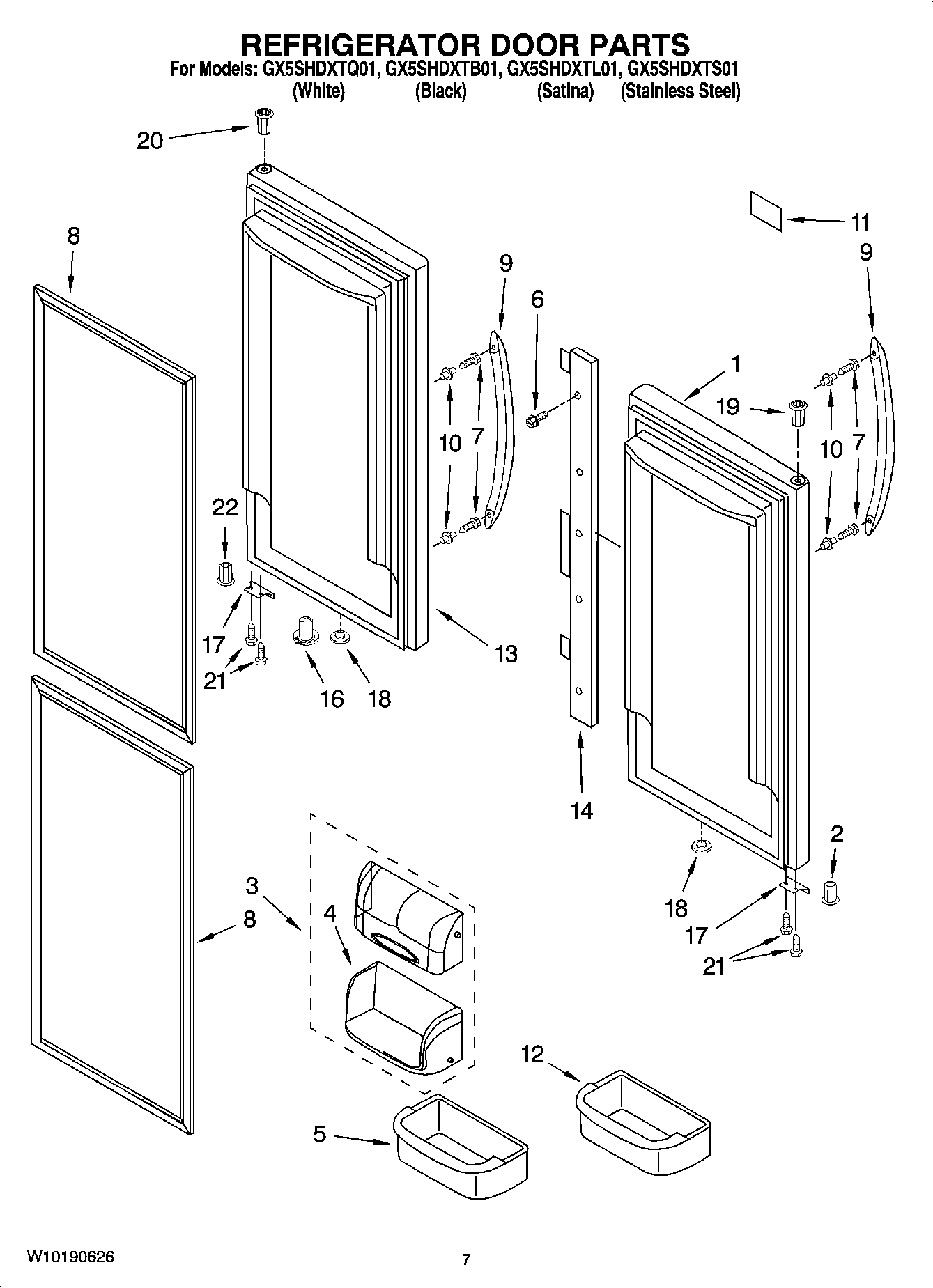

GX5SHDXTB01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Stainless Steel)
1	Door, Left (White)
1	Door, Left (Black)
2	WP67002721 Whirlpool Refrigerator Door Bushing
2	67002722 Whirlpool Refrigerator White Door Bushing
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	67006901 Whirlpool Refrigerator Screw
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
9	WP2254600W Whirlpool Refrigerator Handle
9	WP2254600B Whirlpool Refrigerator Handle
9	Handle (Stainless)
10	WP67006113 Whirlpool Stud Bolt
11	Nameplate
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13	Door, Right (Stainless Steel)
13	Door, Right (Black)
13	Door, Right (White)
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	67004838 Whirlpool Refrigerator Button Vent Plug
18	10712401 Whirlpool Refrigerator Vent Plug (White)
19	Bushing, Door (Upper Left) (White)
19	Bushing, Door (Upper Left) (Black)
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
20	67004978 Whirlpool Refrigerator Black Door Bushing
21	WP98165 Whirlpool Screw
22	WP67002731 Whirlpool Refrigerator Door Bushing
22	12028601W Whirlpool Refrigerator Hinge Bushing
