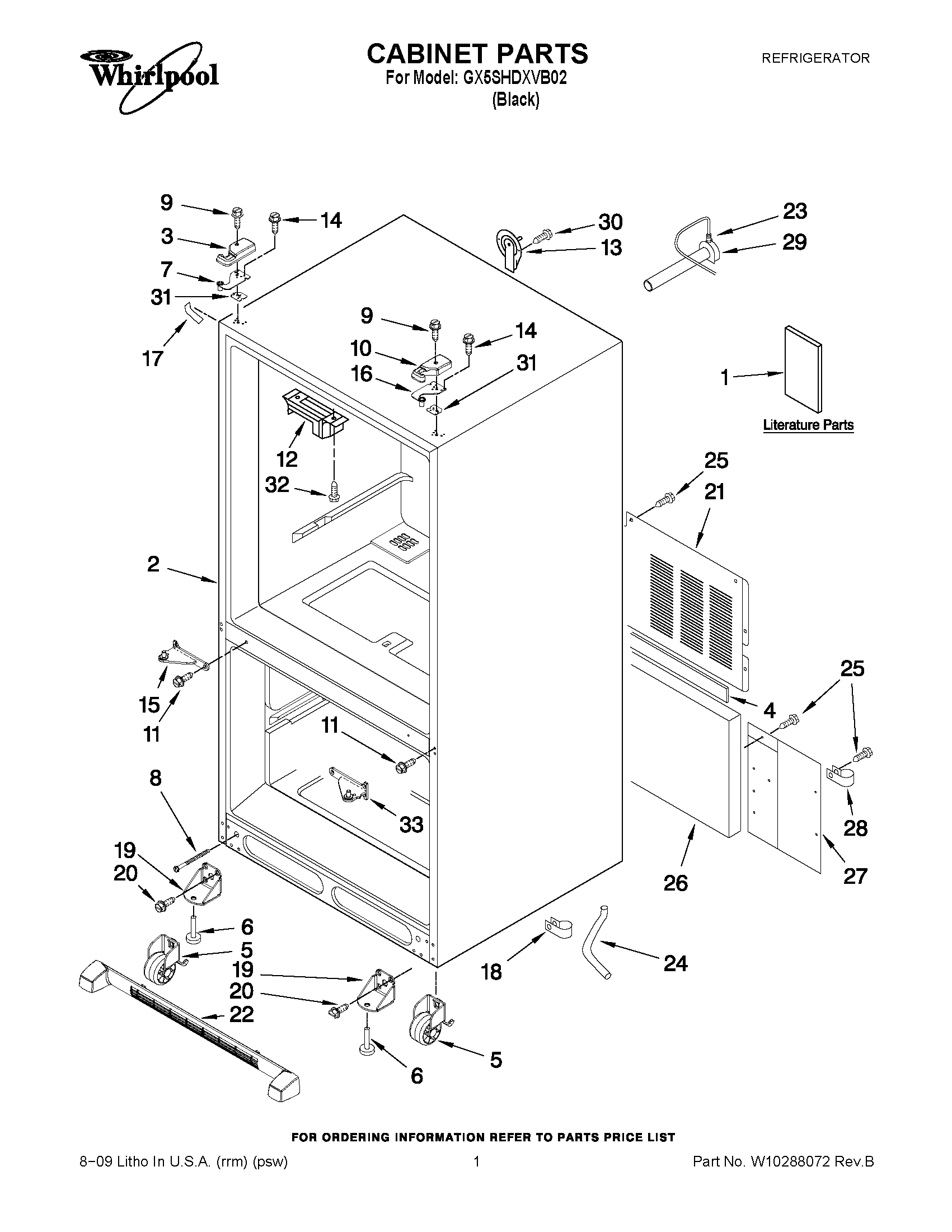

GX5SHDXVB02 01 – CABINET PARTSadmin2025-04-26T12:06:40+00:00GX5SHDXVB02 01 – CABINET PARTS ProductsPositionProduct1Use & Care Guide1Tech Sheet1Energy Guide2CABINET (NOT A SERVICEABLE PART)3W10337647 Whirlpool Refrigerator Cover4Gasket5ROLLER ASSY.(REAR)6W11177593 Whirlpool Leveling Feet7W11592375 Whirlpool Door Hinge871003131 Whirlpool Oven Screw9WP8281196 Whirlpool Screw10WP67005956 Whirlpool Refrigerator Cover11WP489349 Whirlpool Refrigerator Screw12WP67003405 Whirlpool Pivot Block1312726003 Whirlpool Refrigerator Water Cover15W10918164 Whirlpool Refrigerator Door Hinge16W11592374 Whirlpool Refrigerator Top Door Hinge1767003485 Whirlpool Refrigerator Corner Cover (Black)18Clip, Drain Tube1912906303WD Whirlpool Refrigerator Bracket2067006564 Whirlpool Refrigerator Screw21COVER, UNIT22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille23WPM0114003 Whirlpool Microwave Speed Clip Clamp24W10164397 Whirlpool Refrigerator Drain Tube2567006425 Whirlpool Refrigerator Screw2667003796 Whirlpool Refrigerator Fiber Acoustic27Cover, Water Valve28W10833902 Whirlpool Refrigerator Clamp29W11176463 Whirlpool Refrigerator Water Tube30WP98165 Whirlpool Screw3112999501 Whirlpool Refrigerator Hinge Shim3112999502 Whirlpool Refrigerator Hinge Shim32WP7101P126-60 Whirlpool Screw33W10918168 Whirlpool Refrigerator Door Hinge
