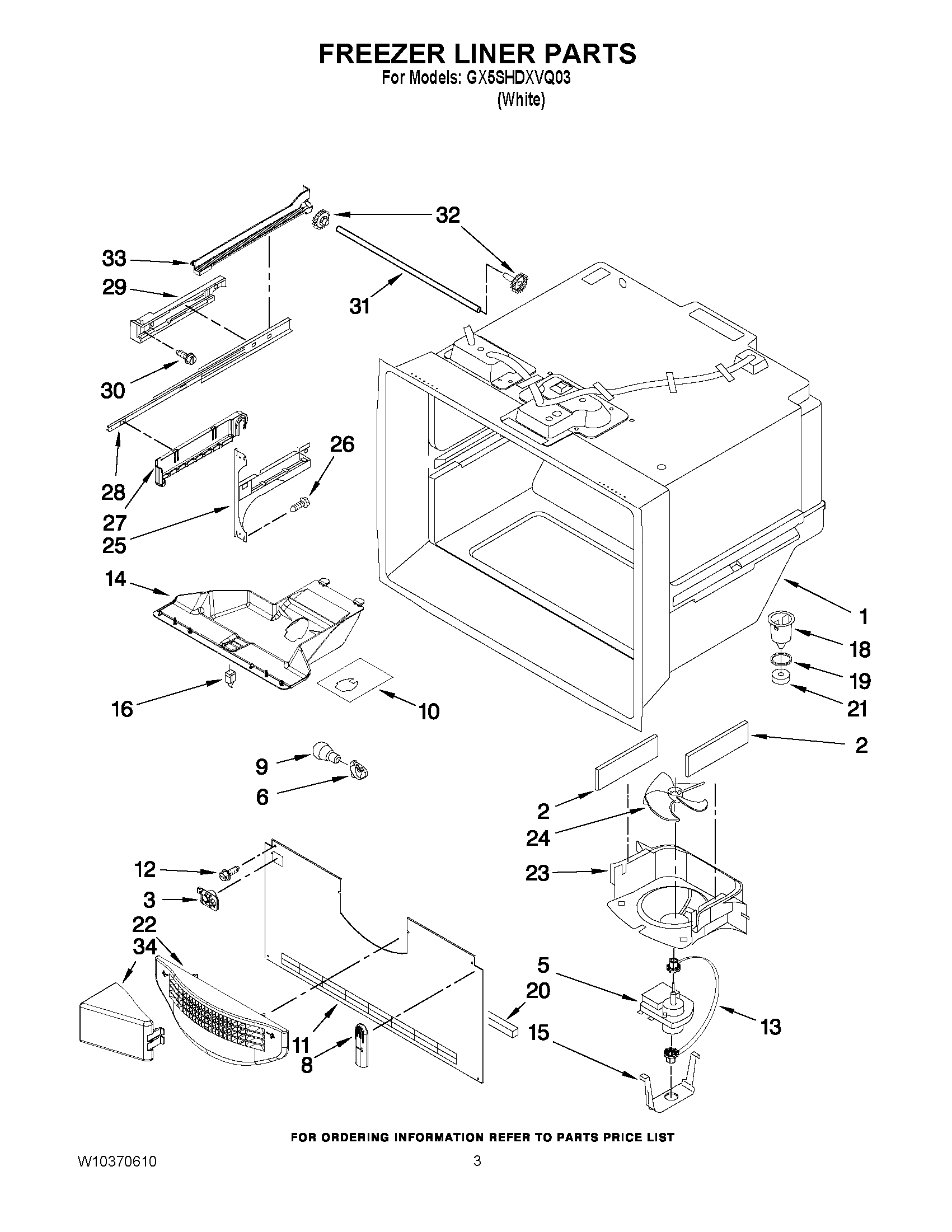

GX5SHDXVQ03 02 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
3	W11448709 Whirlpool Refrigerator Bracket
5	WPW10128551 Whirlpool Evaporator Fan Motor
6	W11447232 Whirlpool Refrigerator Socket
8	WP67003924 Whirlpool Refrigerator Cover
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11469652 Whirlpool Refrigerator Shield
11	W11727809 Whirlpool Evaporator Cover
12	67006425 Whirlpool Refrigerator Screw
13	W10121318 Whirlpool Refrigerator Grommet
14	WPW10277025 Whirlpool Refrigerator Housing
15	CLIP, EVAPORATOR MOTOR
16	W11396033 Whirlpool Refrigerator Rocker Switch
18	W10815413 Whirlpool Refrigerator Funnel
19	WPM0500703 Whirlpool Refrigerator O-Ring Seal
20	W11159728 Whirlpool Refrigerator Gasket
21	WPB8381501 Whirlpool Refrigerator Door Gasket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	WPW10330993 Whirlpool Refrigerator Bracket
25	WPW10330991 Whirlpool Refrigerator Bracket
26	WP98165 Whirlpool Screw
27	WPW10280608 Whirlpool Refrigerator Bracket
27	WPW10280613 Whirlpool Refrigerator Bracket
28	W11658402 Whirlpool Drawer Slide Rail
29	WPW10284685 Whirlpool Refrigerator Bracket
29	WPW10284684 Whirlpool Refrigerator Bracket
30	WP489474 Whirlpool Refrigerator Screw
31	W11028221 Whirlpool Refrigerator Shaft
32	12002497 Whirlpool Refrigerator Drawer Gear Kit
33	W11489994 Whirlpool Refrigerator Rail
33	W11489993 Whirlpool Refrigerator Rail
34	W10157765 Whirlpool Refrigerator Deflector
