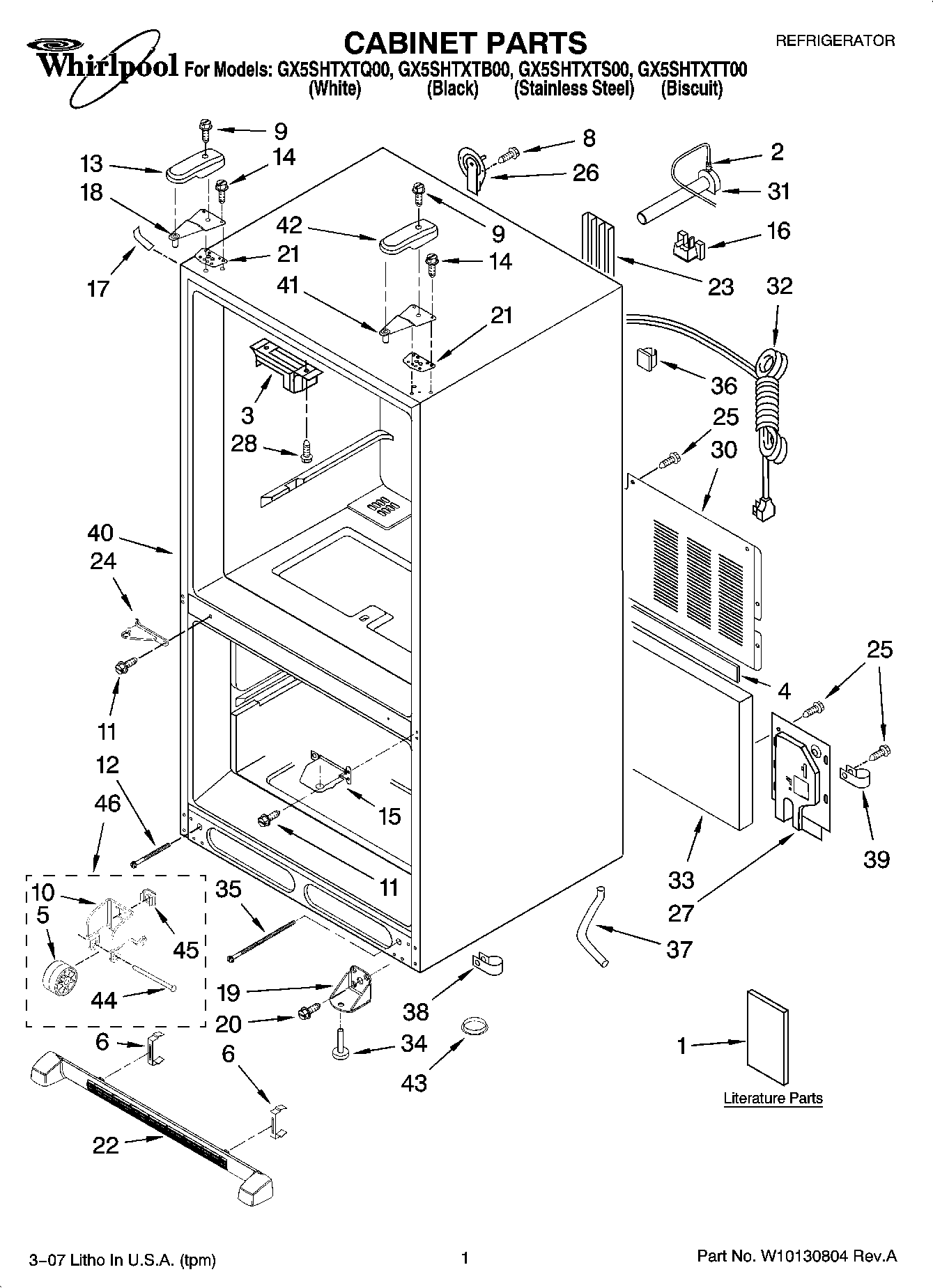

GX5SHTXTB00 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Tag, Energy
1	Owners Manual
2	W11176463 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	GASKET
5	WP10450603 Whirlpool Refrigerator Roller
6	WPL 4344155
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	Cover, Left Hinge (White)
13	Cover, Left Hinge (Black)
13	Cover, Left Hinge (Biscuit)
14	WP489349 Whirlpool Refrigerator Screw
15	HINGE, CENTER RIGHT HAND (WHITE)
15	W10918164 Whirlpool Refrigerator Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	Cover, Corner (Biscuit)
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	WP12566607ED Whirlpool Refrigerator Door Hinge
19	Bracket, Foot
20	67006564 Whirlpool Refrigerator Screw
21	Shim, Hinge
22	Grille, Toe (Bisque)
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	WPL 8208152
24	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24	W10918113 Whirlpool Refrigerator Door Hinge
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	Cover, Water Valve
28	SCREW
30	Cover, Unit
31	W11181718 Whirlpool Refrigerator Water Tube
32	Power Cord
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	Bolt, Adjusting (Rear)
36	Clip, Cord
37	Tube, Drain
38	67001067 Whirlpool Refrigerator Drain Tube Clip
39	67002816 Whirlpool Refrigerator Waterline Clip
40	Cabinet (Not A Servicable Part)
41	WP12566606ED Whirlpool Refrigerator Door Hinge
42	Cover, Right Hinge (Black)
42	Cover, Right Hinge (White)
42	Cover, Right Hinge (Biscuit)
43	A3076901 Whirlpool Refrigerator Plug
44	Pin
45	M0286708 Whirlpool Refrigerator Holder Nut Assembly
46	Roller Assembly
