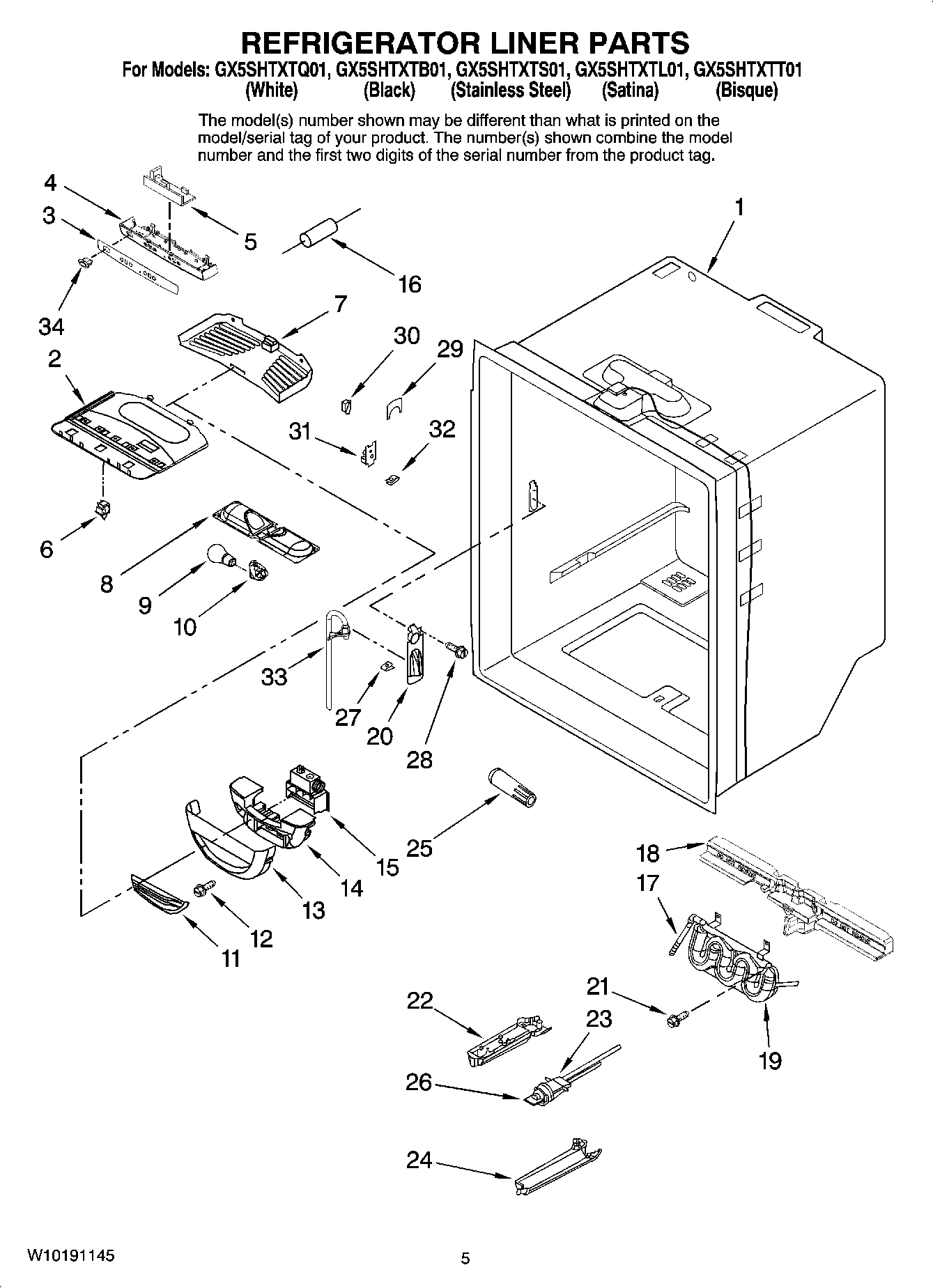

GX5SHTXTL01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
	Following Parts Not Illustrated
	WP12868601 Whirlpool Refrigerator Wire Harness
1	Liner (Not A Serviceable Part)
2	Module, Light
3	Overlay
4	WP12806407 Whirlpool Refrigerator Housing
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	WPW10196393 Whirlpool Control Damper
16	12002355 Whirlpool Refrigerator Thermistor Kit
17	WP2300868 Whirlpool Refrigerator Fitting
18	W11714300 Whirlpool Insulation
19	W11361728 Whirlpool Reservoir Assembly
20	Facade, Disp.
21	67006425 Whirlpool Refrigerator Screw
22	PLATE-FIL
23	WP67006524 Whirlpool Refrigerator Housing
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	Plug, Bypass
27	W10819546 Whirlpool Refrigerator Clip
28	WP67006415 Whirlpool Refrigerator Screw
29	W11519867 Whirlpool Refrigerator Cover
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	12707303SP Whirlpool Refrigerator Plate
32	67002816 Whirlpool Refrigerator Waterline Clip
33	W11677725 Whirlpool Refrigerator Guide
34	W11478401 Whirlpool Refrigerator Housing
