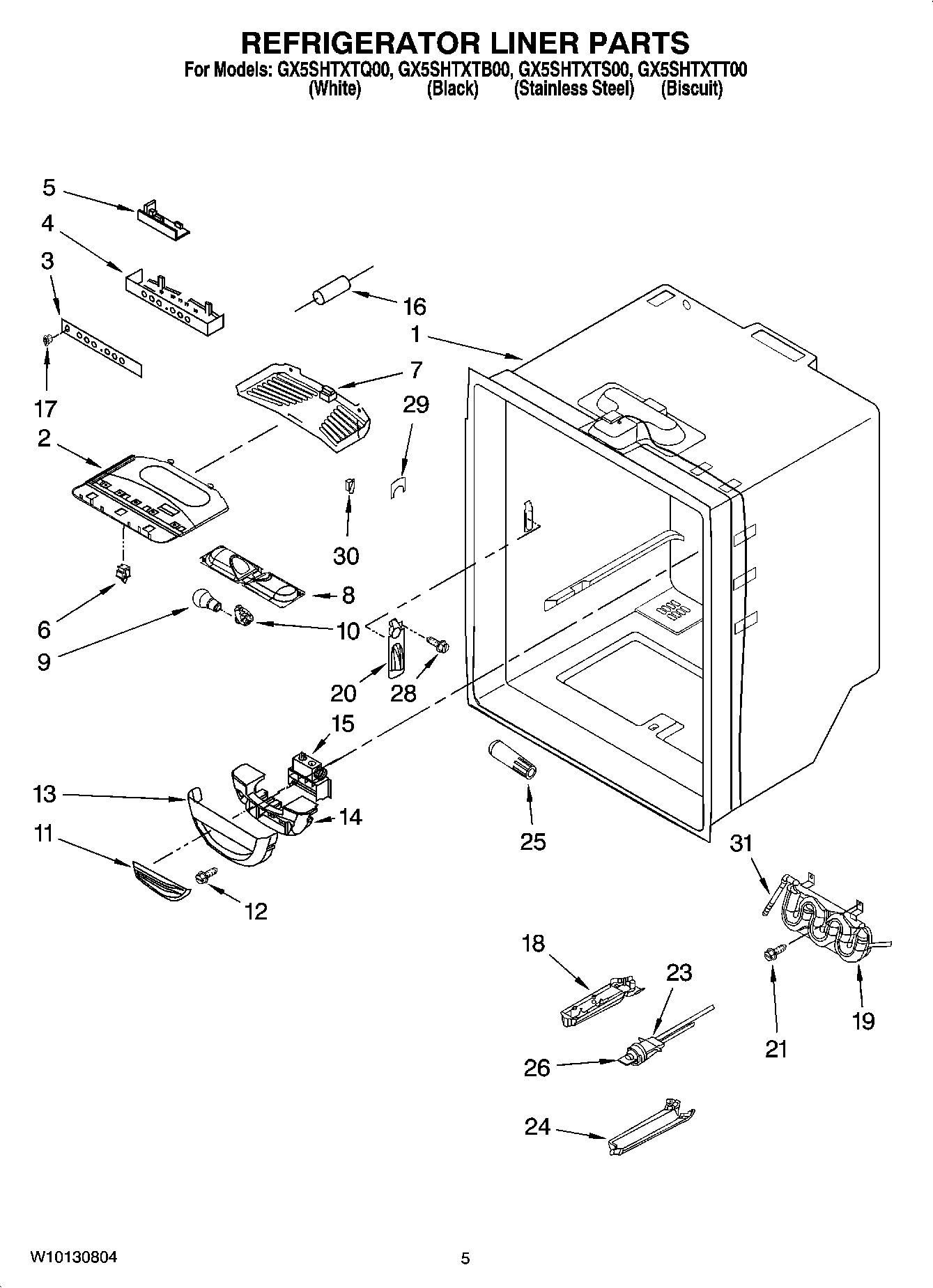

GX5SHTXTQ00 03 – REFRIGERATOR LINER PARTSadmin2025-04-26T12:07:44+00:00GX5SHTXTQ00 03 – REFRIGERATOR LINER PARTS ProductsPositionProduct1Liner (Not A Serviceable Part)2Bracket, Control and Lights3Overlay4Housing Electronic Control5WPW10503278 Whirlpool Refrigerator Electronic Control Board6W11384469 Whirlpool Door Switch7W11284721 Whirlpool Refrigerator Cover812806601 Whirlpool Refrigerator Light Housing9W11679940 Whirlpool Refrigerator Light Bulb Assembly10W11447232 Whirlpool Refrigerator Socket1167003900 Whirlpool Refrigerator Insert Damper Cover12WP400021-1 Whirlpool Screw13WP12806701 Whirlpool Refrigerator Box Cover14WP67003904 Whirlpool Refrigerator Insulation15WP67003903 Whirlpool Refrigerator Damper Control1612002355 Whirlpool Refrigerator Thermistor Kit17W11478401 Whirlpool Refrigerator Housing18PLATE-FIL19Tank, Water20Dispenser21WP98165 Whirlpool Screw23WP67006524 Whirlpool Refrigerator Housing24WP12568001 Whirlpool Filter Cover25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water26Head, Filter Bypass2867006425 Whirlpool Refrigerator Screw29W11519867 Whirlpool Refrigerator Cover30WP12575501 Whirlpool Refrigerator Micro Switch31WP2300868 Whirlpool Refrigerator Fitting31Following Parts Not Illustrated31WP12868601 Whirlpool Refrigerator Wire Harness
