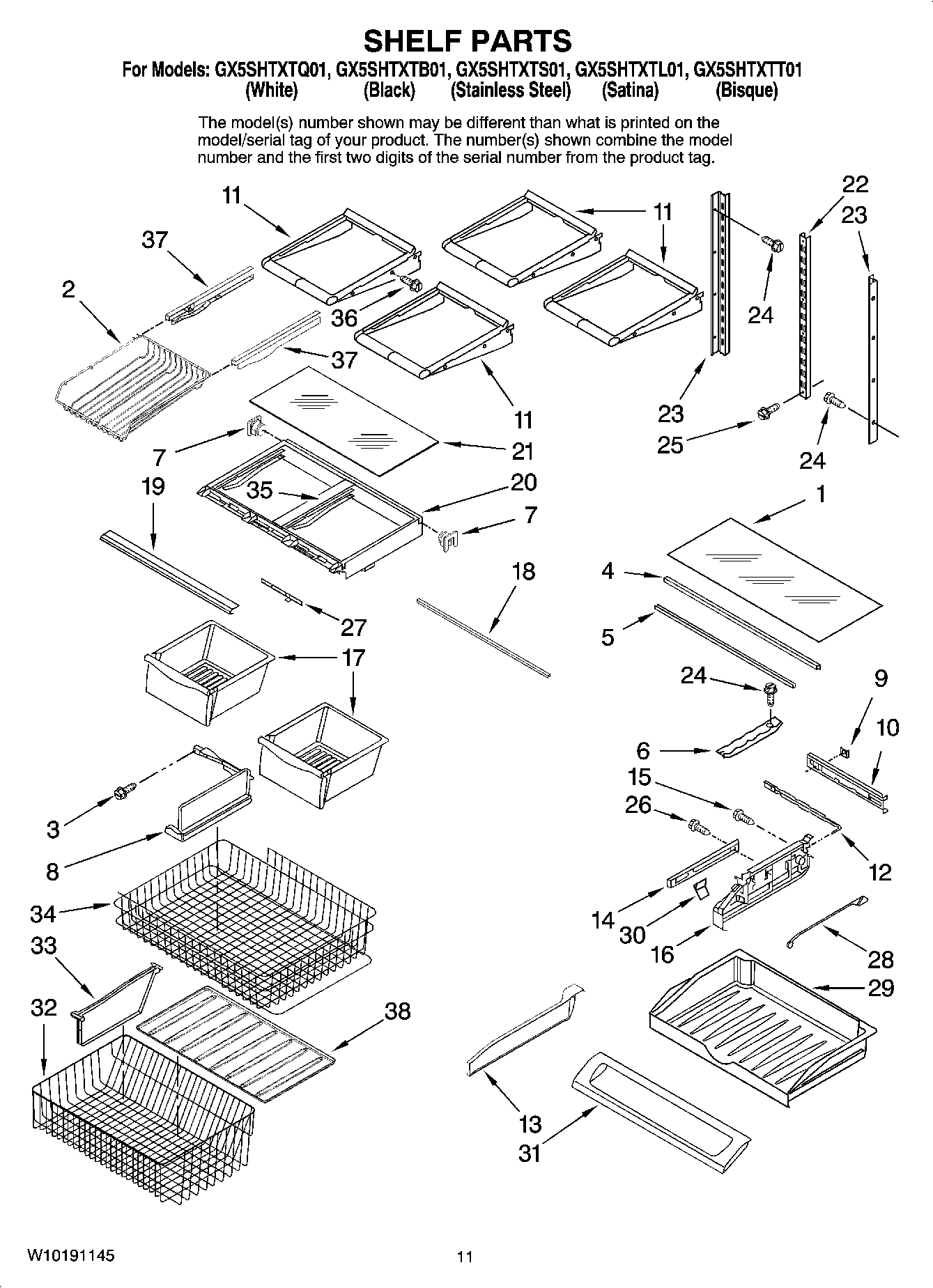

GX5SHTXTT01 06 – SHELF PARTS

Products

Position	Product
1	Glass, Pantry
2	Rack, Bottle
3	Screw
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	WP12603701 Whirlpool Refrigerator Support
8	Divider, Upper Basket
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	Shelf, Sta (4)
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67002759 Whirlpool Refrigerator Divider
14	WPW10235370 Whirlpool Refrigerator Glide
15	WP98165 Whirlpool Screw
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	WP67004515 Whirlpool Crisper Drawer
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	67001073 Whirlpool Refrigerator Center Ladder
23	67002489 Whirlpool Refrigerator Ladder L/R Side
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	WP67006415 Whirlpool Refrigerator Screw
27	SLIDE
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32	WPW10503184 Whirlpool Refrigerator Freezer Basket
33	Divider, Lower Basket
34	67004987 Whirlpool Refrigerator Upper Basket
35	WPW10326469 Whirlpool Drawer Slide Rail
36	SCREW
37	WP67001054 Whirlpool Left Glide
37	Glide, Deli (Right)
38	WP67006104 Whirlpool Refrigerator Tray
