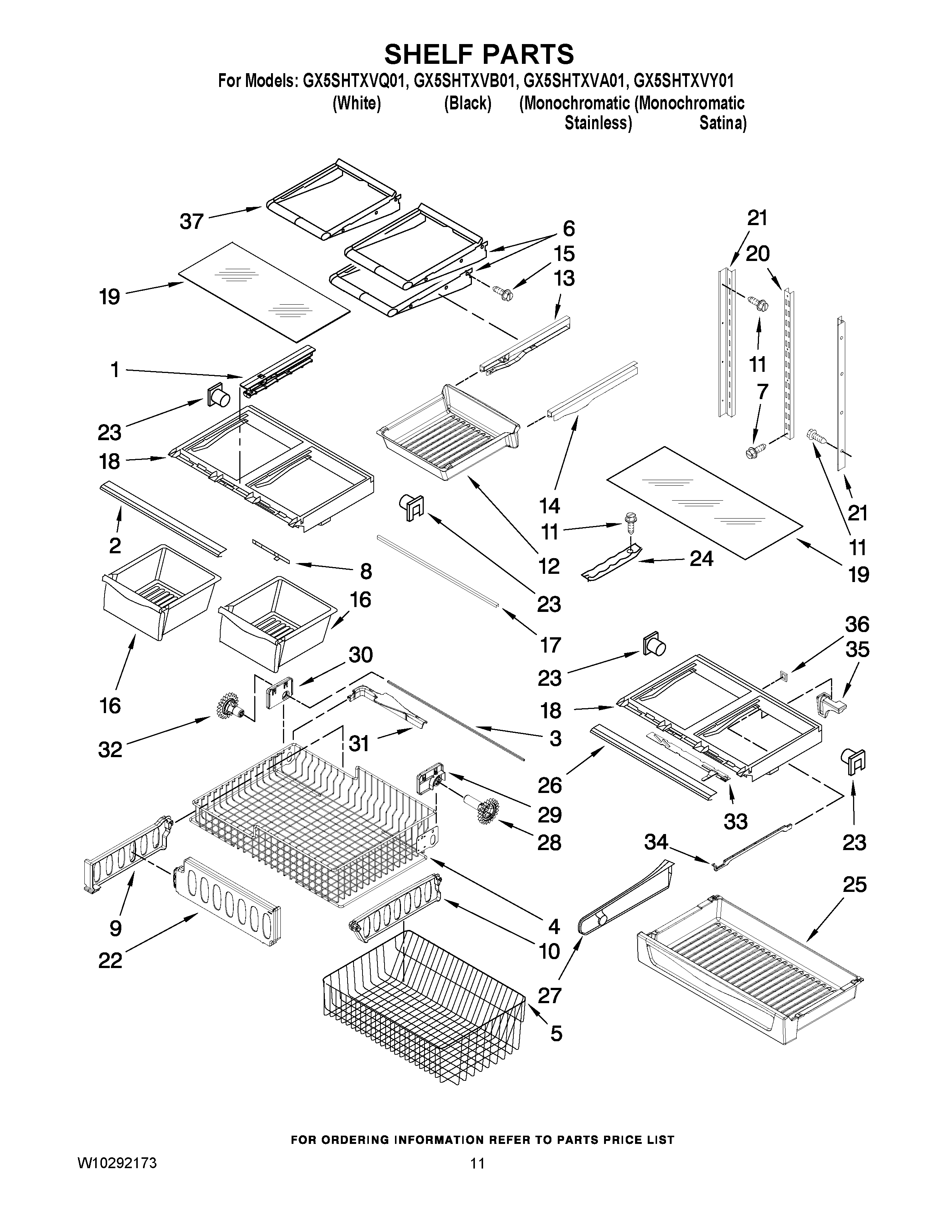

GX5SHTXVA01 07 – SHELF PARTS

Products

PositionProduct
1WPW10326469 Whirlpool Drawer Slide Rail
2TRIM, CRISPER
3W11173556 Whirlpool Refrigerator Shaft
4WPW10348246 Whirlpool Refrigerator Freezer Basket
5Basket, Freezer (Lower)
6SHELF, GLIDE (2)
7W10709795 Whirlpool Refrigerator Screw
8SLIDE
9W10241046 Whirlpool Refrigerator Divider
10W10847995 Whirlpool Divider Assembly
1167006425 Whirlpool Refrigerator Screw
12PAN, DELI
13WP67001054 Whirlpool Left Glide
14WP67001053 Whirlpool Drawer Glide
15SCREW
16WP67004515 Whirlpool Crisper Drawer
17WP12642303WD Whirlpool Refrigerator Drawer Support
18WP67003854 Whirlpool Shelf Frame
19WP67006704 Whirlpool Glass Crisper Cover
20W10273463 Whirlpool Refrigerator Ladder
21W10251969 Whirlpool Refrigerator Ladder
22W10171558 Whirlpool Refrigerator Divider
23WP13062602 Whirlpool Refrigerator Support
24WP67001719 Whirlpool Refrigerator Track
25Drawer, Pantry
26W10231336 Whirlpool Refrigerator Shelf Trim
2767004556 Whirlpool Refrigerator Pantry Divider
28WPW10474715 Whirlpool Refrigerator Gear
29W10348260 Whirlpool Refrigerator Bracket
30W10348259 Whirlpool Refrigerator Bracket Assembly
31W10149389 Whirlpool Refrigerator Handle
32WPW10474716 Whirlpool Refrigerator Gear
3367002002 Whirlpool Refrigerator Pantry Slide
3412531402 Whirlpool Refrigerator Bar
35WP12531601 Whirlpool Refrigerator Tunnel
36GASKET, PANTRY
37W10205737 Whirlpool Refrigerator Glass Shelf
