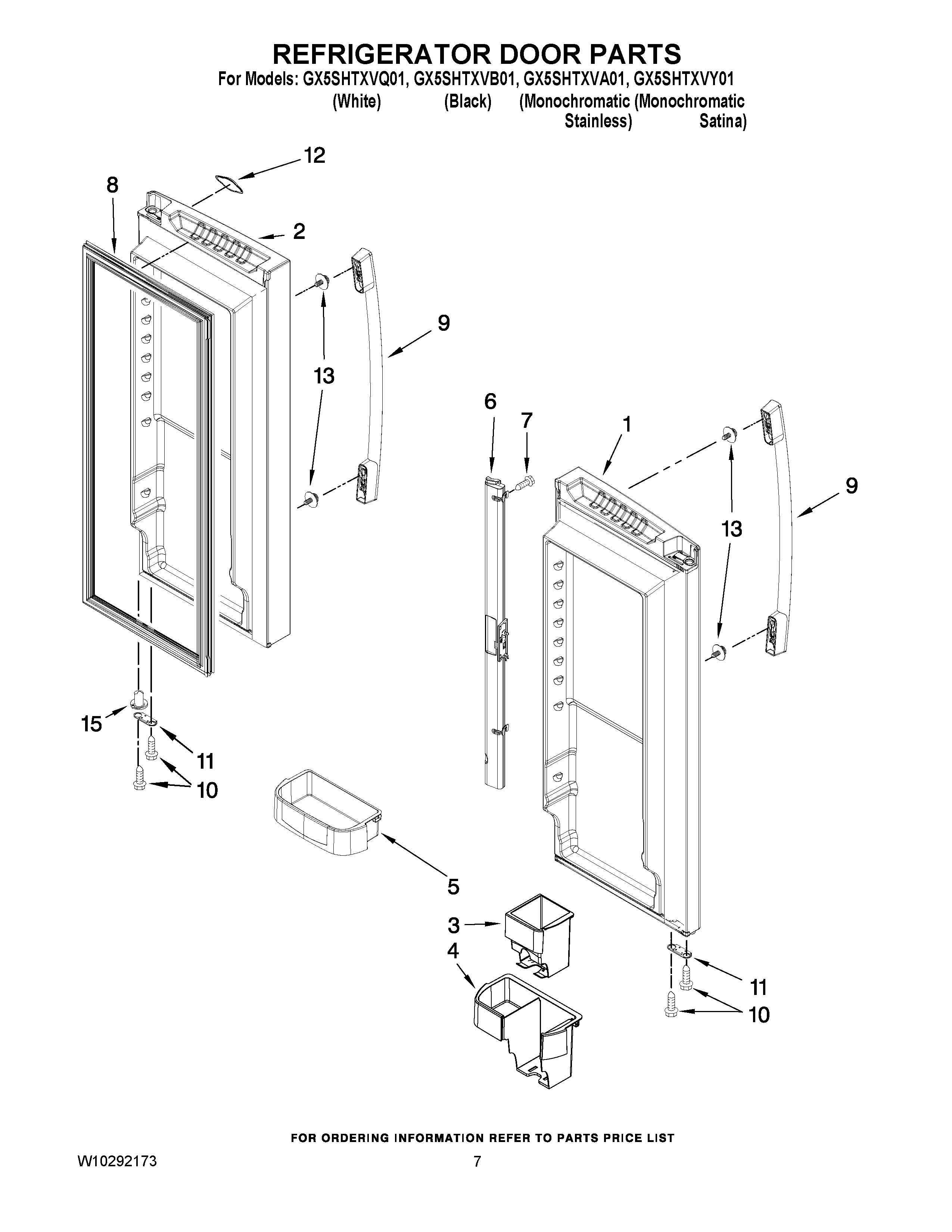

GX5SHTXVQ01 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:09:50+00:00GX5SHTXVQ01 05 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Door, Left (White) |
| 1 | DOOR, LEFT (BLACK) |
| 1 | DOOR, LEFT (SATINA) |
| 1 | DOOR, LEFT (STAINLESS) |
| 2 | DOOR, RIGHT (BLACK) |
| 2 | Door, Right (White) |
| 2 | DOOR, RIGHT (SATINA) |
| 2 | DOOR, RIGHT (STAINLESS) |
| 3 | WP13005401SP Whirlpool Can Rack |
| 4 | WPW10169346 Whirlpool Refrigerator Beverage Holder |
| 5 | WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door |
| 5 | BUCKET, DOOR (MEDIUM (3) (GRIPPERNo.12567307)) |
| 6 | WP12722803B Whirlpool Door Guide |
| 6 | MULLION, DOOR (WHITE) |
| 6 | WP12722803AP Whirlpool Refrigerator Mullion Rail |
| 7 | W11311945 Whirlpool Refrigerator Screw |
| 8 | GASKET-FIP |
| 8 | GASKET-FIP |
| 8 | W10830189 Whirlpool Refrigerator Door Gasket |
| 9 | WPW10222984K Whirlpool Refrigerator Handle Assembly |
| 9 | W11351147 Whirlpool Refrigerator Handle |
| 9 | W11351146 Whirlpool Refrigerator Handle |
| 10 | WP98165 Whirlpool Screw |
| 11 | 12968202W Whirlpool Refrigerator Door Stop |
| 11 | W11703060 Whirlpool Door Stop |
| 11 | W11708403 Whirlpool Door Stop |
| 12 | Nameplate |
| 13 | WP12992902 Whirlpool Refrigerator Screw |
| 15 | WP67003639 Whirlpool Refrigerator Closer |
| 15 | WP12028505AP Whirlpool Closing Cam |
| 15 | WP67003638 Whirlpool Closing Cam |
