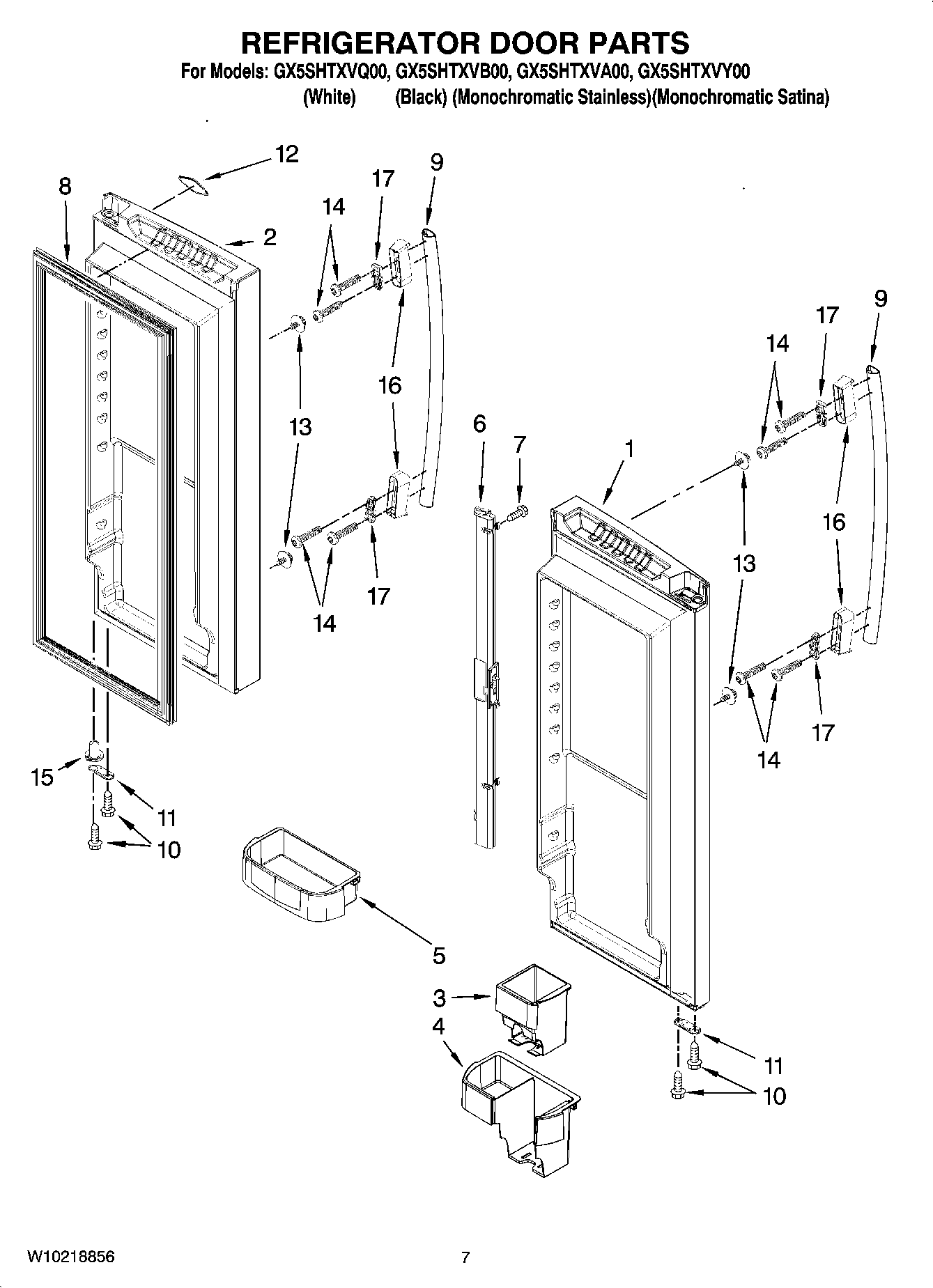

GX5SHTXVY00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Left (Black)
1	Door, Left (Satina)
1	Door, Left (White)
1	Door, Left (Stainless)
2	Door, Right (Black)
2	Door, Right (White)
2	Door, Right (Stainless)
2	Door, Right (Satina)
3	WP13005401SP Whirlpool Can Rack
4	WPW10169346 Whirlpool Refrigerator Beverage Holder
5	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	WP12722803AP Whirlpool Refrigerator Mullion Rail
6	WP12722803B Whirlpool Door Guide
6	RAIL-MULLN WHITE
7	W11311945 Whirlpool Refrigerator Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
8	GASKET-FIP
9	Handle, Door (Black)
9	WPW10222984K Whirlpool Refrigerator Handle Assembly
9	W11351147 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	12968202W Whirlpool Refrigerator Door Stop
11	W11703060 Whirlpool Door Stop
11	W11708403 Whirlpool Door Stop
12	Nameplate
13	WP12992902 Whirlpool Refrigerator Screw
14	W10267047 Whirlpool Screw
15	WP67003639 Whirlpool Refrigerator Closer
15	WP12028505AP Whirlpool Closing Cam
15	WP67003638 Whirlpool Closing Cam
16	Endcap, Handle (Apollo Grey)
16	Endcap, Handle (Black)
16	Endcap, Handle (White)
16	Endcap, Handle
17	Clip, Handle
