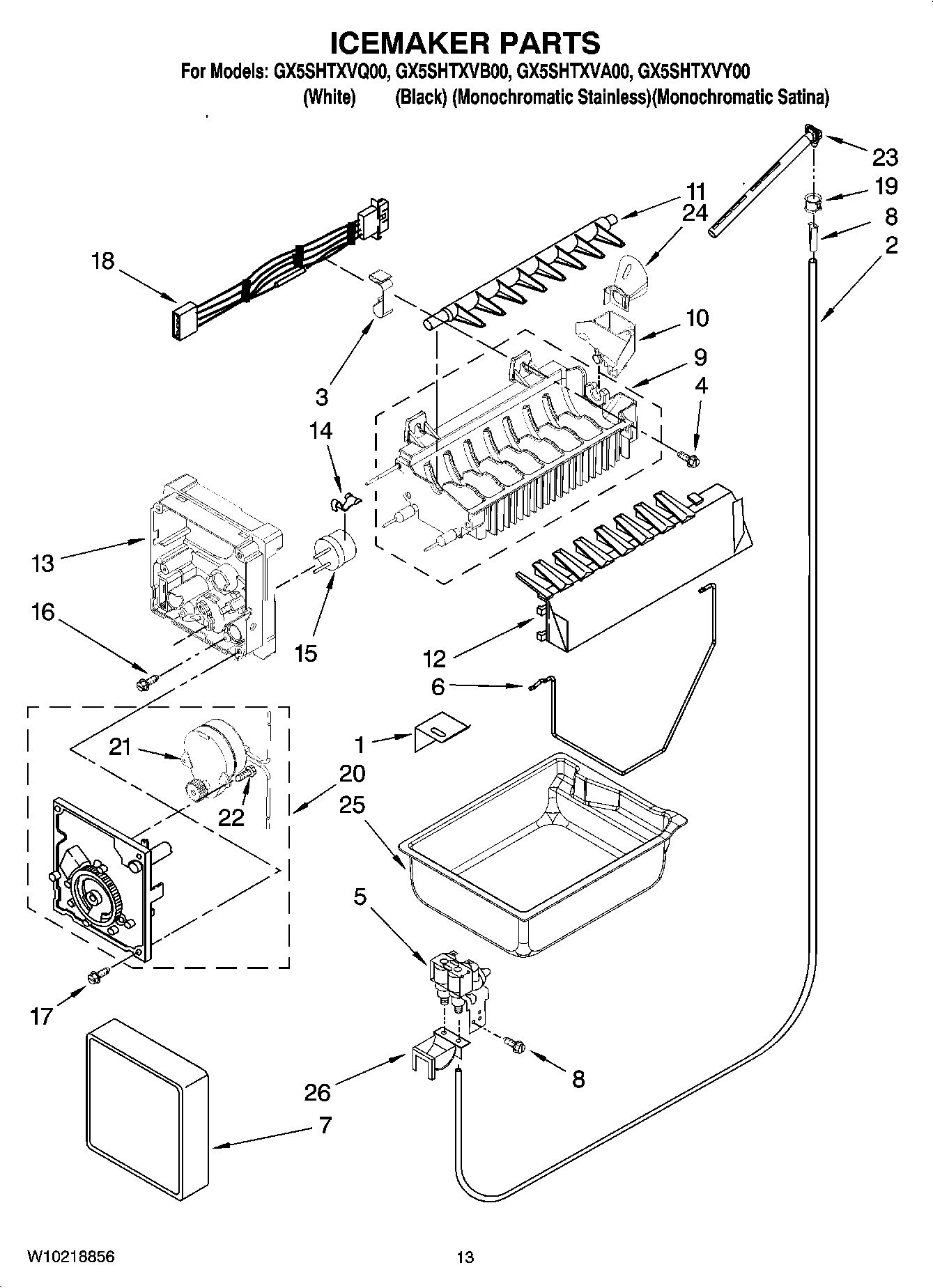

GX5SHTXVY00 08 – ICEMAKER PARTS, OPTIONAL PARTS

GX5SHTXVY00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

GX5SHTXVY00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
POLISH
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799833
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI152388A
WPL ARI152387A
WPL ARI152386A
TAPE, VINYL (3/4 X 108“)
WPL ARI152389A
CEMENT, ALUMILASTIC (1 1/4 OZ.)
1WP2256087 Whirlpool Refrigerator Bracket
2WPB5705307 Whirlpool Refrigerator Tube
3Clamp
4WP681249 Whirlpool Screw Assembly
5WP67006531 Whirlpool Water Inlet Valve
6ARM-SHUT
7WPW10289690 Whirlpool Ice Maker Cover
8WPA3223101 Whirlpool Refrigerator Insert PL
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11WP627843 Whirlpool Refrigerator Ejector Arm
12WP2182124 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP489464 Whirlpool Refrigerator Screw
18WPD7813010 Whirlpool Refrigerator Wire Harness
19WPM0114003 Whirlpool Microwave Speed Clip Clamp
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22489136 Whirlpool Refrigerator Screw
23W11176463 Whirlpool Refrigerator Water Tube
2412918001 Whirlpool Refrigerator Funnel
25WPW10171529 Whirlpool Refrigerator Ice Pan
2612831101 Whirlpool Refrigerator Tube Clamp
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
