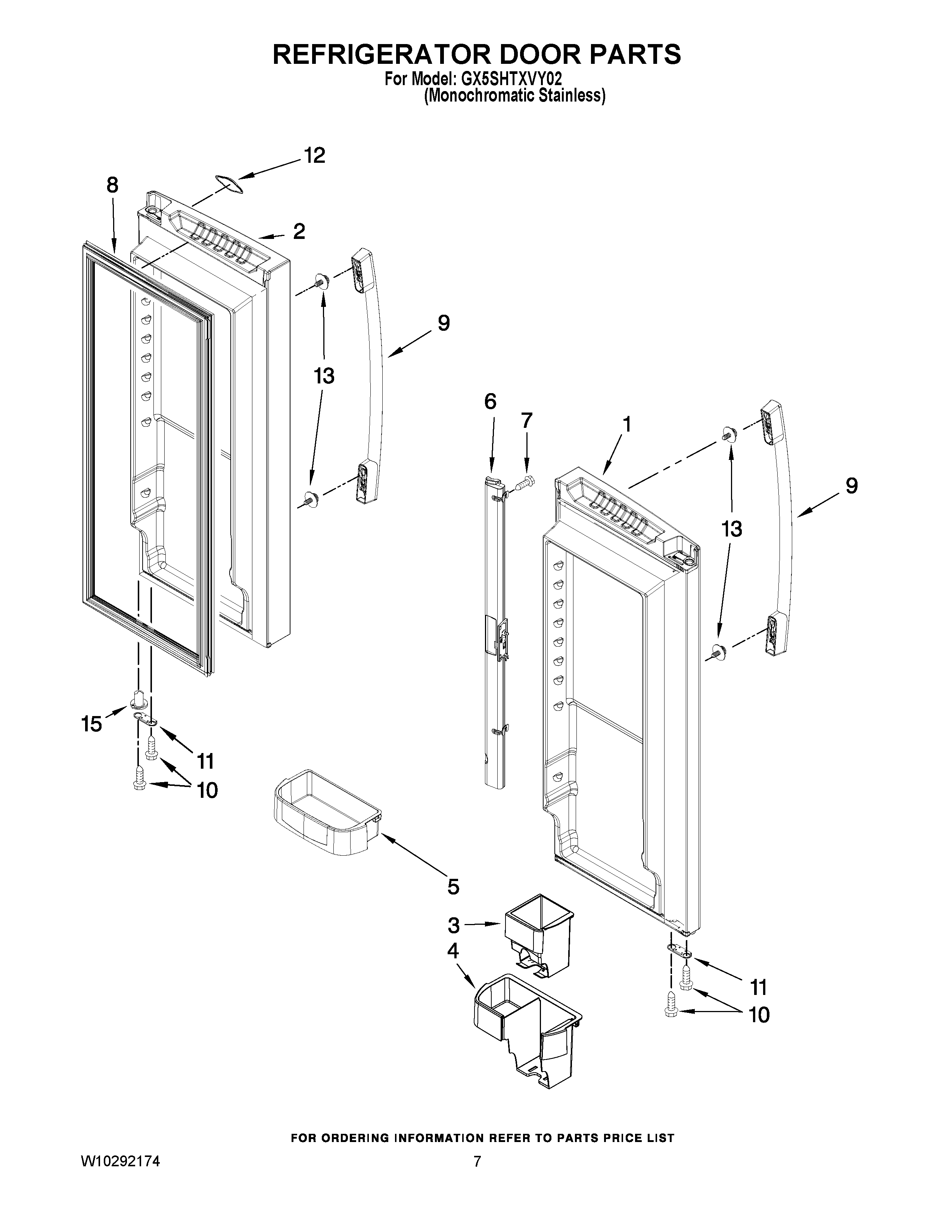

GX5SHTXVY02 05 – REFRIGERATOR DOOR PARTS

GX5SHTXVY02 05 – REFRIGERATOR DOOR PARTS

Written by

in

GX5SHTXVY02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3WP13005401SP Whirlpool Can Rack
4WPW10169346 Whirlpool Refrigerator Beverage Holder
5BUCKET, DOOR (MEDIUM (3) (GRIPPERNo.12567307))
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9W11351147 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12Nameplate
13WP12992902 Whirlpool Refrigerator Screw
15WP12028505AP Whirlpool Closing Cam
