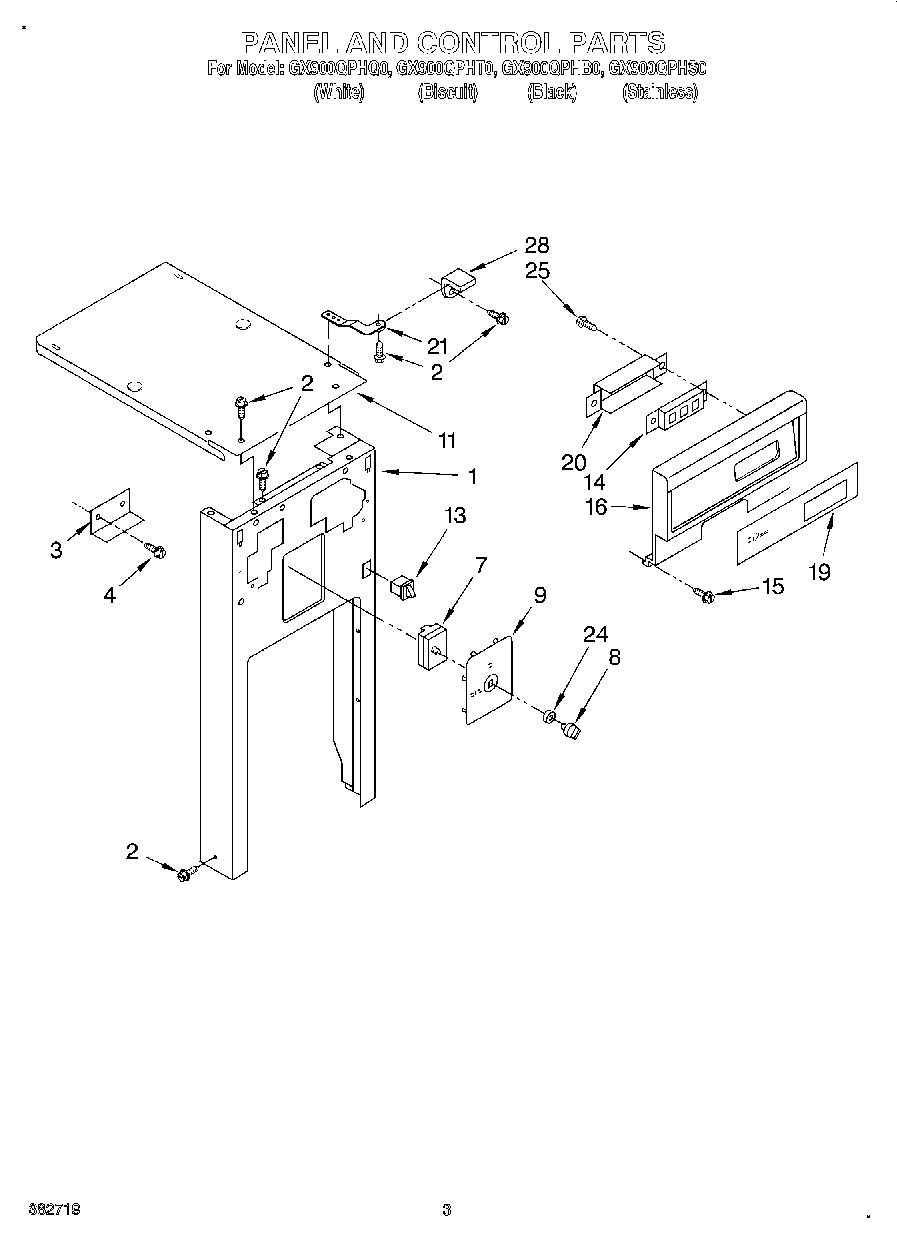

GX900QPHB0 03 – PANEL AND CONTROL

GX900QPHB0 03 – PANEL AND CONTROL

Written by

in

GX900QPHB0 03 – PANEL AND CONTROL

Products

PositionProduct
19871575 Whirlpool Compactor Panel
19871073 Whirlpool Compactor Panel
1Panel, Front Frame (Black)
2WP489478 Whirlpool Refrigerator Screw
3Bracket, Protector
4WP488234 Whirlpool Air Conditioner Screw
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99870356 Whirlpool Compactor Switch Plate
99871161 Whirlpool Compactor Switch Plate
11Cover, Top
13WP4387911 Whirlpool Refrigerator Switch
14WP9871567 Whirlpool Compactor Off Switch
14Assembly, Switch (Black)
15Screw
16Escutcheon, Control (Black)
16Escutcheon, Control (Biscuit)
16Escutcheon, Control (White)
19Insert, Decorative (Black)
19Insert, Decorative (White)
19Insert, Decorative (Biscuit)
20Shield, Switch
21W11729437 Whirlpool Retaining Bracket
24WP777383 Whirlpool Compactor Nut
25Screw, 8-18 x 1/2
28WP780239 Whirlpool Compactor Bracket Retainer
