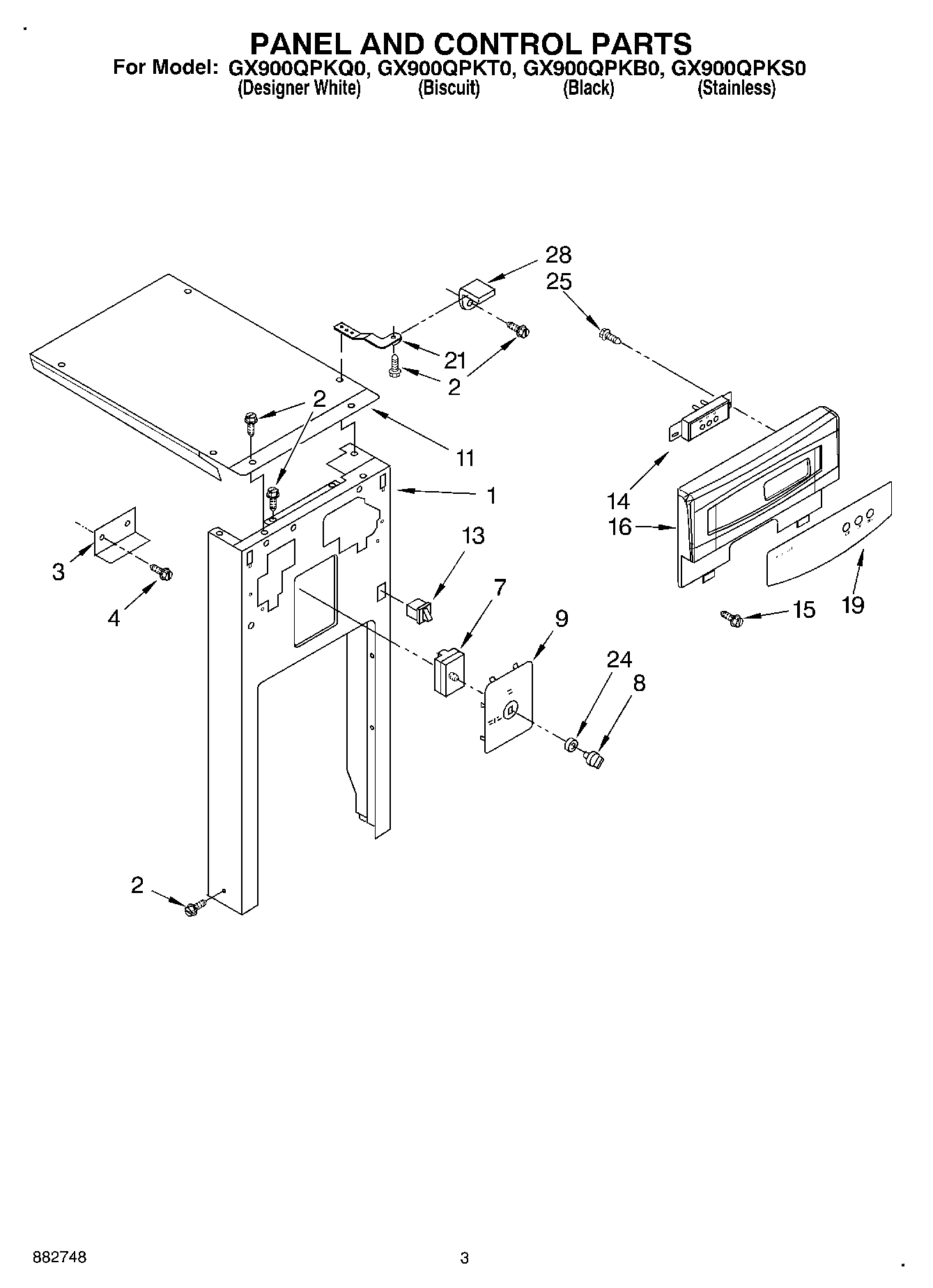

GX900QPKB0 03 – PANEL AND CONTROLadmin2025-04-26T12:08:24+00:00GX900QPKB0 03 – PANEL AND CONTROL
Products
| Position | Product |
|---|
| NI | Shield, Switch |
| 1 | 9871575 Whirlpool Compactor Panel |
| 1 | 9871073 Whirlpool Compactor Panel |
| 1 | Panel, Front Frame (Black) |
| 2 | WP489478 Whirlpool Refrigerator Screw |
| 3 | Bracket, Protector |
| 4 | WP488234 Whirlpool Air Conditioner Screw |
| 7 | 777380 Whirlpool Compactor Switch |
| 8 | WP4155141 Whirlpool Compactor Switch Knob |
| 9 | 9870356 Whirlpool Compactor Switch Plate |
| 9 | 9871161 Whirlpool Compactor Switch Plate |
| 11 | Cover, Top |
| 13 | 9871829 Whirlpool Trash Compactor Door Switch |
| 13 | WP4387911 Whirlpool Refrigerator Switch |
| 14 | W10813586 Whirlpool Off Switch |
| 15 | Screw |
| 16 | Escutcheon, Control (Biscuit) |
| 16 | Escutcheon, Control (Black) |
| 16 | Escutcheon, Control (White) |
| 19 | Insert, Console (Biscuit) |
| 19 | Insert, Console (White) |
| 19 | Insert, Console (Black) |
| 21 | W11729437 Whirlpool Retaining Bracket |
| 24 | WP777383 Whirlpool Compactor Nut |
| 25 | Screw, 8-18 x 1/2 |
| 28 | WP780239 Whirlpool Compactor Bracket Retainer |
