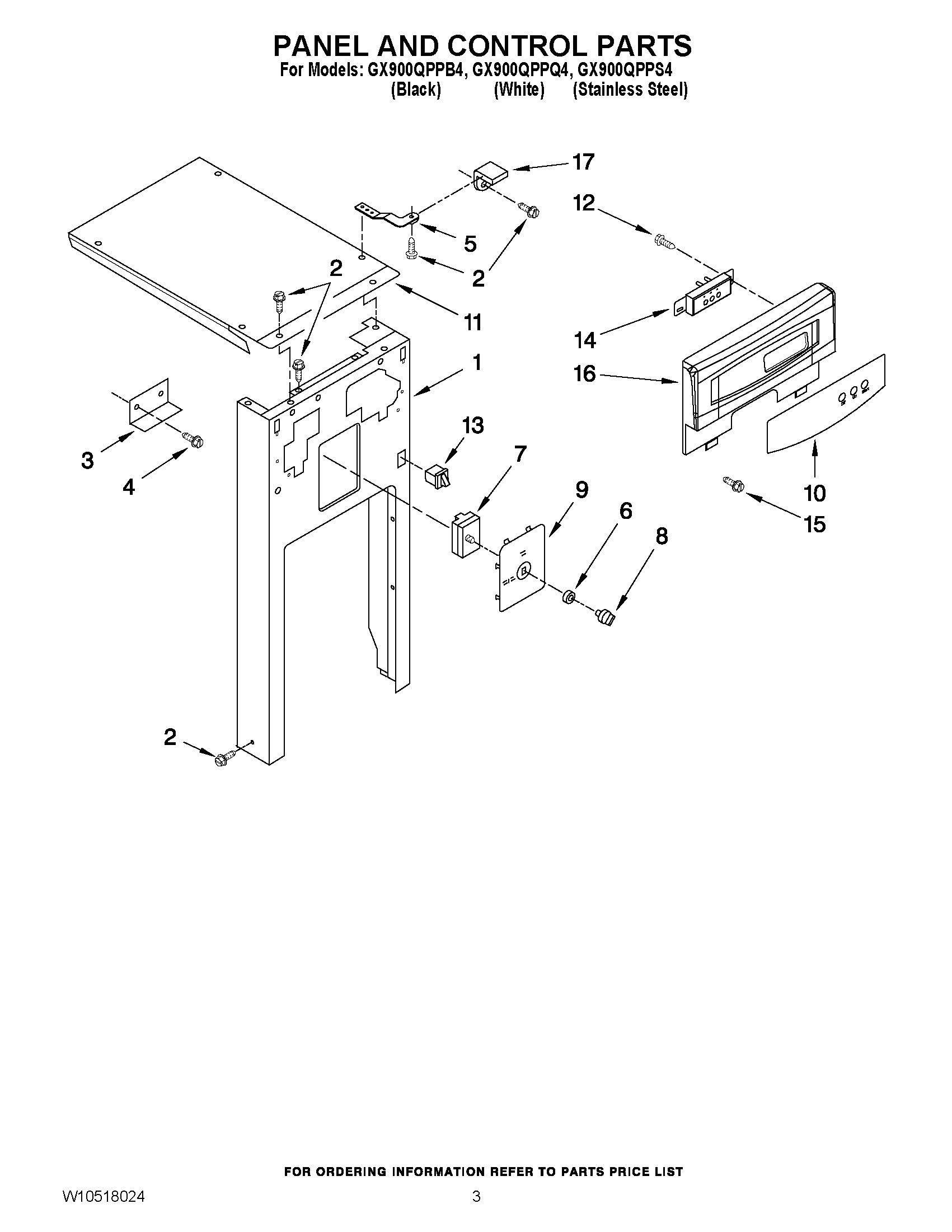

GX900QPPB4 03 – PANEL AND CONTROL PARTS

Products

PositionProduct
19871073 Whirlpool Compactor Panel
1Panel, Front Frame (Black)
2WP489478 Whirlpool Refrigerator Screw
3Bracket, Protector
4WP489399 Whirlpool Refrigerator Screw
5W11729437 Whirlpool Retaining Bracket
6WP777383 Whirlpool Compactor Nut
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99870356 Whirlpool Compactor Switch Plate
99871161 Whirlpool Compactor Switch Plate
10W11050447 Whirlpool Compactor Insert
11Cover, Top
12SCREW
139871829 Whirlpool Trash Compactor Door Switch
13WP4387911 Whirlpool Refrigerator Switch
14W10813586 Whirlpool Off Switch
15Screw
169872039W Whirlpool Compactor Escutcheon
16ESCUTCHEON
17WP780239 Whirlpool Compactor Bracket Retainer
