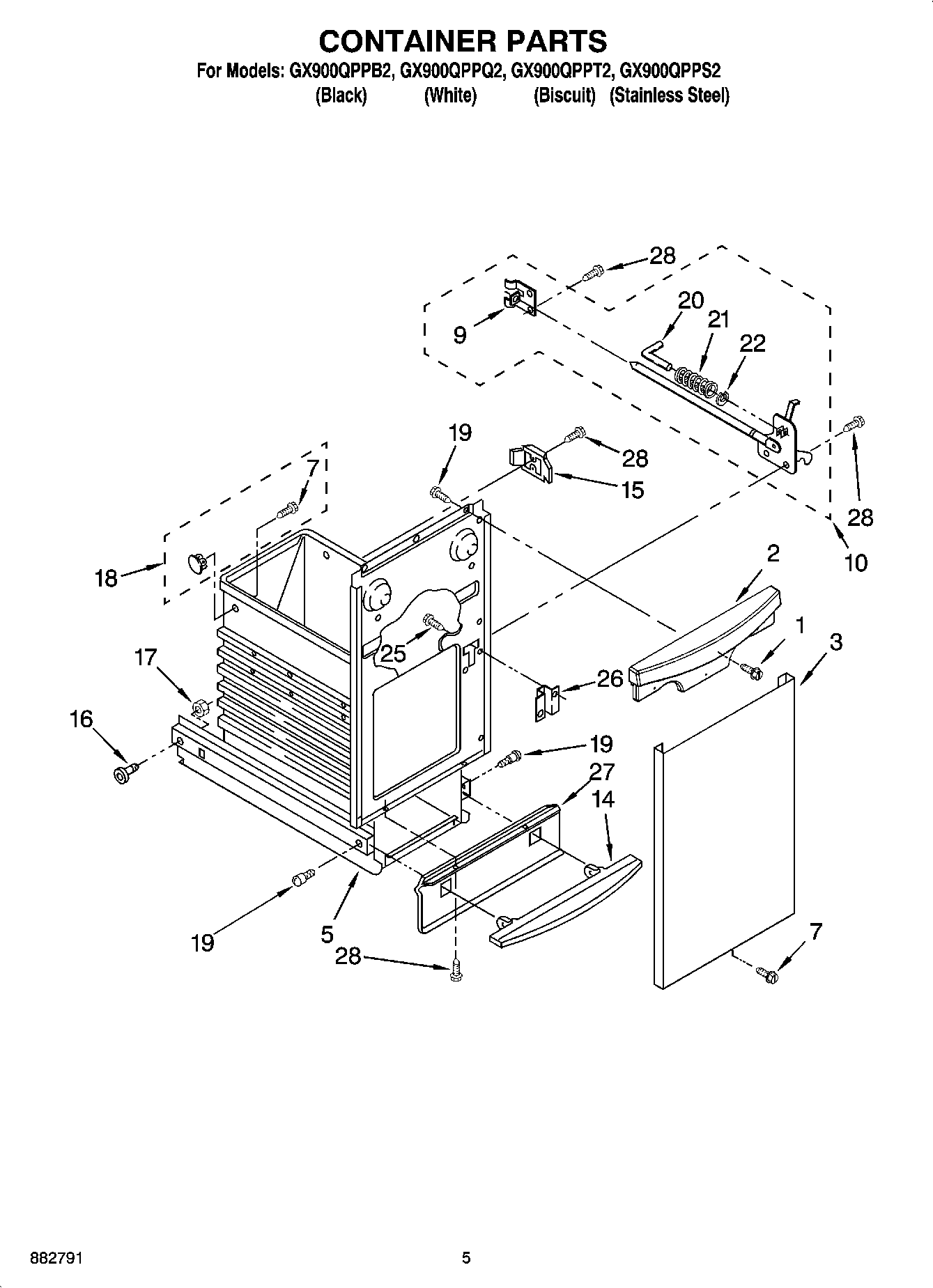

GX900QPPS2 04 – CONTAINER PARTS

GX900QPPS2 04 – CONTAINER PARTS

Written by

in

GX900QPPS2 04 – CONTAINER PARTS

Products

PositionProduct
1WP3400888 Whirlpool Compactor Screw
29872040T Whirlpool Compactor Handle
29872040W Whirlpool Compactor Handle
2WP9872040B Whirlpool Compactor Handle
3WP9871309 Whirlpool Compactor Panel
3WP9871311 Whirlpool Compactor Panel
3W10813881 Whirlpool Stainless Drawer Front Panel Container
39871574 Whirlpool Compactor Panel
5Container Assembly
7WP3196175 Whirlpool Screw
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
149871577 Whirlpool Compactor Foot Pedal
14WP9871031 Whirlpool Compactor Foot Pedal
14W11679165 Whirlpool Foot Pedal
159871125 Whirlpool Compactor Actuator
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18RETAINER, BAG
19WP780263 Whirlpool Compactor Screw
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
25WPW10139210 Whirlpool Screw
26775665 Whirlpool Compactor Plate Latch
27WP777328 Whirlpool Compactor Guard
27Plate, Toe Guard (Biscuit)
27W10917704 Whirlpool Compactor Guard
28WP489478 Whirlpool Refrigerator Screw
