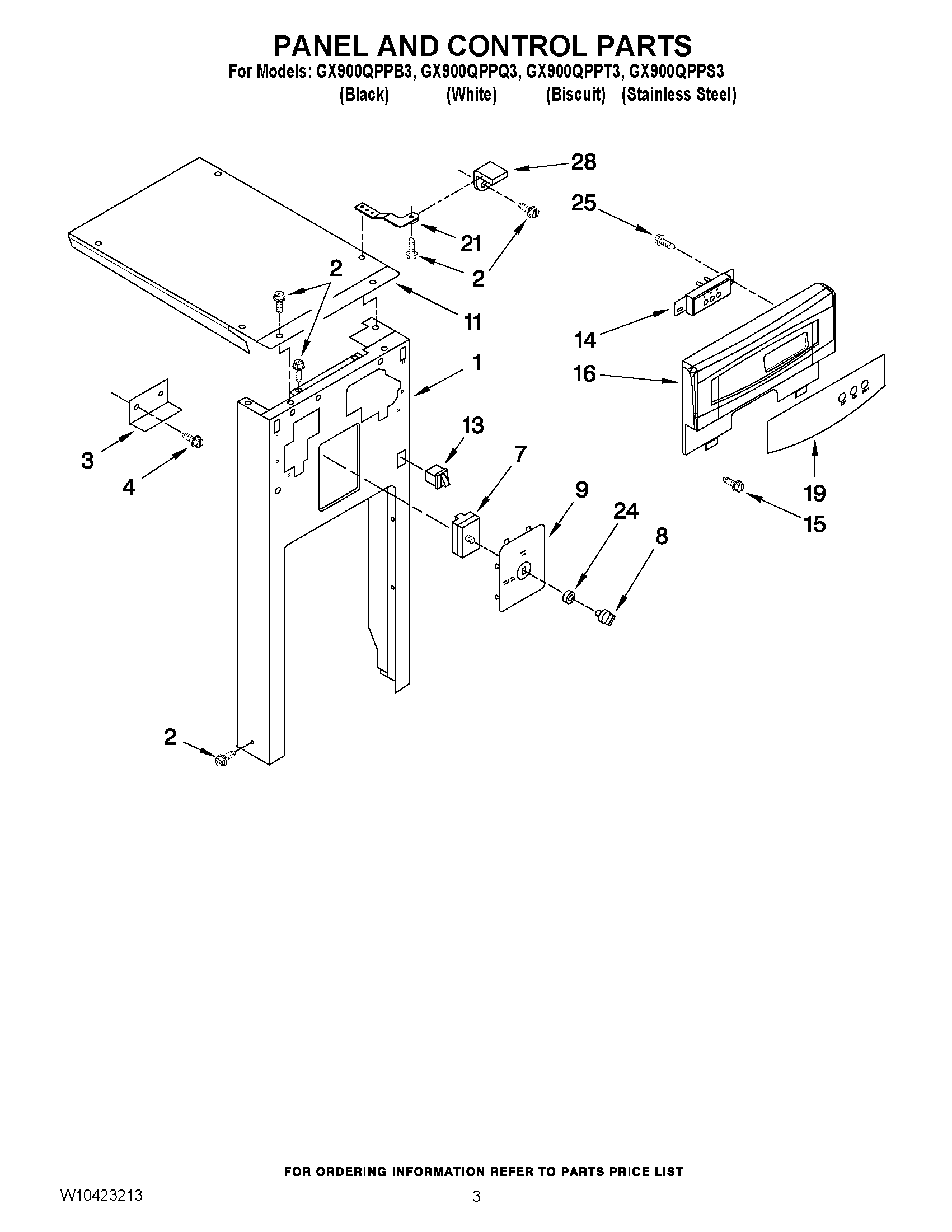

GX900QPPS3 03 – PANEL AND CONTROL PARTS

Products

Position	Product
1	9871575 Whirlpool Compactor Panel
1	9871073 Whirlpool Compactor Panel
1	Panel, Front Frame (Black)
2	WP489478 Whirlpool Refrigerator Screw
3	Bracket, Protector
4	WP488234 Whirlpool Air Conditioner Screw
7	777380 Whirlpool Compactor Switch
8	WP4155141 Whirlpool Compactor Switch Knob
9	9870356 Whirlpool Compactor Switch Plate
9	9871161 Whirlpool Compactor Switch Plate
11	Cover, Top
13	9871829 Whirlpool Trash Compactor Door Switch
13	WP4387911 Whirlpool Refrigerator Switch
14	W10813586 Whirlpool Off Switch
15	Screw
16	ESCUTCHEON
16	9872039W Whirlpool Compactor Escutcheon
19	W11050447 Whirlpool Compactor Insert
19	W11690155 Whirlpool Trash Compactor Insert
19	9872017T Whirlpool Compactor Insert
21	W11729437 Whirlpool Retaining Bracket
24	WP777383 Whirlpool Compactor Nut
25	SCREW
28	WP780239 Whirlpool Compactor Bracket Retainer
