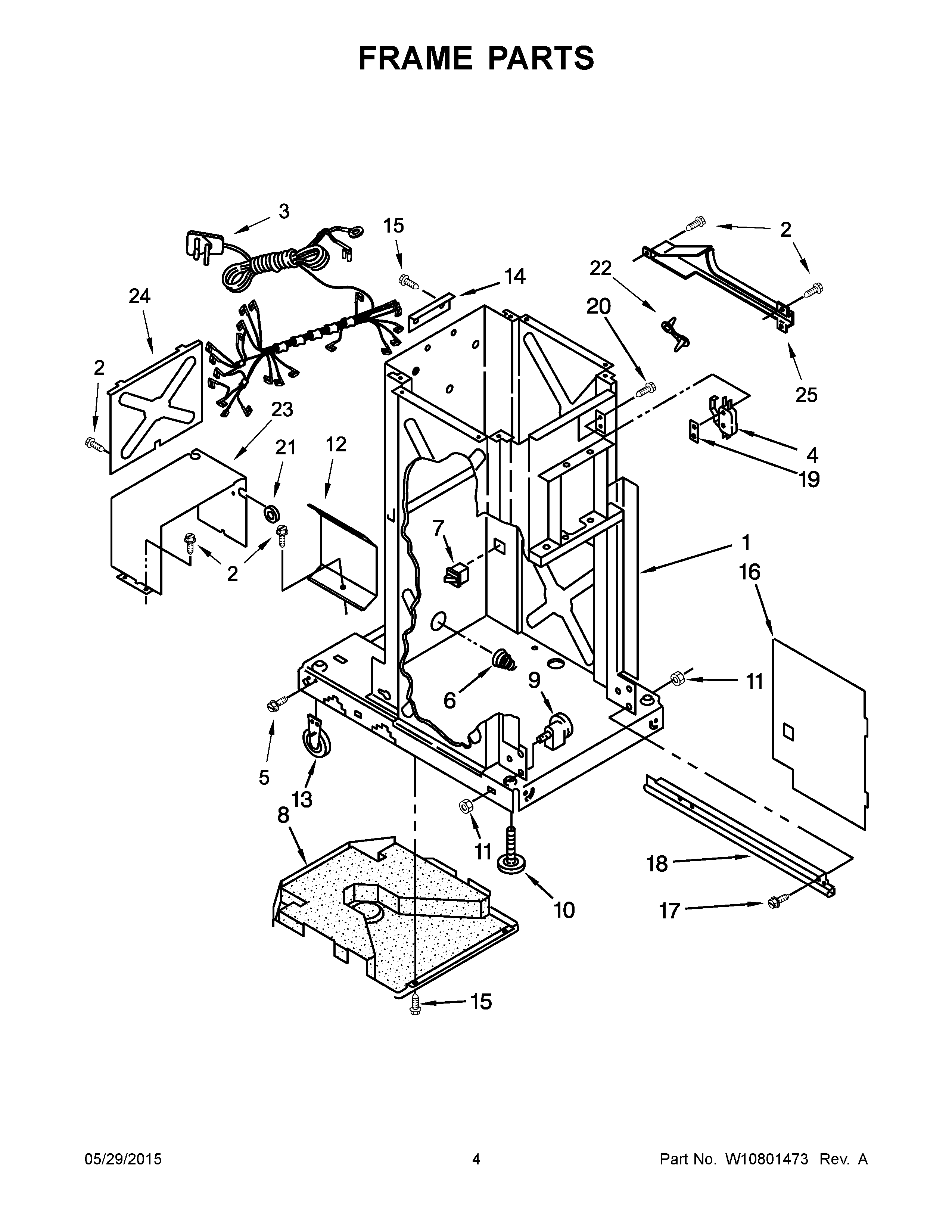

GX900QPPS5 03 – FRAME PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10139210 Whirlpool Screw
3W10279443 Whirlpool Compactor Wire Harness
4WP777811 Whirlpool Compactor Directional Switch
5WP3351614 Whirlpool Screw
6WP777180 Whirlpool Compactor Spring
7WP4387911 Whirlpool Refrigerator Switch
8WP780437 Whirlpool Compactor Bottom Pan
9882688 Whirlpool Compactor Bearing
10WPW10001130 Whirlpool Leveling Leg
11WP776356 Whirlpool Compactor Nut
129870867 Whirlpool Shield
13W11023674 Whirlpool Compactor Leveling Wheel
14Angle, Top Bracket
15WP489478 Whirlpool Refrigerator Screw
16WP9870444 Whirlpool Compactor Inner Panel
17WP486754 Whirlpool Compactor Screw
18SLIDE
18AWP9870975 Whirlpool Compactor Slide
19Plate, Nut
20777849 Whirlpool Compactor Screw
21Grommet, Motor Cover
22Clamp, Wire
23780434 Whirlpool Motor Cover
24Plate, Motor Cover
254149659 Whirlpool Shield Assembly
