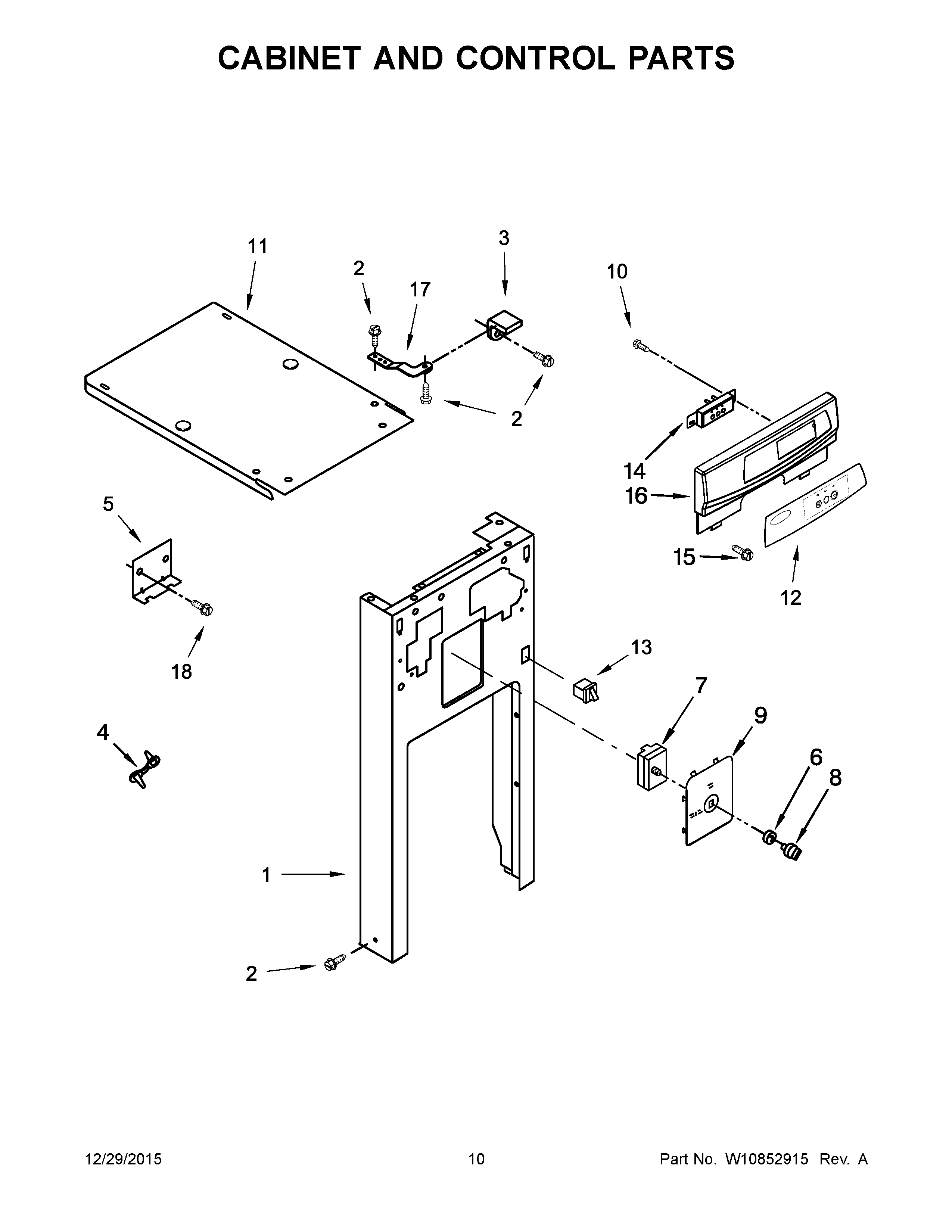

GX900QPPS6 06 – CABINET AND CONTROL PARTS

GX900QPPS6 06 – CABINET AND CONTROL PARTS

Written by

in

GX900QPPS6 06 – CABINET AND CONTROL PARTS

Products

PositionProduct
1Panel, Front Frame (Black)
2WP489478 Whirlpool Refrigerator Screw
3WP780239 Whirlpool Compactor Bracket Retainer
4Bushing, Cord
5Bracket, Protector
6WP777383 Whirlpool Compactor Nut
7777380 Whirlpool Compactor Switch
8WP4155141 Whirlpool Compactor Switch Knob
99871161 Whirlpool Compactor Switch Plate
10SCREW
11Cover, Top
12W11050447 Whirlpool Compactor Insert
139871829 Whirlpool Trash Compactor Door Switch
14W10813586 Whirlpool Off Switch
15Screw
16ESCUTCHEON
17W11729437 Whirlpool Retaining Bracket
18WPW10139210 Whirlpool Screw
