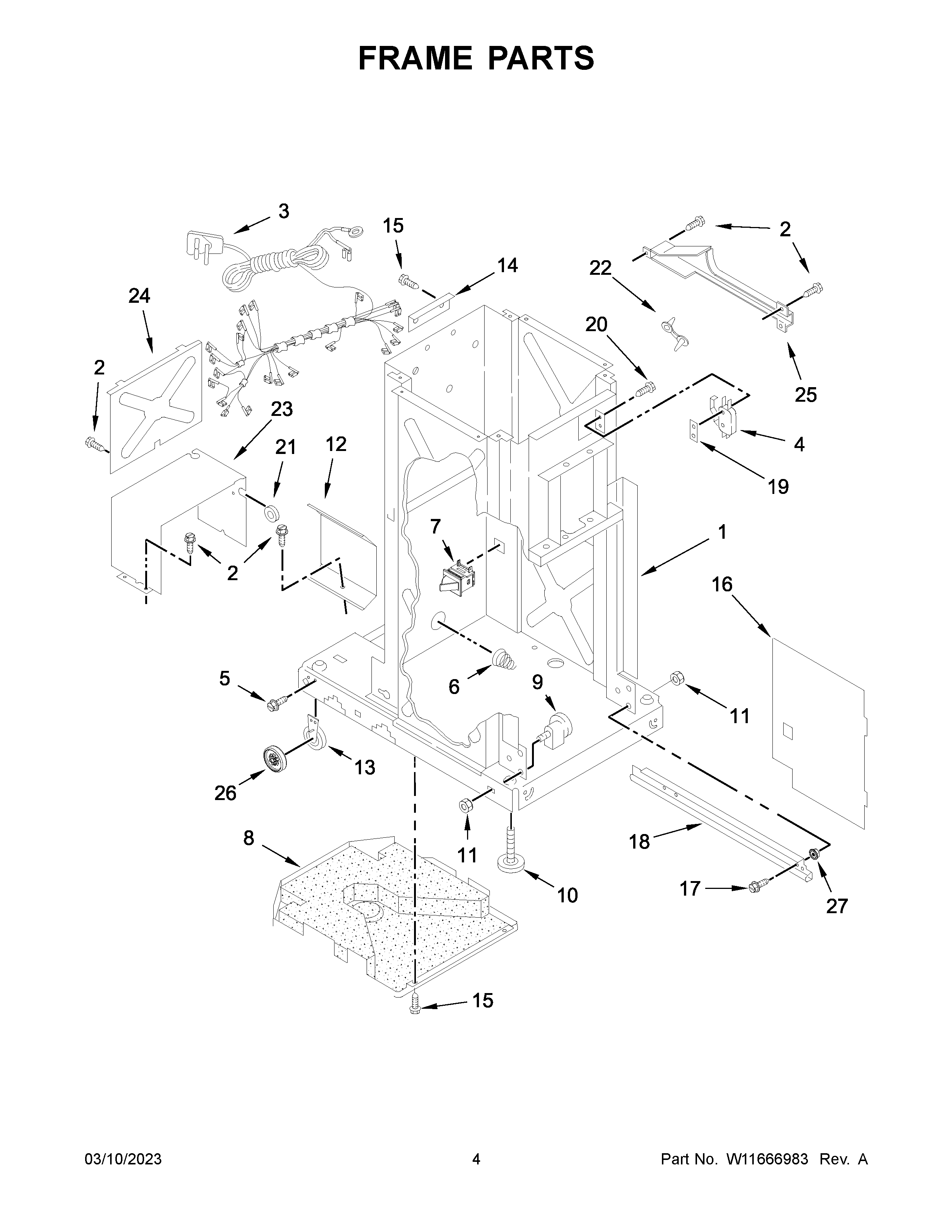

GX900QPPS7 03 – FRAME PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10139210 Whirlpool Screw
3	W10830517 Whirlpool Compactor Wire Harness
4	WP777811 Whirlpool Compactor Directional Switch
5	WP3351614 Whirlpool Screw
6	WP777180 Whirlpool Compactor Spring
7	W11243179 Whirlpool Compactor Safety Switch
8	WP780437 Whirlpool Compactor Bottom Pan
9	882688 Whirlpool Compactor Bearing
10	WPW10001130 Whirlpool Leveling Leg
11	WP776356 Whirlpool Compactor Nut
12	9870867 Whirlpool Shield
13	W11023674 Whirlpool Compactor Leveling Wheel
14	Angle, Top Bracket
15	WP489478 Whirlpool Refrigerator Screw
16	WP9870444 Whirlpool Compactor Inner Panel
17	WP486754 Whirlpool Compactor Screw
18A	WP9870975 Whirlpool Compactor Slide
18	SLIDE
19	Plate, Nut
20	777849 Whirlpool Compactor Screw
21	Grommet, Motor Cover
22	Clamp, Wire
23	780434 Whirlpool Motor Cover
24	Plate, Motor Cover
25	4149659 Whirlpool Shield Assembly
26	W11672206 Whirlpool Leveling Wheel
27	NUT
