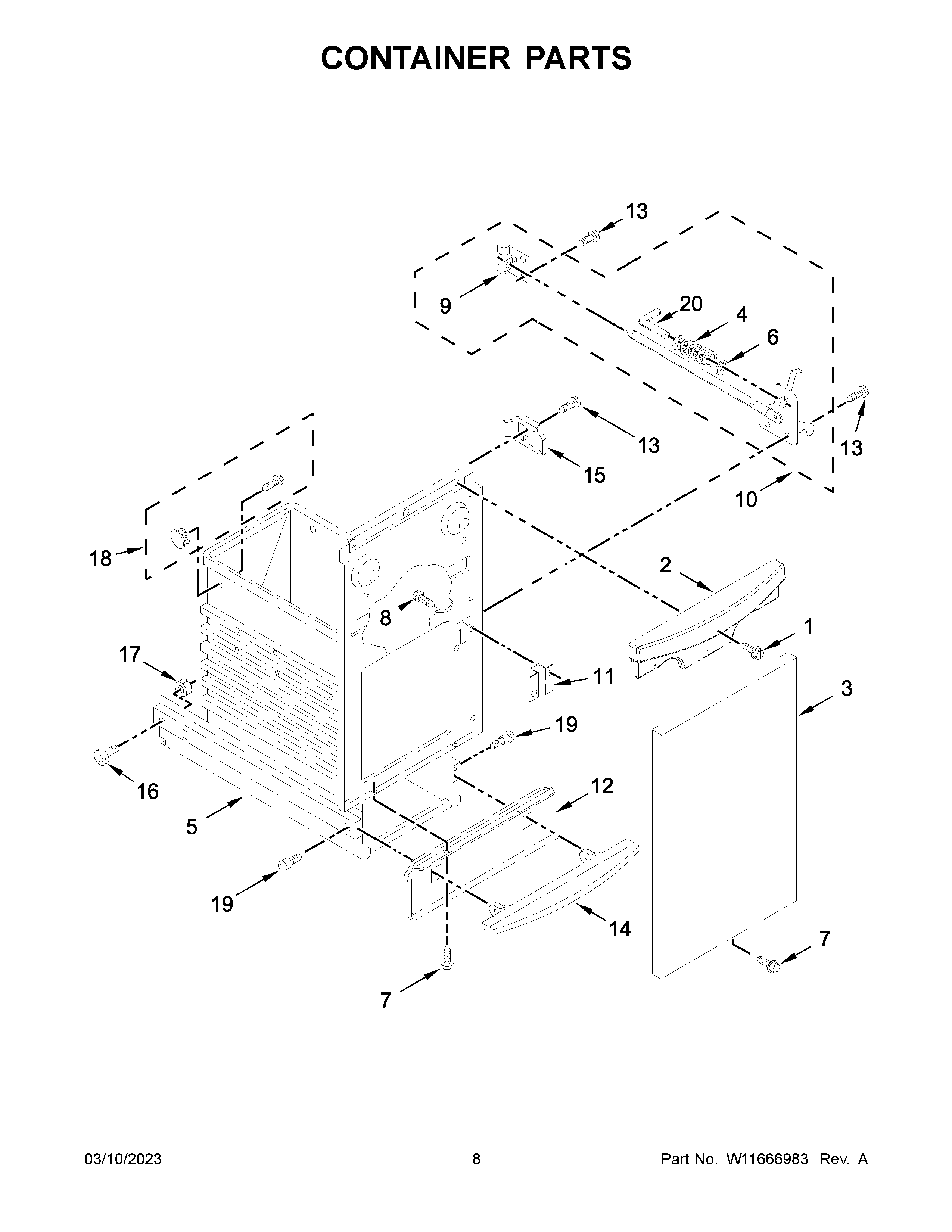

GX900QPPS7 05 – CONTAINER PARTS

Products

Position	Product
1	SCREW
2	WP9872040B Whirlpool Compactor Handle
3	CABINET (NOT A SERVICEABLE PART)
4	775736 Whirlpool Compactor Spring
5	WPW10451276 Whirlpool Compactor Container
6	Ring, “E“
7	WP3196175 Whirlpool Screw
8	WPW10139210 Whirlpool Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	775665 Whirlpool Compactor Plate Latch
12	WP777328 Whirlpool Compactor Guard
13	WP489478 Whirlpool Refrigerator Screw
14	W11679165 Whirlpool Foot Pedal
15	9871125 Whirlpool Compactor Actuator
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	RETAINER, BAG
19	WP780263 Whirlpool Compactor Screw
20	Pin
