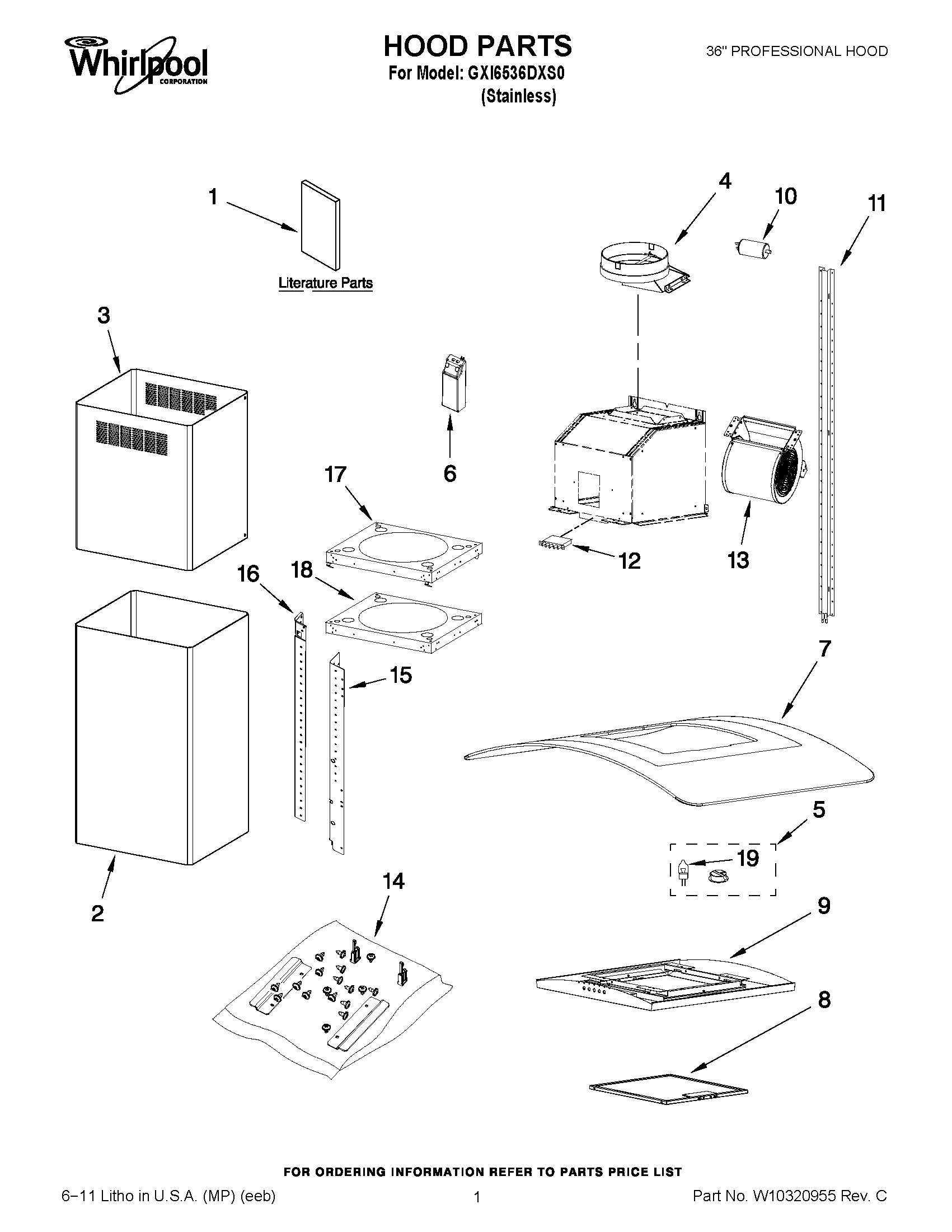

GXI6536DXS0 01 – HOOD PARTS

Products

Position	Product
NI	CHIMNEY EXTENSION KIT
NI	W11430929 Whirlpool Duct Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
1	USE & CARE GUIDE
2	W11321565 Whirlpool Chimney
3	W10351831 Whirlpool Chimney
4	DAMPER ASSEMBLY
5	WPW10298151 Whirlpool Light Bulb
6	W11186486 Whirlpool Transformer
7	GLASS (36")
8	W10169961A Whirlpool Grease Filter
9	ASSEMBLY, CASE
10	W10256657 Whirlpool Capacitor
11	WPW10293054 Whirlpool Support
12	W11577780 Whirlpool Motor Control
13	WPW10291577 Whirlpool Fan Motor
14	HARDWARE, INSTALL
15	W10351905 Whirlpool Support
16	W10293063 Whirlpool Support
17	W10297052 Whirlpool Mounting Bracket
18	W10293065 Whirlpool Support Bracket
