GXSF30V01 BODY PARTS

GXSF30V01 BODY PARTS

Written by

in

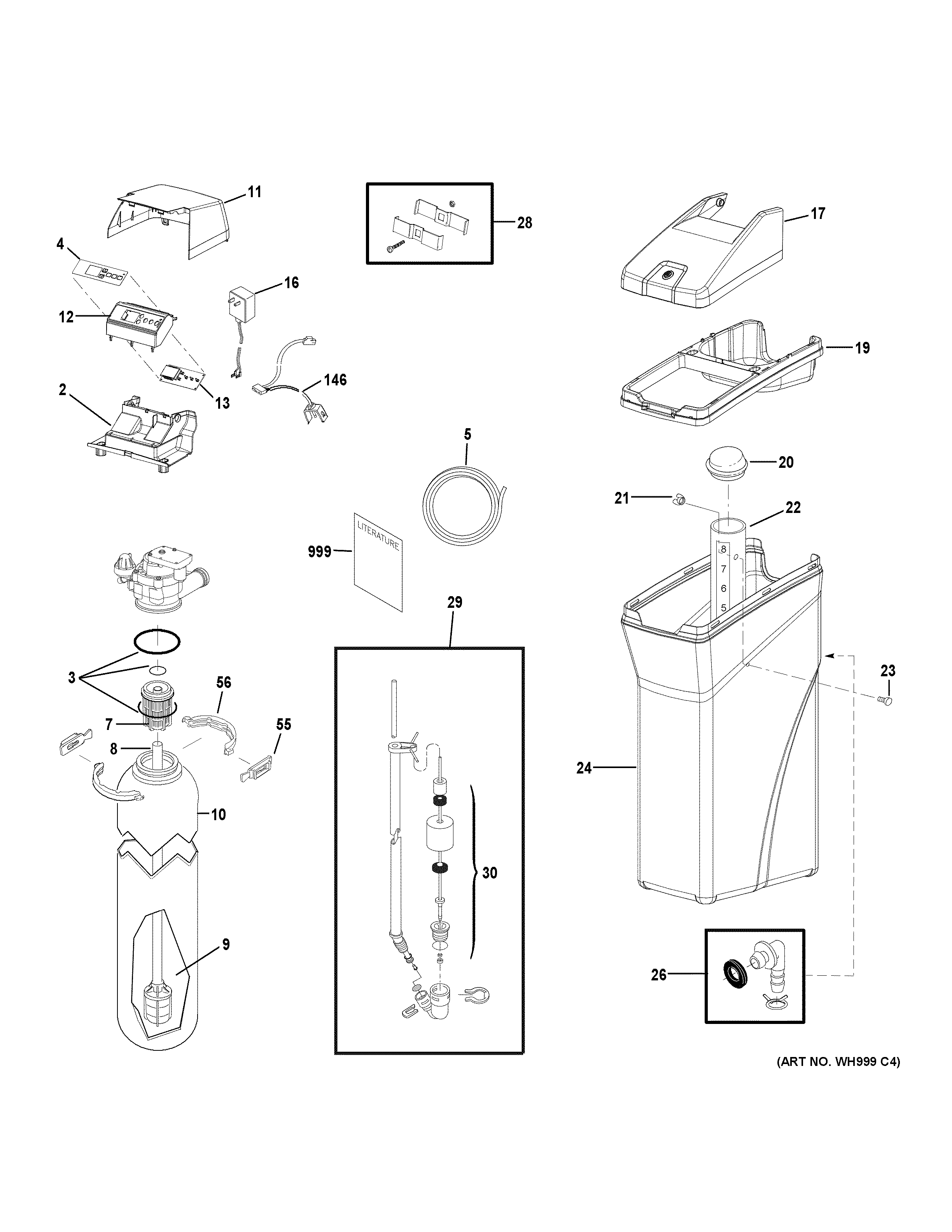

GXSF30V01 BODY PARTS

Products

PositionProduct
2WS31X10051 GE Back Cover
3WS35X10001 GE Seal Kit O-Ring
4WS34X10020 GE Faceplate Decal
5WS07X10004 GE 20FT Drain Hose
7WS14X10002 GE Top Distributor
8WS14X10001 GE Bottom Distributor
9WS01X10002 GE Resin 1 CU Fitting
10WS32X10030 GE Resin Tank
11COVER, TOP
12WS34X10021 GE Faceplate
13WS21X10053 GE Control
16WS26X10013 GE Transformer Power Cord
17WS31X10053 GE Cover with Label for Salt Hole
19WS33X10010 GE Rim
20WS31X10024 GE Brinewell Cover with Decal
21GEN WS02X10009
22WS34X10025 GE Dishwasher Brinewell with Decal
23SCREW KIT, BRINE TANK
24WS32X10031 GE Brine Tank
26WS22X10063 GE Overflow Adapter Kit
28WS35X10035 GE Ground Clamp Kit
29WS15X10077 GE Brine Valve Assembly
30WS35X10063 GE Float Stem and Guide
55WS28X10078 GE Water Softener/Water Filter System Tank Neck Clamp Kit
146WS28X10017 GE Harness Wire Sensor Assembly
999OWNERS MANUAL
999INSTALLATION KIT
