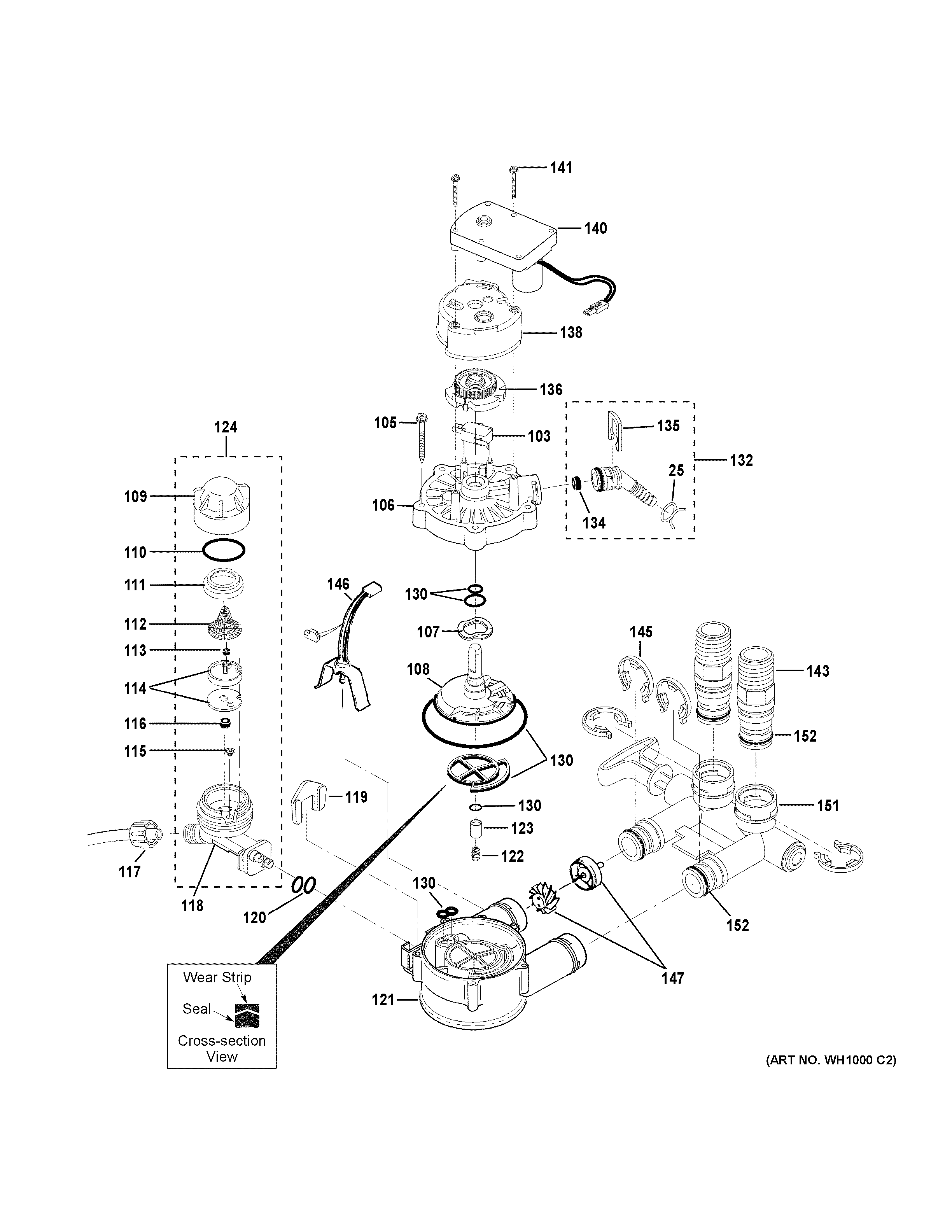

GXSF30V01 PUMP

GXSF30V01 PUMP

Written by

in

GXSF30V01 PUMP

Products

PositionProduct
25WS22X10063 GE Overflow Adapter Kit
103WS21X10003 GE Switch
105GEN WS02X10014
106COVER VALVE
106WS01X10055 GE Valve Cover Assembly
107GEN WS03X10010
108WS26X10002 GE Rotor and Disc
109GEN WS19X10010
110WS03X10011 GE O-Ring Net Seal 1-1X1/4
111GEN WS19X10005
112WS03X10013 GE Screen
113WS22X10036 GE Flow Plug 15 GPM
114GEN WS08X10008
115WS03X10073 GE Screen Cone
116WS22X10021 GE Flow 0.3 GPM
117WS03X10017 GE Nut Ferrule
118WS15X10034 GE Venturi Nozzle Body
119GEN WS03X10018
120WS03X10019 GE O-Ring Seal 1/4" x 3/8"
121WS15X10010 GE Valve Body Assembly
122GEN WS03X10020
123WS22X10022 GE Drain Seal
124WS15X10046 GE Vent Assembly Nozzle
130WS35X10005 GE Seal Kit
132WS22X10065 GE Drain Hose Adapter Kit
132WS22X10064 GE Drain Hose Adapter Kit
134GEN WS03X10022
135WS15X10077 GE Brine Valve Assembly
136MOTOR CAM GEAR MOUNT ASSEMBLY
138MOTOR MOUNT
141SCREW #6-19 X 1-3/8
143WS60X10013 GE Net Adapter NPT THD STD VA
145WS60X10004 GE Clip
146WS28X10017 GE Harness Wire Sensor Assembly
147GEN WS19X10006
151WS15X10053 GE Bypass Valve Assembly
152WS03X10025 GE O-Ring 15/16" X 1-13/16"
