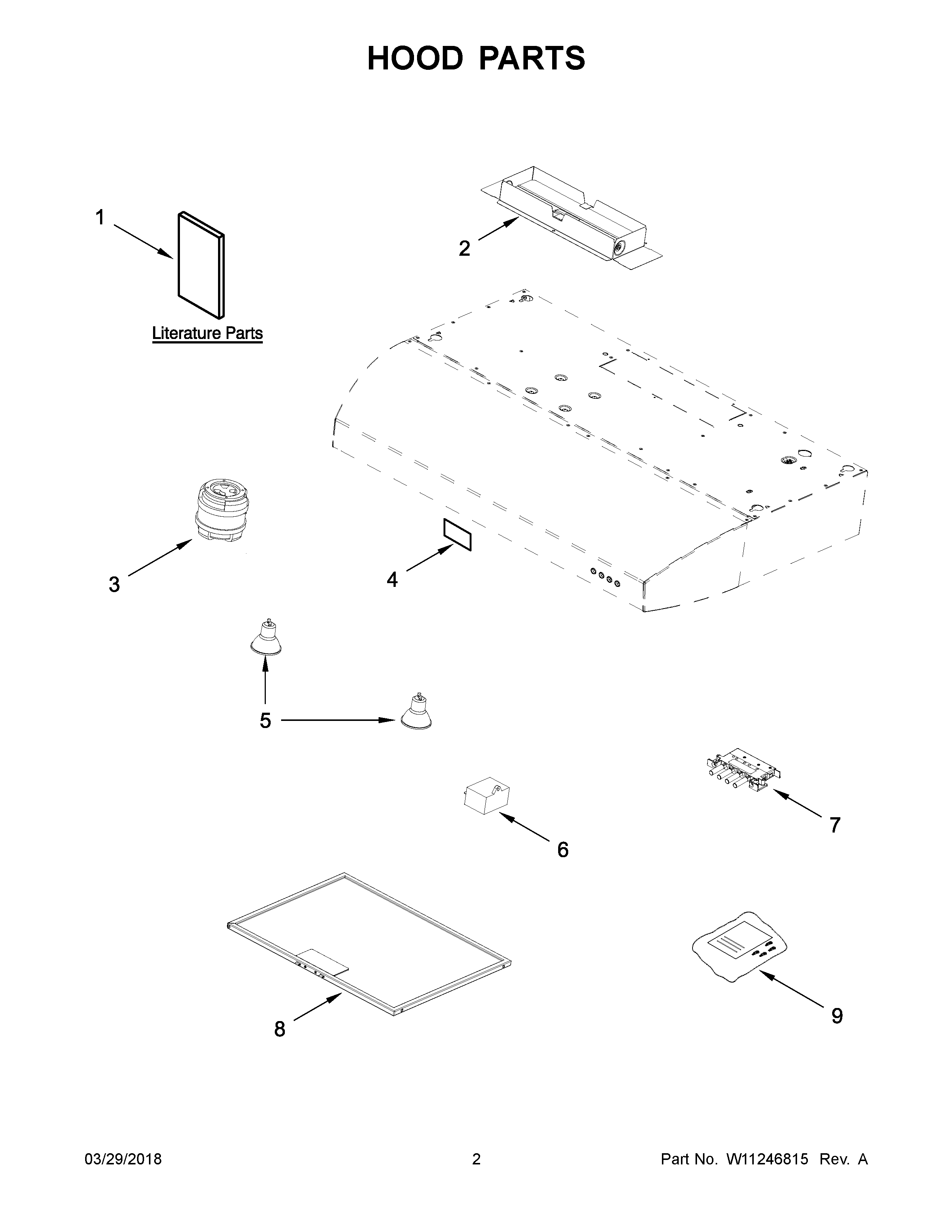

GXU7130DXS2 02 – HOOD PARTS

GXU7130DXS2 02 – HOOD PARTS

Written by

in

GXU7130DXS2 02 – HOOD PARTS

Products

PositionProduct
1USE & CARE GUIDE
2WPW10291572 Whirlpool Hood Damper Assembly
3ASSEMBLY, BLOWER MOTOR
4W11178521 Whirlpool Dishwasher Nameplate
5W11388881 Whirlpool Light Assembly
6AW11245981 Whirlpool Capacitor
6W11715950 Whirlpool Capacitor Assembly
6BCAPACITOR (12 MF)
7W11245985 Whirlpool Push Button Switch
8W11246395 Whirlpool Filter
9HARDWARE, INSTALLATION
