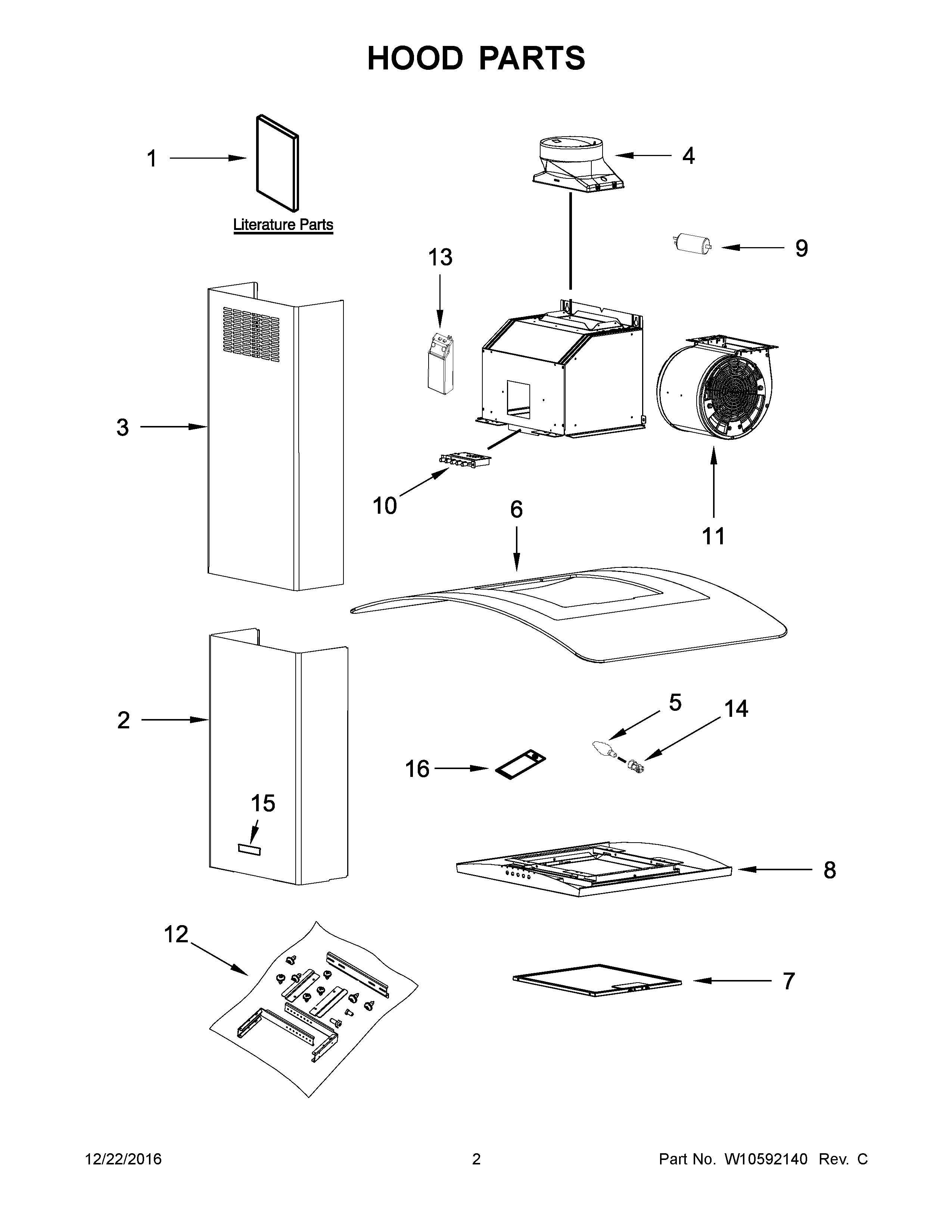

GXW6536DXS2 02 – HOOD PARTS

Products

Position	Product
NI	W10294735 Whirlpool Range Chimney Exhaust Duct
NI	W11430939 Whirlpool Duct Kit
NI	W10446915 Whirlpool Range Hood Air Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
1	USE & CARE GUIDE
2	W11590865 Whirlpool Chimney
4	W10847841 Whirlpool Range Hood Vent Damper
5	WP8190806 Whirlpool Appliance Light Bulb
6A	WPW10313844 Whirlpool Glass Panel
6	WPW10313843 Whirlpool Glass
7	W10169961A Whirlpool Grease Filter
8	ASSEMBLY, GREASE
9	W10256657 Whirlpool Capacitor
10	WPW10313838 Whirlpool Motor Control
11	WPW10291577 Whirlpool Fan Motor
12	WPW10576677 Whirlpool Hardware
13	W11186486 Whirlpool Transformer
14	8190797 Whirlpool Socket
15	W11178521 Whirlpool Dishwasher Nameplate
16	COVER, LIGHT
