GXW7230DAS1 02 – HOOD PARTS
Written by
in

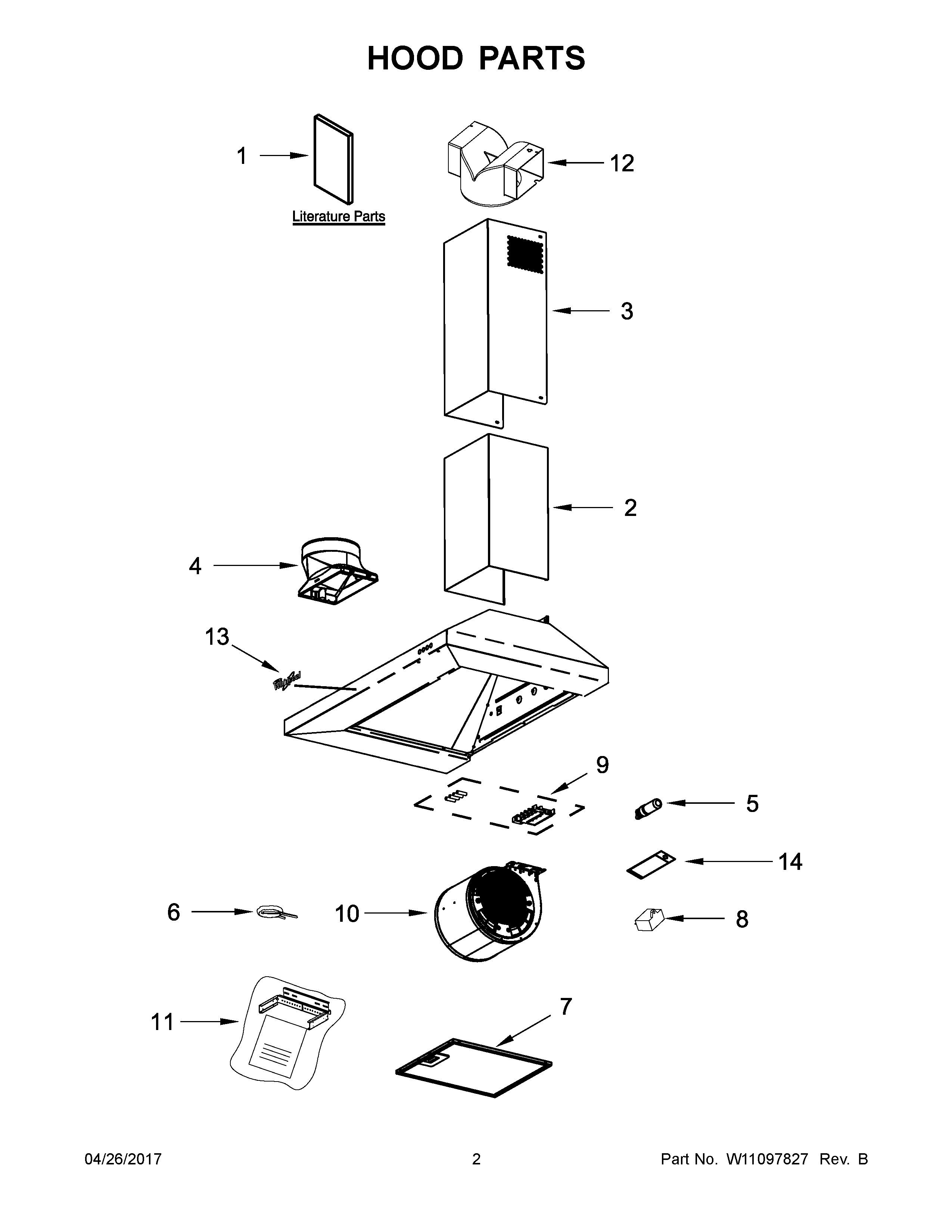

GXW7230DAS1 02 – HOOD PARTS
Products
Position
Product
NI
W11430940 Whirlpool Vent Kit Recirculating
NI
W10412939 Whirlpool Charcoal Filter Pack
NI
W10337357 Whirlpool Range Hood Chimney
1
USE AND CARE GUIDE
2
W11417192 Whirlpool Duct Assembly
4
W10847841 Whirlpool Range Hood Vent Damper
5
WP8190806 Whirlpool Appliance Light Bulb
6
W10427011 Whirlpool Filter
7
W10169961A Whirlpool Grease Filter
8
W11328673 Whirlpool Capacitor
9
WPW10350884 Whirlpool PB Switch
10
ASSEMBLY, FAN
11
W10895119 Whirlpool Hardware
12
W10427014 Whirlpool Air Duct Assembly
13
W11178521 Whirlpool Dishwasher Nameplate
14
COVER, LIGHT
←
LCR7244DZ2 08 – MISCELLANEOUS, LIT/OPTIONAL
DP8700XYN0 05 – PUMP AND MOTOR
→
