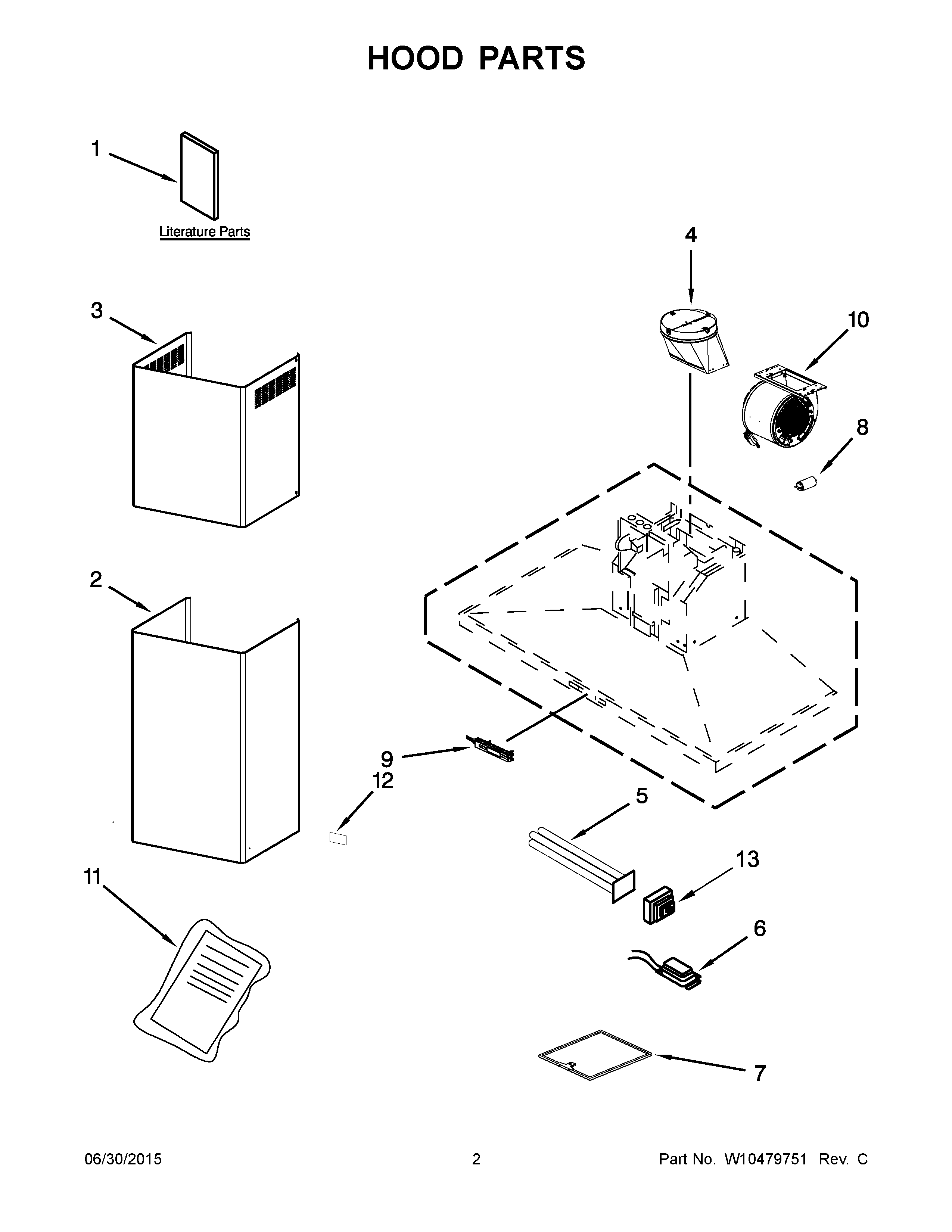

GXW7330DXS1 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11430940 Whirlpool Vent Kit Recirculating
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10337357 Whirlpool Range Hood Chimney
1	USE & CARE GUIDE
2	W11417192 Whirlpool Duct Assembly
4	WPW10313841 Whirlpool Hood Damper
5	BULB, LIGHT
6	W10350895 Whirlpool Ballast Lamp
7	W10169961A Whirlpool Grease Filter
8B	W10350868 Whirlpool Capacitor
8	8186677 Whirlpool Capacitor
8A	W10350867 Whirlpool Capacitor
9	W10819427 Whirlpool Power Button Switch
10	WPW10350820 Whirlpool Blower Fan
11	W11245986 Whirlpool Hardware
12	W11178521 Whirlpool Dishwasher Nameplate
13	W10515801 Whirlpool Socket
