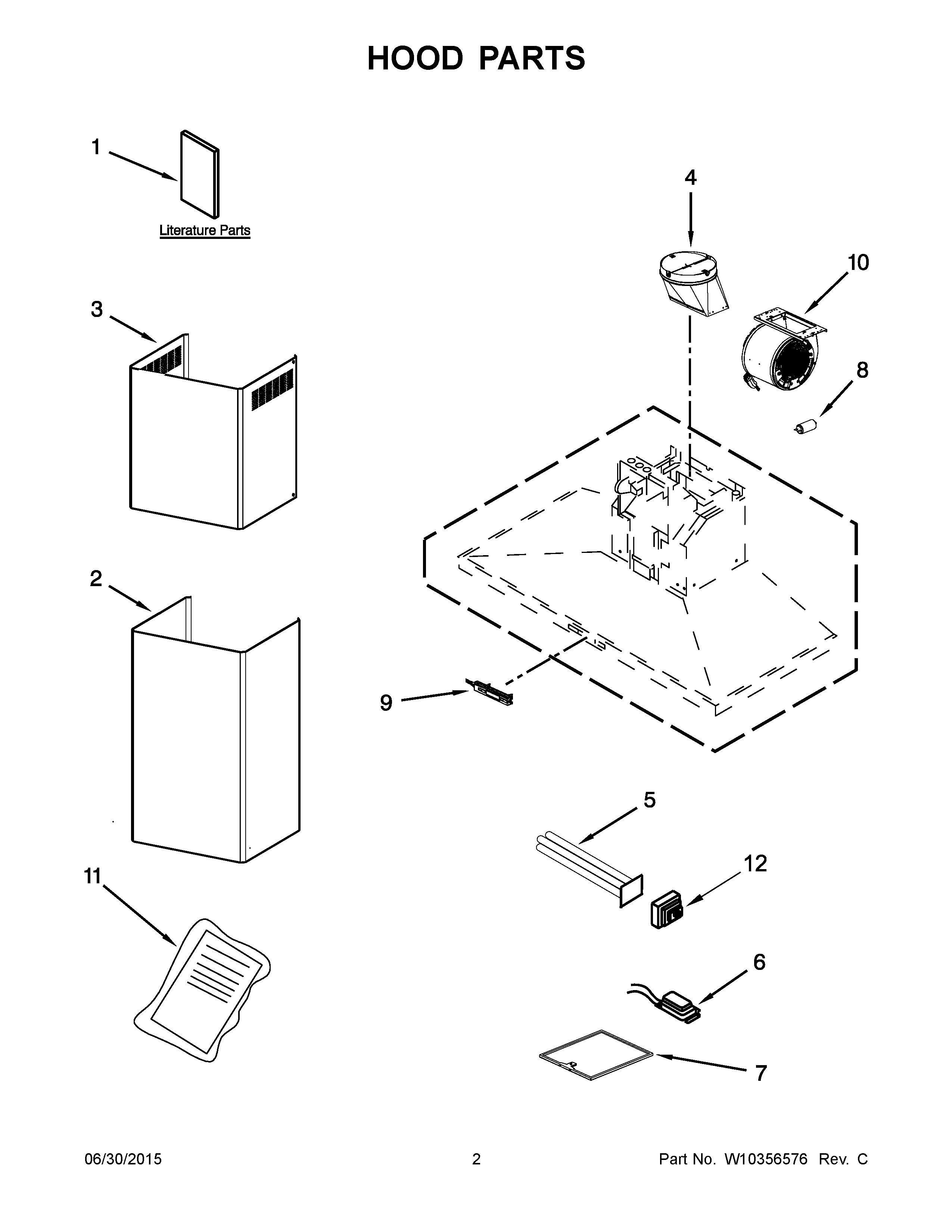

GXW7336DXS0 02 – HOOD PARTS

GXW7336DXS0 02 – HOOD PARTS

Written by

in

GXW7336DXS0 02 – HOOD PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11417192 Whirlpool Duct Assembly
4WPW10313841 Whirlpool Hood Damper
5BULB, LIGHT
6W10350895 Whirlpool Ballast Lamp
7W10169961A Whirlpool Grease Filter
88186677 Whirlpool Capacitor
8AW10350867 Whirlpool Capacitor
8BW10350868 Whirlpool Capacitor
9W10819427 Whirlpool Power Button Switch
10WPW10350820 Whirlpool Blower Fan
11W11245986 Whirlpool Hardware
12W10515801 Whirlpool Socket
