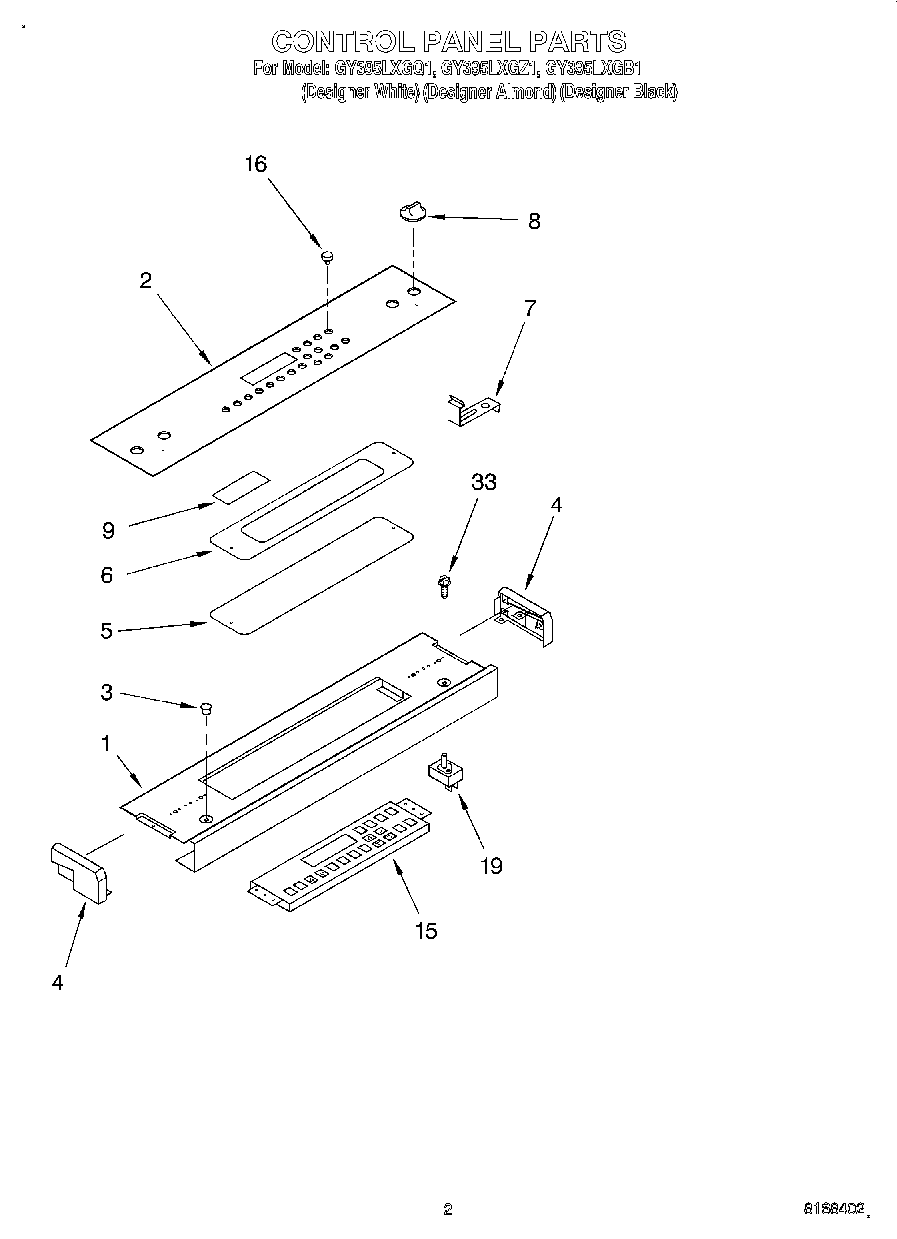

GY395LXGB1 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control (Black)
1Panel, Control (Almond)
1Panel, Control
2Glass-Console (White)
2Glass-Console (Almond)
2Glass-Console (Black)
3Len`s Indicator (4)
4End Cap Left (Black)
4End Cap Left (Almond)
4814562 Whirlpool Oven Endcap Panel (Left & Right)
4(End Cap Right) (Black)
4(End Cap Right) (Almond)
5Gasket, Cover
6Cover, Control
7WP4159387 Whirlpool Compactor Screw
7Clip, Glass (2)
8Knobs, Control (4) (Almond)
8Knobs, Control (4) (Black)
8WP9752405FW Whirlpool Knob
9Label-WPSI Control
15Screw (4) 10 x 3/8
15Control, Range
16Knob, Timer (18) (Almond)
16Knob, Timer (18) (White)
16Knob, Timer (18) (Black)
19WP9750643 Whirlpool Infinite Switch
19WP9750646 Whirlpool Infinite Switch
33WP3400882 Whirlpool Screw
